Quick Details
-
Weight (KG):
-
600
-
Voltage:
-
220/380v
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BOSHI POWDER FLOUR PACKING MACHINE
-
Dimension(L*W*H):
-
L 1320 * W 920 * H 1392 mm
-
Model:
-
BS-420P
-
Film width:
-
Max.420mm
-
Film thickness:
-
0.03-0.1mm
-
Bag width:
-
50-200 mm
-
Bag length:
-
50-300 mm
-
Packing speed:
-
10-70 bags/ min
-
Type of sealing:
-
Pillow bag or gusset bag or quad side seal
-
Packing material:
-
OPP/CPP, OPP/CE,PET/PE etc.
-
Air consumption:
-
0.65 mpa
-
Gas consumption:
-
0.3 cubic meter/ min
Quick Details
-
Function:
-
FILLING, Wrapping, Labeling, Sealing, date printing
-
Packaging Type:
-
Stand-up Pouch, Bags, Film, Foil, Pouch
-
Packaging Material:
-
Plastic, Paper
-
Weight (KG):
-
600
-
Voltage:
-
220/380v
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BOSHI POWDER FLOUR PACKING MACHINE
-
Dimension(L*W*H):
-
L 1320 * W 920 * H 1392 mm
-
Model:
-
BS-420P
-
Film width:
-
Max.420mm
-
Film thickness:
-
0.03-0.1mm
-
Bag width:
-
50-200 mm
-
Bag length:
-
50-300 mm
-
Packing speed:
-
10-70 bags/ min
-
Type of sealing:
-
Pillow bag or gusset bag or quad side seal
-
Packing material:
-
OPP/CPP, OPP/CE,PET/PE etc.
-
Air consumption:
-
0.65 mpa
-
Gas consumption:
-
0.3 cubic meter/ min

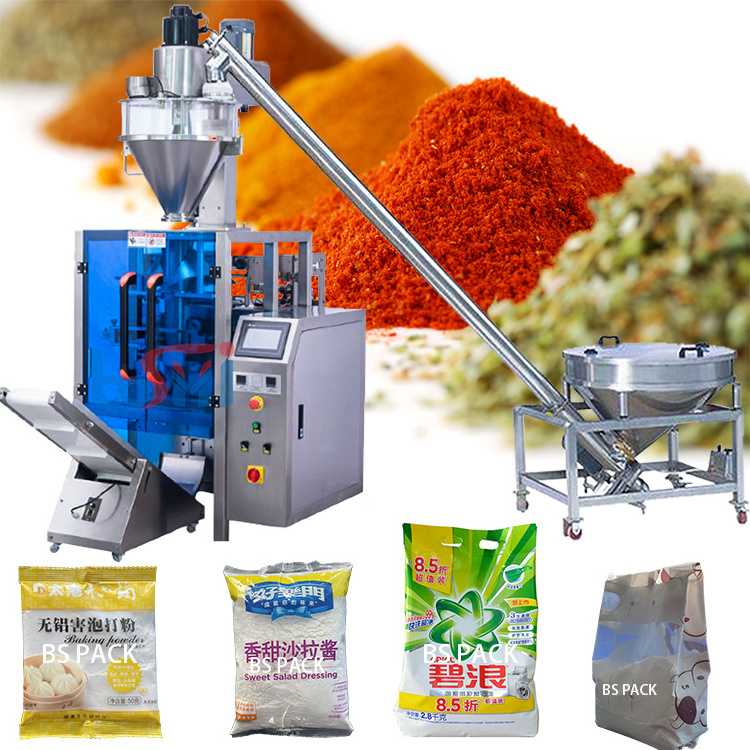

Applications
:
Suitable for filling and packing varieties of powders, such as spice, flour, milk powder, coffee powder, fruit powder,cocoa powder, grain powder, wheat flour, vitamin powder, chemical powder, paint powder,and etc.
Whole machine main including 3 parts:
1) Powder feeding machine
2) Auger filler
3) Packing machine host
4) Finished products conveyor( If needed)
Main Features:
2) Auger filler
3) Packing machine host
4) Finished products conveyor( If needed)
1)Simple structure in linear type ,easy in installation and maintain.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automation and intelligent ,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Technical Parameters:
|
Model
|
BS-420P
|
|
|
Film width
|
Max.420mm
|
|
|
Film thickness
|
0.03-0.1mm
|
|
|
Bag width
|
50-200 mm
|
|
|
Bag length
|
50-300 mm
|
|
|
Packing speed
|
10-70 bags/ min
|
|
|
Type of sealing
|
Pillow bag,3 or 4 side seal and gusset bag
|
|
|
Packing material
|
OPP/CPP, OPP/CE,PET/PE etc.
|
|
|
Air consumption
|
0.65 mpa
|
|
|
Gas consumption
|
0.3 cubic meter/ min
|
|
|
Machine dimensions
|
1080*1300*1400 mm
|
|
|
Machine weight
|
600 kg
|
|
|
Auger filler
|
|
|
|
Weighting and filling system
|
Auger screw
|
|
|
Weighting range
|
10-5000g
(Different product have different weighting range ) |
|
|
Accuracy:
|
Volume<100g.Bias:0.5-1gVolume:100-5000g.Bias:0.5%-1%
|
|
|
Filling speed:
|
10-60 bags/min
|
|
|
Filler hoper volume
|
50 L
|
|
|
Total power:
|
1.5 kw
|
|
|
Weight
|
200KG
|
|
Standard Features:
1. The machine use high precision servo film transport system, PLC Program Control, developed touchable Human-machine Interface of Advanced Automatic Positioning, Photoelectric Tracking, Digital Temperature Control,etc.
2. Operation is more simple, perfect. It is the first choice of food packaging industry to Improve the production efficiency,reduce Labor Intensity, improve the grade of packaging equipment.
3. Bag end + middle back sealing temperature control independently, suitable for pure PE, CPP/OPP, BOPP/CPP, PE/polyethylene, PE/aluminum plating, pet/PE, PP, and other heat-sealing packaging materials.
4. It completes the whole procedure of filling, measuring, bagging, date printing, charging(exhausting), product out-putting automatically.
5. High precision, high efficiency without crash the materials.
6. Packaging style diversified, back sealing, gusset bag, string bags, punching, etc.
7. Work environment quiet, low noise, saving energy.
8. A complete set of equipment is economical.
2. Operation is more simple, perfect. It is the first choice of food packaging industry to Improve the production efficiency,reduce Labor Intensity, improve the grade of packaging equipment.
3. Bag end + middle back sealing temperature control independently, suitable for pure PE, CPP/OPP, BOPP/CPP, PE/polyethylene, PE/aluminum plating, pet/PE, PP, and other heat-sealing packaging materials.
4. It completes the whole procedure of filling, measuring, bagging, date printing, charging(exhausting), product out-putting automatically.
5. High precision, high efficiency without crash the materials.
6. Packaging style diversified, back sealing, gusset bag, string bags, punching, etc.
7. Work environment quiet, low noise, saving energy.
8. A complete set of equipment is economical.
For
smaller mini powde
r
packing machine ,you may like follow machine BS-320P
Click
the picture, you will see it's details----
420P machine main parts:
Automatic feeding +weighting +filling +sealing together
.
Master control circuit adopts imported PLC microcomputer with man-machine interface and frequency control,making setting parameters (to adjust bag length and width, packing speed,cutting position) convenient and quick and operation intuitive.
Master control circuit adopts imported PLC microcomputer with man-machine interface and frequency control,making setting parameters (to adjust bag length and width, packing speed,cutting position) convenient and quick and operation intuitive.
Full implement the humanizes automatic operation
Packing machine touch screen
English and Chinese screen display
Self-development program Level sensor to feed automatically，Stable function English and Chinese screen display Simple operation
PLC computer system Easy adjustment
Self-development program Level sensor to feed automatically，Stable function English and Chinese screen display Simple operation
PLC computer system Easy adjustment
Install film structure
Use motor delivery the film The linkage film rolling shaft coordinates the
pulling film process, which is suitable for more
materials film rollers and can smoother film running
pulling film process, which is suitable for more
materials film rollers and can smoother film running
Open auger filler hopper
Material: Food Grade 304 Stainless Steel
Feature:
Feature:
1.Suitable to package free-flowing or poor-flowing powder.
2.Filling the powder use servo motors, with high speed, high precision, long life etc.
3.For flowable materials together with the corresponding discharge port o valve to prevent material off.
2.Filling the powder use servo motors, with high speed, high precision, long life etc.
3.For flowable materials together with the corresponding discharge port o valve to prevent material off.
Weighting auger screw
For small grams ,middle gram and big grams, we equip different auger screw.
High accuracy to weight the powder.
BOSHI machine control the grams by weighting screw turns
Powder feeding machine
Suitable to delivery many types powders
Use motor control, stable feeding powder.
Big auger screw to rotate powder to the auger filler
Can be connected powder packing machine to achieve fully automatic working.
Bag forming tubes
Lapel Bag maker
The bag shape is formed by folding the rolled film through the metal panels on both sides.
We use solid bag forming tubes to form the bag. One bag former can make one bag width, so if you have 2 bag width , need to use two bag forming tubes.
The bag shape is formed by folding the rolled film through the metal panels on both sides.
We use solid bag forming tubes to form the bag. One bag former can make one bag width, so if you have 2 bag width , need to use two bag forming tubes.
Mid-sealing structure
The slot-type central positioning of the bag maker,will not let shake to affect pulling film deviation.
Double pulling Film
Structure High quality grinding wheel,
Pull evenly,more beautiful packaging
Structure High quality grinding wheel,
Pull evenly,more beautiful packaging
Date printer
Support ribbon roll date printer
*Can print dates and letters
*Each line can print 15letters
*One ribbon roll have 100 metes,can print 20000 bags
Support ribbon roll date printer
*Can print dates and letters
*Each line can print 15letters
*One ribbon roll have 100 metes,can print 20000 bags
Cutter sealing device
Pull rod type sealing structure,stable sealing and make packing speed more fast.Constant temperature heat sealing cutter is used to seal the front and rear ends of packaging products. Angle inserting device is selected to make the bag beautiful and avoid curling at the sealing position.
CE CERTIFICATES:
About Us:
FOSHAN BOSHI PACKING MACHINERY CO., LTD.
Located in Foshan city, next to Guangzhou city, is a professional manufacturer of series
packing machine with morn than 13 years experience. Main produce packing machine as follows:
Pillow packing machine (For food, commodities, hardware , toys, soft, loose, solid products packing);
Granule packing machine (Multi-head weigher packing machine - For dry food, such as nuts, chips, candy .-For frozen food, such as dumpling, chicken leg, fish, pork. -For hardware screws. For vegetables,small fruits ,etc)
Line weigher /Volumetric cup packing machine ( For small granules like sugar, salt, rice,beans,nuts, grain )
Powder packing machine ( For coffee powder, milk powder, instant powder,flour, and etc.);
Liquid packing machine ( For sauce, jam, honey, juice, paste, jelly, oil, shampoo, and etc.);
Pillow packing machine (For food, commodities, hardware , toys, soft, loose, solid products packing);
Granule packing machine (Multi-head weigher packing machine - For dry food, such as nuts, chips, candy .-For frozen food, such as dumpling, chicken leg, fish, pork. -For hardware screws. For vegetables,small fruits ,etc)
Line weigher /Volumetric cup packing machine ( For small granules like sugar, salt, rice,beans,nuts, grain )
Powder packing machine ( For coffee powder, milk powder, instant powder,flour, and etc.);
Liquid packing machine ( For sauce, jam, honey, juice, paste, jelly, oil, shampoo, and etc.);
Extruder and packing machine
(For play dough, clay, flour dough, light dough, gel, energy bar ,etc.soft materials)
Cling film packing machine (For vegetable,fruit,meat, fish);
Shrink packing machine (For bottles, toys, books, plate, CDS, foods , commodities, and any other solid products)
Cling film packing machine (For vegetable,fruit,meat, fish);
Shrink packing machine (For bottles, toys, books, plate, CDS, foods , commodities, and any other solid products)
FAQ:
1.Why we choose you?
* Professional team 24 hours provide service for you
*13 months warranty,any main machine parts can be replacement
* Oversea service is provided
2.What is your payment term?
We support TT,Credit Card,Western Union,etc.
3.Are you manufacturer or trading company?
We are 100% real packing machine manufacturer.Any time online video will be supported.
4.You have engineer?can you design machine according my special product?
My boss is our biggest engineer with 15 years packing machine
experience.If needed,we can arrange online video with you and our engineer.That will be more efficient communication.
5.How to check your machine quality after machine finished?
Machine photos and test videos will be provided to before your balance. Also welcome you and third party to detect our machine.
6.How can I trust you will send machine to us after full payment?
We are a real factory with business license and certificate. Alibaba already let staff to inspect our factory.You pay via Alibaba trade assurance service,if we receive your payment,didn’t sent machine to you.Alibaba will off our online store and sent all your money back.
