Automatic Aluminum Beverage Cans Making Machine Juice can filling Machine production Line
Automatic Aluminum Beverage Cans Making Machine Juice can filling Machine production Line
Automatic Aluminum Beverage Cans Making Machine Juice can filling Machine production Line
Automatic Aluminum Beverage Cans Making Machine Juice can filling Machine production Line
Automatic Aluminum Beverage Cans Making Machine Juice can filling Machine production Line
Automatic Aluminum Beverage Cans Making Machine Juice can filling Machine production Line
Automatic Aluminum Beverage Cans Making Machine Juice can filling Machine production Line
Automatic Aluminum Beverage Cans Making Machine Juice can filling Machine production Line

Automatic Aluminum Beverage Cans Making Machine Juice can filling Machine production Line

FOB Reference Price: Get Latest Price
≥1 Sets
US $9000
≥4 Sets
US $8000
≥5 Sets
US $7000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Filling Accuracy:
±2mm
Voltage:
380V 50Hz 3P
Place of Origin:
Jiangsu, China
Brand Name:
Grandee
Dimension(L*W*H):
1200*1200*1680mm
Weight:
400 KG
Product name:
Soda can Filling Sealing Machine
Material:
Stainless Steel 304/316
Filling:
Carbonation Pressure Filling Type
Can material:
Tin Can or aluminum can
Function:
Can washing filling capping process
Capacity:
30cans/min
Filling temperature:
3-8degree
Can height:
80-160mm
Bottle size:
220ml-750ml
Control:
Button

Quick Details

Machinery Capacity:
2000BPH, 1000BPH
Packaging Material:
Metal
Filling Material:
Beer, Juice, carbonated or soda water
Filling Accuracy:
±2mm
Voltage:
380V 50Hz 3P
Place of Origin:
Jiangsu, China
Brand Name:
Grandee
Dimension(L*W*H):
1200*1200*1680mm
Weight:
400 KG
Product name:
Soda can Filling Sealing Machine
Material:
Stainless Steel 304/316
Filling:
Carbonation Pressure Filling Type
Can material:
Tin Can or aluminum can
Function:
Can washing filling capping process
Capacity:
30cans/min
Filling temperature:
3-8degree
Can height:
80-160mm
Bottle size:
220ml-750ml
Control:
Button

GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.

Products Description

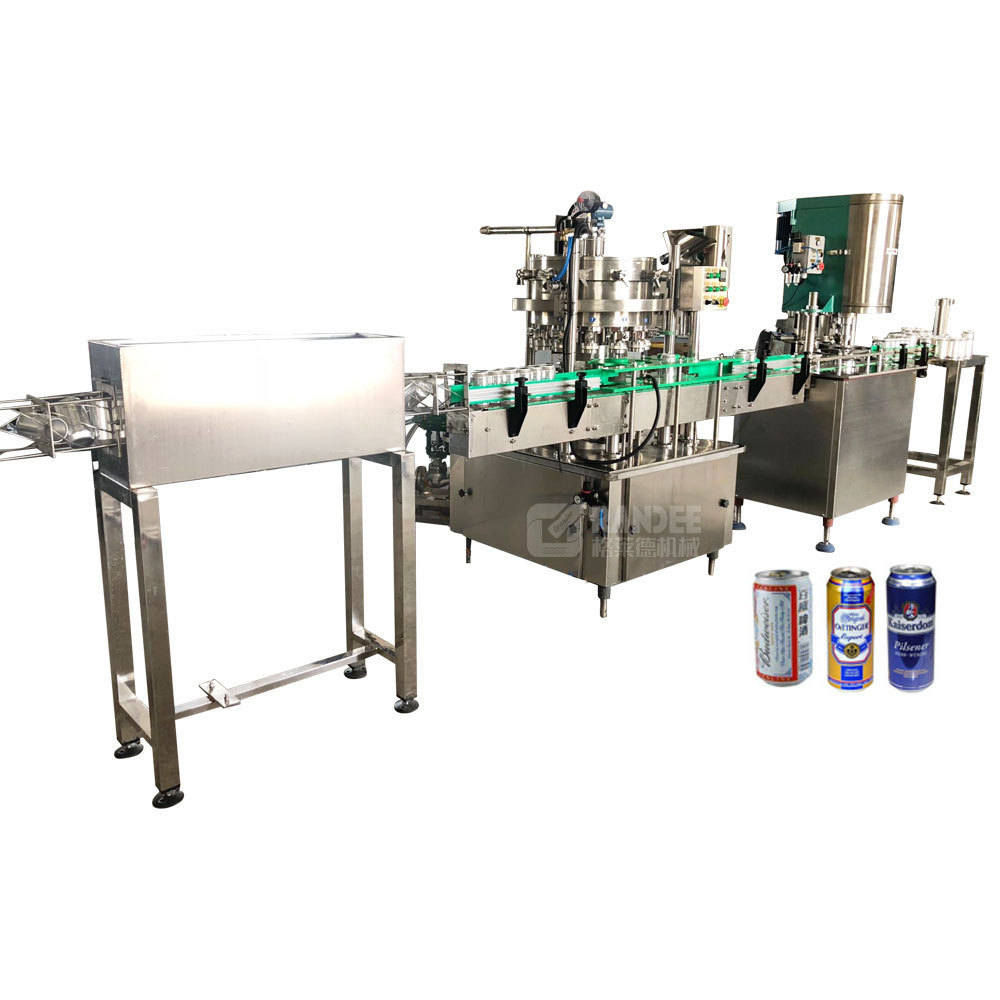

Carbonated Can Filling Sealing Machine  DGF12-1
Beer canning machine / soda water filling sealing machine for equal pressure can filling sealing machine of carbonated drinks in beer and drink industry. It is a pop canned beer in the digestion and absorption of advanced foreign and domestic sealing machine on the basis of independent development of the can filling, sealing unit. Filling and sealing is the overall designed, power system by filling sealing system to ensure that both the absolute synchronization and coordination. It adopts the advanced machine, electrical equipment, and pneumatic control technology. It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss. It can equip long-distance control system according to the customers’ request. It is the preferred equipment for the medium beer and beverage plant.
Auto depalletizer → Automatic can rinsing machine→Automatic soda water can filling machine→
Automatic can sealing machine→Can warmer(optional)→Blow dryer→Automatic or Manual sleeve labeling machine→Bottle Collection Table

Washing part
The spray can washing machine automatically sprays and sterilizes the inner and outer surfaces of the cans. All materials are
stainless steel 304. When flushing the can, first turn the empty can into the can washer, spray it through a porous warm water
pipe to the side and downward, and the empty can rotates 0.5 meters to achieve the purpose of cleaning, then come with turning
over can into the next conveyor chain. Note that the can should not be interrupted in the slideway to prevent can from being fast
and the water can not drained out completely.
Filling part
Adopt PLC, frequency converter and man-machine interface control system. It has advanced control technologies such as variable
frequency speed regulation, automatic filling with cans, no filling without cans, etc. Through various sensors on the device, the
accurate production speed and production quantity can be displayed on set it on the touch screen.
Sealing part
The finished cans are sent to the sealing machine head via a hook chain, and the lid is sent to the mouth of the tank through the
cap feeder. When the can supporting mechanism is raised, the indenter presses the mouth of the can, and the sealing wheel is
pre-sealed and sealed. After the can is sealed, it is pushed out by the canning mechanism to complete the process of filling and
sealing
Main technical parameter
Model
GDF12-1

GDF12-4

GDF18-4
GDF24-4

GDF36-6

DXGF
50-50-12
Capacity (500ml)
1500-2000
2000-3000
4000-10000
8000-9000
10000-12000
12000-14000
Filling type
Isobaric filling
Filling pressure
<0.4MPa
Rinsing water pressure
>0.06MPa <0.2MPa
Application
Carbonated soft drink bottling line
Totalpower
2.5kw
3.7kw
5.5kw
7.5kw
8.2kw
11kw
Overall dimensions
2.0*1.9m
2.3*1.9m
2.5*2.2m
2.8*2.5m
3.6*2.3m
5.5*3.3m
Height
2.3m
2.5m
2.5m
2.5m
2.5m
2.5m
Weight
2000kg
2500kg
3000kg
4500kg
6000kg
11000kg
NAME
BRAND
AREA
PLC
Siemens
Germany
INVERTER
Siemens
Germany
CONTACTOR
Siemens
Germany
TOUCH SCREEN
Siemens
Germany
INVERTER
Siemens
Germany
MOTOR
ABB
SWISS
PNEUMATIC PARTS
FESTO
GERMANY
ELECTRICAL PARTS
SCHNEIDER
FRANCE
For more information, please feel free to contact us to send an inquiry !


Turnkey Solution
1.RO system
This RO system is very important in the whole water project, we prefer you supply water analysis report from your local inspection department. This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 50000L/hr.
This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank. This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised.We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etc
2.Carbonated drink mixer and water chiller
Carbonation mixer: 1500L/Hr,2000L/Hr,3000L/Hr,5000L/Hr, etc. Co2 content is from 2.0-3.8
Water chiller: working with carbonation mixer, the cooling medium of water chiller going to heat plate exchanger of carbonation mixer to cooling carbonation drink to 3 degree to 8 degree (filling temperature).
3. High speed automatic PE film shrink packing machine:
Film material: PE Shrink membrane thickness: 70~100um
Capacity: 20-25packages/ min can be chosen Conveyor belt max width: 600mm
Height : 1000~1100mm
