Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Zhenhao
-
Dimension(L*W*H):
-
customized
-
Weight:
-
0.50 KG
-
Product Name:
-
Bag Filter
-
Material:
-
Aluminum frame ,galvanized iron
-
Bag material:
-
Polyester fiber ,PP , Glassfiber
-
Packing:
-
plastic bag and carton
-
Color:
-
green, pink, white and yellow
-
Product Size:
-
Customized
-
Filter Class:
-
F5/F6/F7/F8/F9
-
Filter Efficiency:
-
45-95%
-
Application:
-
Air conditioning
-
MOQ:
-
No limit
Quick Details
-
Core Components:
-
Aluminum or Galvanized iron frame, polyester fiber +pp, Glassfiber
-
Efficiency:
-
45-95%
-
Porosity:
-
0.5um
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Zhenhao
-
Dimension(L*W*H):
-
customized
-
Weight:
-
0.50 KG
-
Product Name:
-
Bag Filter
-
Material:
-
Aluminum frame ,galvanized iron
-
Bag material:
-
Polyester fiber ,PP , Glassfiber
-
Packing:
-
plastic bag and carton
-
Color:
-
green, pink, white and yellow
-
Product Size:
-
Customized
-
Filter Class:
-
F5/F6/F7/F8/F9
-
Filter Efficiency:
-
45-95%
-
Application:
-
Air conditioning
-
MOQ:
-
No limit
Product Description
|
Material
|
Aluminum frame ,galvanized iron and polyester fiber or glassfiber media bag
|
|
Packing
|
plastic bag and carton
|
|
Color
|
green, pink, white and yellow
|
|
MOQ
|
No limit
|
|
Product Size
|
Customized
|
|
Application
|
Bag filters are widely used in industrial purification of central air-conditioning ventilation systems, electronics, food, etc., and can also be used as front-end filtration of high-efficiency air filters to reduce the load
of high-efficiency air filters and prolong their service life. Because the bag filter has a large windward surface, it has a large dust holding capacity and a low wind speed, and is considered to be the best medium-efficiency filter structure at present. |
Performance characteristics
:
*
High ventilation and low resistance
*
Large dust holding capacity and long service life
*It c
an effectively extend the service life of the terminal high-efficiency filter

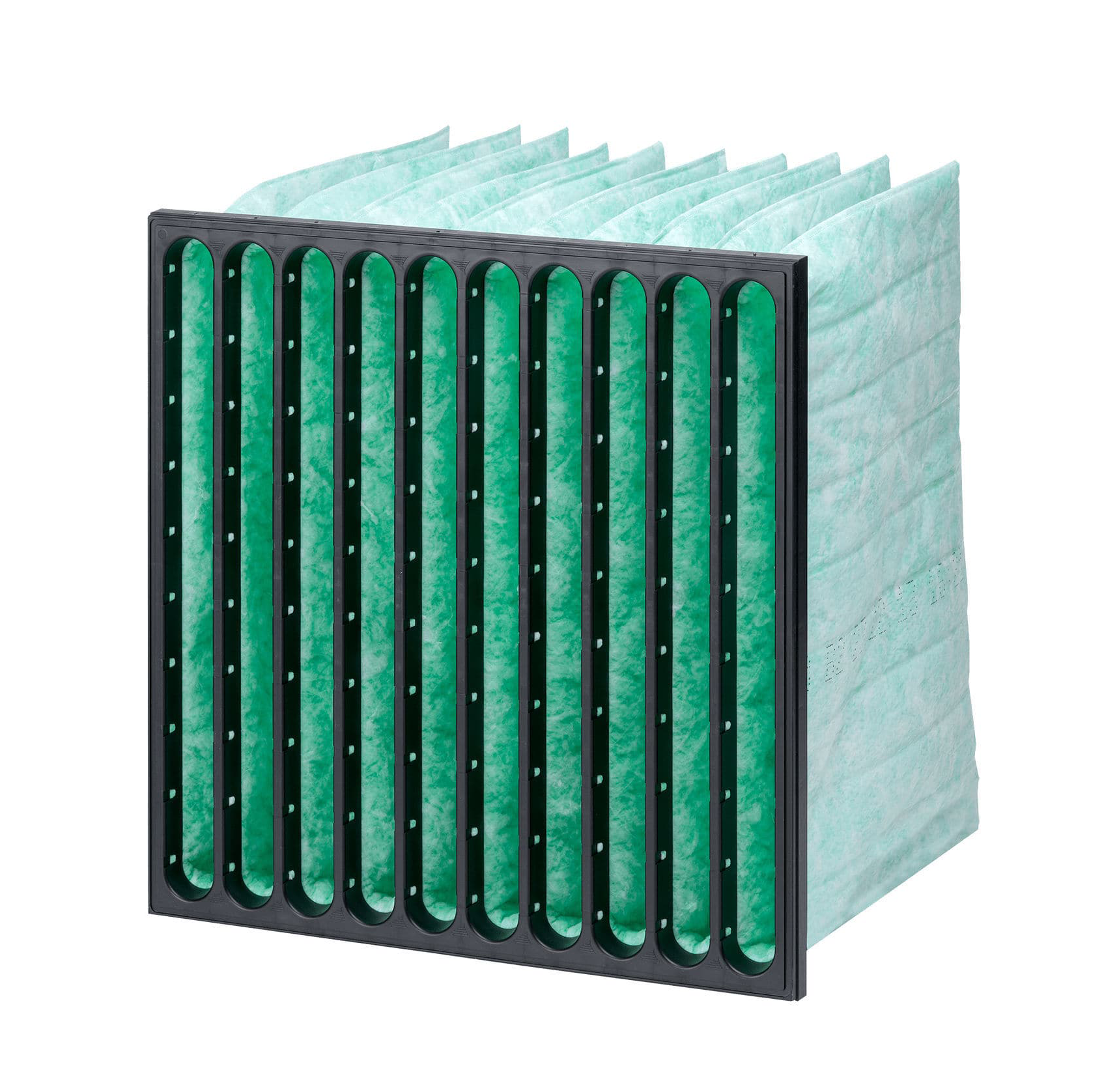

Product Structure Description:
Each filter bag is made of ultra-fine synthetic fibers with a special weaving method to avoid the discomfort that the old glass fiber material may cause to the human body. The filter material contains electrostatic fibers, which is particularly good for sub-micron dust filtration efficiency , High dust collection rate, high air permeability, and long service life. The four sides are fused by ultrasonic wave, and a metal strip is fixed between each filter bag to increase the strength and prevent the filter bag from being damaged by the frictional force of wind cutting when the filter bag is at high speed. Each filter bag has six spacers evenly distributed in the width of the bag to prevent the filter bag from over-expanding and shielding each other when it is subjected to wind pressure, reducing the effective filtering area and efficiency.
Filtration efficiency has a variety of specifications to be chosen: F5, F6, F7,F8,F9
