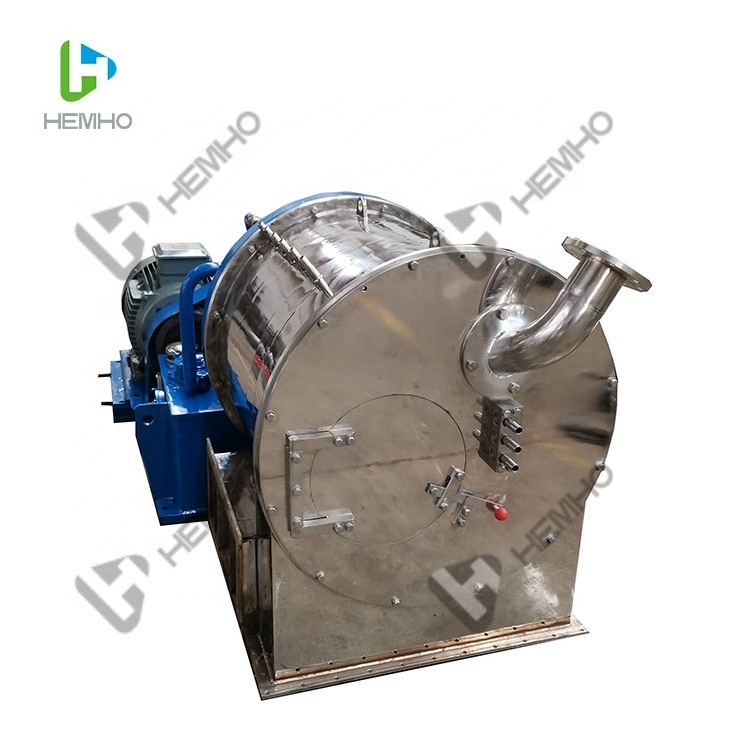

Small Industrial Liquid Solid Separator 300KG Pusher Centrifuge

Small Industrial Liquid Solid Separator 300KG Pusher Centrifuge

FOB Reference Price: Get Latest Price

≥1 Sets

US $13000

≥2 Sets

US $12000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power:: 85kw

Weight:: 4600kg

Dimension(L*W*H):: 3690mm*1600mm*1265mm

Model:: Model

Drum Diameter:: 630mm

Motor power:: 55kw

Oil pump motor:: 30kw

Speed:: Speed

Separation factor:: 1140

Output:: 6-8T/H

Pusher Length:: 50mm

Material quality:: 304/316L Stainless Steel

Operation:: Continuous Automatic

Certification:: CE ISO

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: Hemho

Voltage:: 220v/300v/380v/optional

Power:: 85kw

Weight:: 4600kg

Dimension(L*W*H):: 3690mm*1600mm*1265mm

Model:: Model

Drum Diameter:: 630mm

Motor power:: 55kw

Oil pump motor:: 30kw

Speed:: Speed

Separation factor:: 1140

Output:: 6-8T/H

Pusher Length:: 50mm

Material quality:: 304/316L Stainless Steel

Operation:: Continuous Automatic

Certification:: CE ISO

Hemho HR series two-stage piston pusher centrifuge is a continuous filtration centrifuge for solid liquid separation. It is designed to perform reliable and efficient even under rough process conditions

Products Description

Hemho two stage pusher centrifuge

Hemho HR series is a kind of automatic filter centrifuge with continuous feeding and pulse discharge centrifuge.

The material can be washed repeatedly, and the consumption of washing liquid is lower than that of horizontal scraper.

Suitable Particle Size: medium or coarse particle,>50um

Solid-Liquid ratio:>30%

Product Details

Main Features

After the centrifuge runs at full speed, the suspension enters the cloth hopper through the feed pipe. Under centrifugal force, the suspension is evenly thrown onto the screen in the drum along the circumference, and the liquid phase passes through the screen gap and the drum filter holes. The liquid drain on the middle casing is discharged, while the solid phase is trapped on the screen to form a cylindrical filter residue layer. Through the reciprocating movement of the pushing device, the filter residue layer moves forward along the drum axis and is discharged out of the drum body. The discharge port on the casing is discharged.

1. Continuous operation, large production capacity and stable operation.

2. The separation factor is high, the material can be
fully dehydrated in the primary and secondary drums, and the moisture content of the filter cake is very low. 3.When the purity of the solid product is required, it can be effectively washed, and the washing liquid and mother liquor can be discharged separately.

4. Low power consumption.

Technical Parameters

Hemho Products Recommendation

Why Choose Hemho

About Hemho

Factory Glimpse

Patents&Certifications

1, 30 Years' Experience

2, Holding 40 Patents

3, Innovative R&D Team

4, Awarded as a High-tech Enterprise

5, Precise Production Line Metting the GMP Requirements

6, CE&ISO Certificated

7, 8500M2 Facilities in Strategic Location in Yangze River Delta

Manufacturing&Packing

Manufacturing Flow

Packing for Delivery

FAQ

Q: What kind of products do you have?

A: Industrial centrifuges like screen scroll centrifuges(LWL), decanter centrifuges(LW), pusher centrifuges(HR), peeler centrifuges, top discharge centrifuges, etc.

Q: How do you control the quality?

A: To ensure the accuracy of each part, we are equipped with a variety of professional equipment, and we have accumulated professional processing methods over the past years.

Each component before assembly needs strict control by inspecting personnel. After all the equipment is completed, we will conduct a trial run before shipment to ensure the customers' workshop's stable running.

Q: What terms of payment does your company accept
A: Most payment methods are accepted, however, we mainly accept T/T, L/C at sight

Q: How long is your warranty period?
A: Our officially promised warranty time is 12 months after machine's commissioning.

Q: The after-sale service of Hemho
A: After finishing the production, we will test the machine, take photos, videos and send them to customers via email or other instant messenger.

After the commissioning in our factory, we will package the equipment by standard export package for shipment.

Engineers, sales managers and after-sales service manager will form a aflter-sale team, to follow the customers' projects.
