Quick Details
-
Brand Name:
-
Xin taili / OEM
-
Model Number:
-
1A1R
-
Blade Material:
-
ALLOY STEEL
-
Type:
-
SAW BLADE
-
Product Name:
-
cutting diamond disc tools
-
Product type:
-
1A1R
-
Material:
-
Customized
-
Feature:
-
High Speed.Straight Smooth Edge
-
Application:
-
Glass tube
Quick Details
-
Finishing:
-
required
-
Size:
-
300mm diameter, Required
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Xin taili / OEM
-
Model Number:
-
1A1R
-
Blade Material:
-
ALLOY STEEL
-
Type:
-
SAW BLADE
-
Product Name:
-
cutting diamond disc tools
-
Product type:
-
1A1R
-
Material:
-
Customized
-
Feature:
-
High Speed.Straight Smooth Edge
-
Application:
-
Glass tube

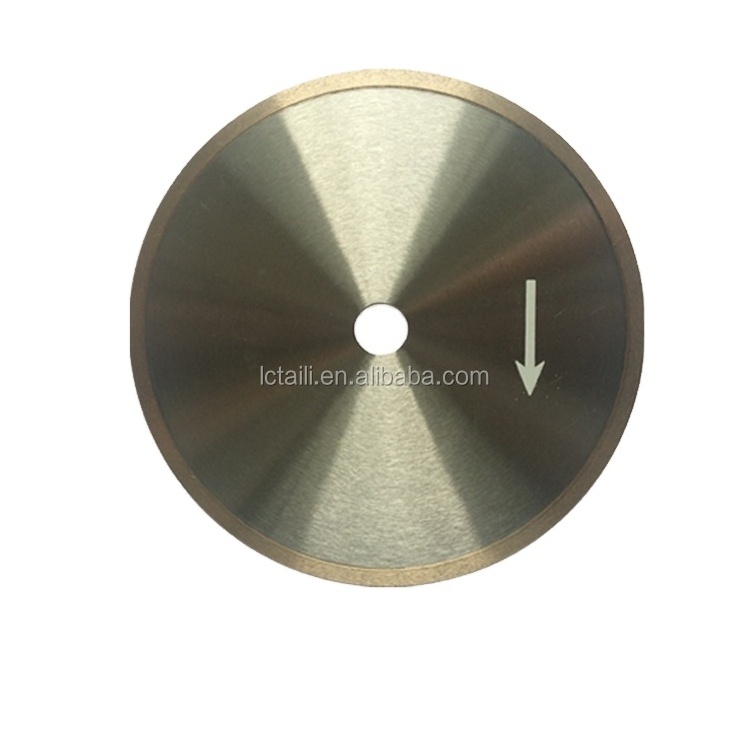

Diamond shape 300mm cutting disc for glass tube
|
Diameter(mm) |
Hole(mm) |
Long of segment(mm) |
High of segment(mm) |
Seg . number |
Work piece |
|
4” 105 |
16/20 22.23 25.4 50 |
35 |
8/10/12 |
6/8 |
Dry or wet cutting all hardness stone such as granite and marble. ceramics, artificial stone, concrete and other building materials |
|
4.3”110 |
32.3 |
8/10/12 |
6/8/9 |
||
|
4.5”115 |
38.3 |
8/10/12 |
8 |
||
|
5”125 |
37.5 |
8/10/12 |
9 |
||
|
6”150 |
33.5 |
8/10/12 |
12 |
||
|
7”180 |
35 |
8/10/12 |
14 |
||
|
8”200 |
39.2 |
8/10/12 |
14 |
||
|
9”230 |
34.4 |
8/10/12 |
18 |
Laser Welded Diamond Blades
Laser welded diamond blades are made by the most advance and highly automatic laser welding technology. Diamond segments are firmly welded to the steel core by laser micro-fusion. Laser welded diamond blades are the most powerful diamond blades for they have Tough bonding, excellent stability, fast cutting and durable life. They even have an extraordinary performance on dry cutting without segment loss.
Silver Brazed Diamond Blades
Silver brazed diamond blades are also known as high frequency welded diamond blades. The diamond segments and the steel core are rigidly welded together by silver brazing solders. The solders melt at a high temperature by a high frequency welding machine. Diamond segments of silver brazed diamond blades are replaceable, so they are more economical than the laser welded blades. Large sizes available only (usually from dia. 250mm).
The quality and life of a diamond blade usually depend on purpose of use.
• Professional: It is for a large scale of use on a regular daily basis. Durability and fast cutting are both considered.
• Contractor or builder: Require fast cutting speed and regular use with reasonable durability.
• DIY: Small job or occasional use, fast cutting with reasonable life.
• Promotional: Shorter life but cutting well with coolant.
Diamond saw blade,the material is synthetic diamond;main matrix is "56MN", we have lots of types for choice: Laser,electroplated,press ,sintered,high frequency,silver welded; Mainly used in cutting Marble,Granite,Asphalt,concrete,clay and other brittle materials.
By combining our success experience in other region, we can design the blades according to different processing purpose
Special logistics packaging Shock bubble film
Packing Details : Packing, solid bicycle saddle, 50pcs/carton
Delivery Details : 3-30 days after order of Solid bicycle tire tubes
Shipping
generally delivery by DHL /UPS/FedEx/TNT, Door to Door expres
High quality
We are in line with Abrasives,Diamond Tools,PDC Materials for more than ten years
OEM
We are a manufacturer that can be customized according to customer needs.
1.LOW MOQ : it can meet your trial order need well ;
2.OEM Accepted: we can do your own brand and design;
3.Good Service: from inquiry to shipment ,we have professional person to deal with the whole processes;
4.Good quality: we have strict quality control system .Good reputation in the market.
5. 24 Hours Technical consultation
In the inquiry, it would be helpful to give the following information:
1. Wheel shape and description.
2. Wheel size.
3. Type of abrasive, Diamond or C.B.N.
4. Grit size.
5. Concentration.
6. Application.
7.Type of bond
