Quick Details
-
Insulation Material:
-
BARE
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ETO
-
Model Number:
-
Enameled Copper Wire
-
Product name:
-
Enameled Copper Wire(Flat Wire)
-
Feature:
-
high strength, high temperature, solvent resistance
-
Diameter:
-
0.05mm--6.00mm
-
Application field:
-
Special point machine
-
Application areas:
-
household appliances
Quick Details
-
Application:
-
Enameled Wire for transfomer, motor,connector, motor,trans
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Solid
-
Insulation Material:
-
BARE
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ETO
-
Model Number:
-
Enameled Copper Wire
-
Product name:
-
Enameled Copper Wire(Flat Wire)
-
Feature:
-
high strength, high temperature, solvent resistance
-
Diameter:
-
0.05mm--6.00mm
-
Application field:
-
Special point machine
-
Application areas:
-
household appliances
Products Description
Enameled wire
specification 0.012mm-1.0mm
|
Conductor
Diameter
|
Overall diameter(mm)
|
|
Conductor Resistance
(20℃ Ω/m)
|
Elongation
（%）
|
Breakdown Voltage（V)
|
|
|
|
Grade 2
|
|
Grade 2
|
|
|
|
|
|
Upper limit
|
Lower limit
|
|
|
Lower limit
|
|
|
0,012
|
0,017
|
0,018
|
151,14
|
3
|
150
|
|
|
0,014
|
0,019
|
0,020
|
111,04
|
4
|
175
|
|
|
0,016
|
0,021
|
0,022
|
85,02
|
5
|
200
|
|
|
0,018
|
0,023
|
0,024
|
67,18
|
5
|
225
|
|
|
0,019
|
0,024
|
0,026
|
60,29
|
6
|
240
|
|
|
0,020
|
0,025
|
0,027
|
54,41
|
6
|
250
|
|
|
0,025
|
0,032
|
0,034
|
34,82
|
7
|
300
|
|
|
0,028
|
0,035
|
0,038
|
27,76
|
7
|
325
|
|
|
0,030
|
0,038
|
0,041
|
24,18
|
8
|
350
|
|
|
0,040
|
0,050
|
0,054
|
13,60
|
10
|
475
|
|
|
0,045
|
0,056
|
0,061
|
10,750
|
12
|
550
|
|
|
0,050
|
0,061
|
0,066
|
8,706
|
14
|
600
|
|
|
0,060
|
0,073
|
0,079
|
6,046
|
16
|
680
|
|
|
0,063
|
0,077
|
0,083
|
5,484
|
16
|
700
|
|
|
0,070
|
0,084
|
0,090
|
4,442
|
17
|
700
|
|
|
0,071
|
0,085
|
0,091
|
4,318
|
17
|
700
|
|
|
0,080
|
0,095
|
0,101
|
3,401
|
17
|
850
|
|
More sizes, please contact us directly！！
Product Details

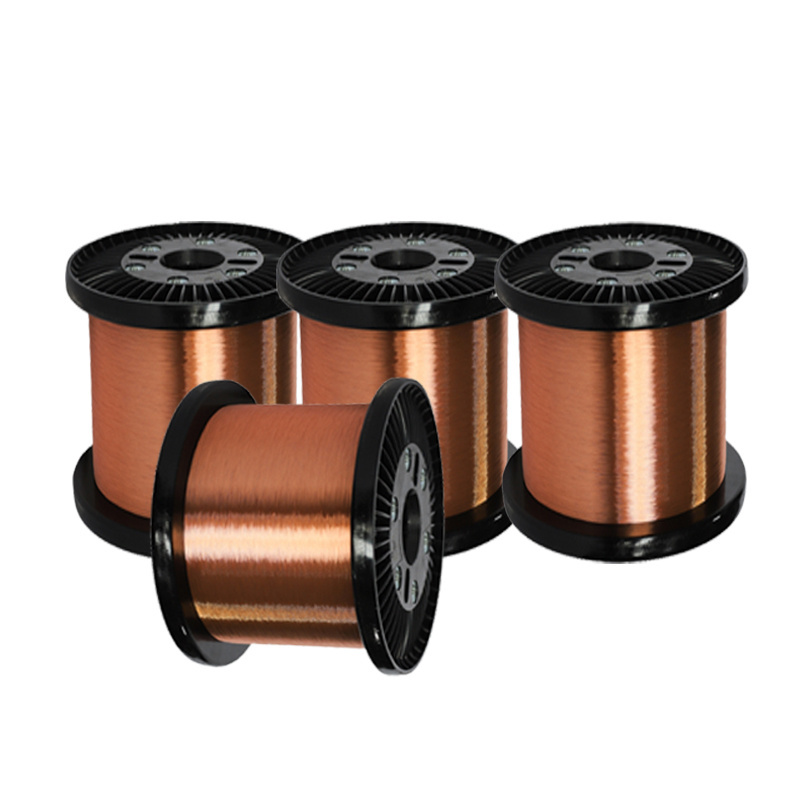

Enameled copper wire is a copper coated with a very thin layer of insulation. It is used in the construction of transformers,inductors, motors, speakers, hard disk head actuators, electromagnets, and other applications that require tight coils of insulated wire.Super Enameled Copper Wire, for Motor Winding. This Super Enamelled Copper Wire is suitable for use in crafts or for electrical grounding. This single-strand wire is annealed for improved ductility.
Features:
1.Solid enough, the wire is not easy to be broken
2.Insulation thickness can be customized
3.Wire can reach almost 0 pinhole
4.High consistency
5.The wire is even and tidy, which is convenient for users to wind
6. Low temperature soldering
7. Bonding method options: Hot air,Solvent and others
1.Solid enough, the wire is not easy to be broken
2.Insulation thickness can be customized
3.Wire can reach almost 0 pinhole
4.High consistency
5.The wire is even and tidy, which is convenient for users to wind
6. Low temperature soldering
7. Bonding method options: Hot air,Solvent and others
