- Product Details
- {{item.text}}
Quick Details
-
Power:
-
5.5 Kw
-
Weight:
-
300 KG
-
Dimension(L*W*H):
-
1200*700*1650 mm
-
Marketing Type:
-
Hot Product
-
Product name:
-
maize milling machine/small maize mill machine
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
gelgoog
-
Production Capacity:
-
150kg/t
-
Power:
-
5.5 Kw
-
Weight:
-
300 KG
-
Dimension(L*W*H):
-
1200*700*1650 mm
-
Marketing Type:
-
Hot Product
-
Product name:
-
maize milling machine/small maize mill machine
Product Description

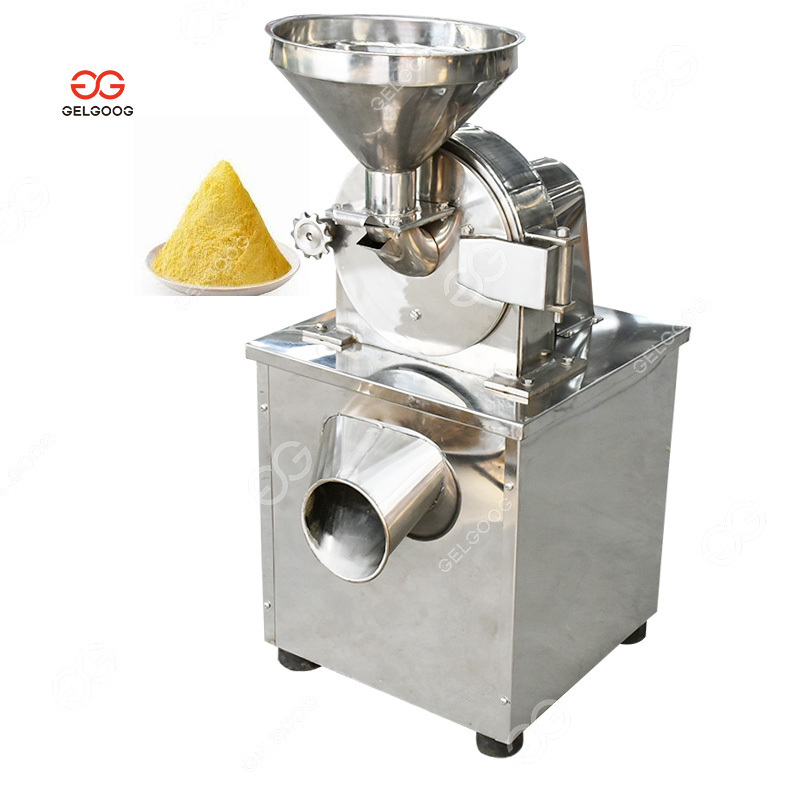

Introduction of maize mill machine
This
maize mill machine
is suitable for the pharmaceutical, chemical, food, agriculture and grain industries. It is especially suitable for crushing dry and brittle materials and has a wide range of uses.
PRODUCT PARAMETER
|
Model
|
GG-S20C
|
GG-S30C
|
GG-S40C
|
GG-S50C
|
GG-S60C
|
|
Capacity(kg/h)
|
50-100
|
50-200
|
100-400
|
200-500
|
200-800
|
|
Crushed powder fineness(mesh)
|
20-120
|
20-120
|
20-120
|
20-120
|
20-120
|
|
Cutter diameter(mm)
|
200
|
300
|
350
|
500
|
550
|
|
Host power(kw)
|
4
|
5.5
|
11
|
15
|
18.5
|
|
Cleaning motor power(kw)
|
0.55
|
0.75
|
1.1
|
1.5
|
2.2
|
|
Dimension(mm)
|
1000*500*1200
|
1200*700*1650
|
1350*900*1800
|
1400*900*1950
|
1600*1100*2100
|
|
Weight(kg)
|
220
|
300
|
550
|
670
|
750
|
Important reminder:
1,The technical parameters are for reference only.
2,The product quotation is for reference only, It is based on the actual purchased model and configuration.
3,For more information, please call or consult customer service.
Working Principle Of maize mill machine
The unit utilizes the relative movement between the movable gear plate and the fixed tooth plate to cause the material to be crushed by the impact of the teeth, the friction and the impact of the materials. The pulverized material automatically enters the trapping bag by the action of rotating centrifugal force. The dust is filtered and collected by the dust box through the bag. The machine is designed according to the "GMP" standard, all made of stainless steel, and there is no dust in the production process.
Details Images
FAQ
Q. What materials the machine can grind?
A: Gypsum, salt, sugar, various seasonings, pepper, pepper, anise, anise, cinnamon, herbs, spices
Q.The minimum fineness:
A: 120 mesh
Q: Feed inlet can be customized according to the size of the material?
A: 20B-C inlet is 6 cm wide, 12 cm long.
Q: How does it work?
A: The claws pass through the high-speed operation of the thorns on the claw plate cover. Turbine milling on the wall, friction
