Quick Details
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Frequency:
-
45-65kHz
-
Feature:
-
Energy Saving, Portable, Handheld
-
H.S Code:
-
8514400090
-
Application:
-
Metal Brazing Welding Soldering
-
Product name:
-
Handheld Induction Heating Machine
-
Color:
-
Customer's Requirement
-
Net Weight:
-
73kg
-
Keyword:
-
Steel Grating Forge Welding Machine
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jinlai
-
Weight (KG):
-
100
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Frequency:
-
45-65kHz
-
Feature:
-
Energy Saving, Portable, Handheld
-
H.S Code:
-
8514400090
-
Application:
-
Metal Brazing Welding Soldering
-
Product name:
-
Handheld Induction Heating Machine
-
Color:
-
Customer's Requirement
-
Net Weight:
-
73kg
-
Keyword:
-
Steel Grating Forge Welding Machine

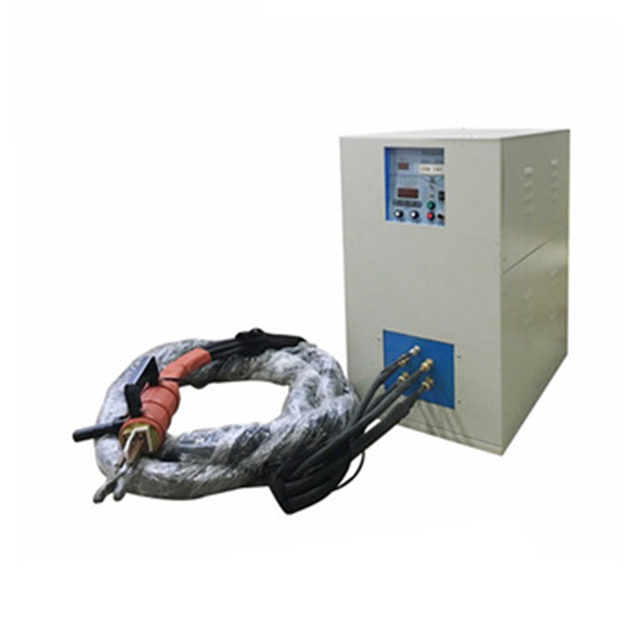

Advanced Fast Welding Brazing Air Compressor Copper Pipe Handheld Induction Heating Machine (JLS-10)
Main Feature:
Technical Parameters
| Models | JLS-10KW | JLS-20KW | JLS-60KW |
| Max Output Power | 10KW | 20KW | 60KW |
| Input Voltage | 3 phase 380V 50/60HZ | ||
| Flexible Cable Length | 3-10m | 3-5m | 3-5m |
| Heating Head Weight | 1.5KG | 2.5KG | 3.5KG |
Remark: Flexible cable length can be customized according to customers' requirements
Technical Parameters
1.Germany SIEMENS INFINEON IGBT Module. 45-65KHZ oscillation frequency, fast response time, superhigh stability, almost spatter-free welding )
2. Japan Nichicon electrolytic capacitor. ( filter capacitor )
3. Imported transistor integrated block.
4. All water pipe use thermostability, High pressure resistance best quality material.
5. Main card, signal circuit, drive circuit board,control circuit board and components are adopted:Toshiba, Hitachi,Motorola, China's top manufacturers.
6. International advanced all-solid-state semiconductor power devices.
7.Technical advantage:perfect control, alarm display circuit, getting full automatic tracking frequency, continuous adjustable power, safe dependable protection,clear and accuracy data display and etc.
8. Superiority Advantages: fast heating, wide application, small size, easy installation, simple operation, low power consumption, high efficiency.
Generator:
Heating Head and Coil Design:
Application: Brazing, Welding, Soldering etc.
1) Condenser copper tubing;
2) Evaporator copper tube;
3) Compressor copper pipe;
4) Transformer motor wire;
5) Fridge and air condition on-line tube;
6) Other on-line copper pipe etc.
Plywood case (size: L*W*H 1060*470*890 mm, G.W: 120 KG)
