Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZLTECH
-
Model Number:
-
ZLLG80ASM250-4
-
Torque:
-
9N.m
-
Shaft type:
-
double shaft optional
-
Number of poles:
-
10 polos
-
Max. rated speed:
-
260
-
Load(KG/2sets):
-
150
-
Size:
-
8inch
-
Protection level:
-
IP54
-
Encoder:
-
1024
-
Gearbox:
-
4 times
-
Ambient temperature (°C):
-
-20~+40
Quick Details
-
Speed(RPM):
-
255~260RPM
-
Continuous Current(A):
-
8A
-
Efficiency:
-
Ie 3
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZLTECH
-
Model Number:
-
ZLLG80ASM250-4
-
Torque:
-
9N.m
-
Shaft type:
-
double shaft optional
-
Number of poles:
-
10 polos
-
Max. rated speed:
-
260
-
Load(KG/2sets):
-
150
-
Size:
-
8inch
-
Protection level:
-
IP54
-
Encoder:
-
1024
-
Gearbox:
-
4 times
-
Ambient temperature (°C):
-
-20~+40

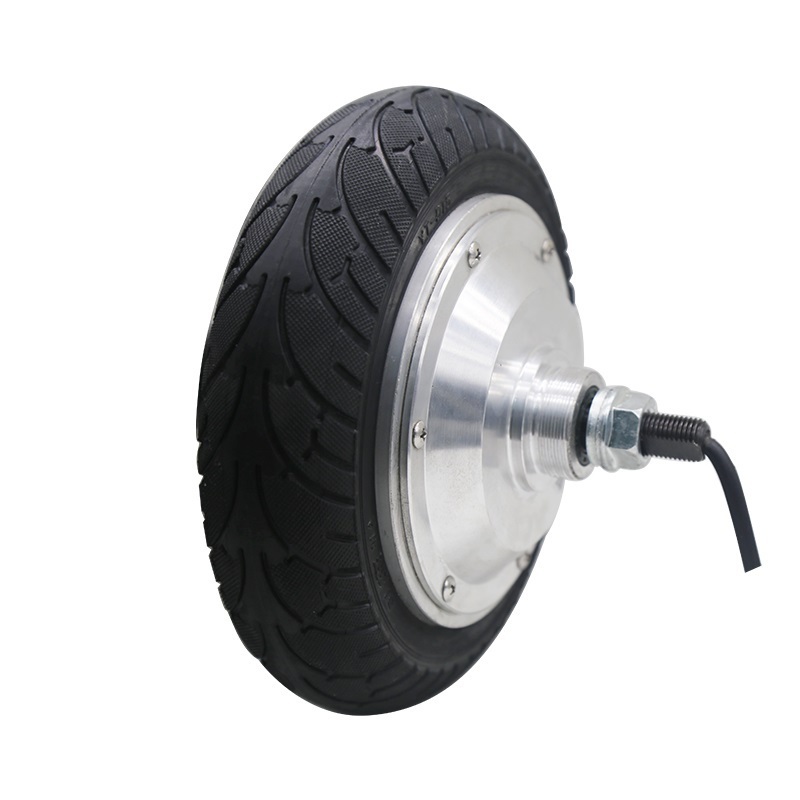

High load 1024 encoder 8 inch DC motor hub 150kg load 8A 9N.m 250W 36V electric brushless geared wheel hub motor for robot
Parameters:
|
Outside Diameter |
8.0 inch |
|
Voltage |
36v, customize |
|
Encoder |
1024 line Incremental Photoelectric Encoder |
|
Efficiency |
≥83% |
|
Power type |
DC motor |
|
Carrying weight |
≤150KG/set |
|
Shaft connection |
thread |
|
Brake method |
electric brake |
|
Excitation mode |
permanent magnet type |
|
Tyre form |
with pattern |
|
Environment temperature |
-20 ~ +40 degree centigrade |
Our hub motor wheel advantage:
-
Self R & D , have own patent and great market competitiveness
- Built-in high precision encoder 12-21 bits optional, also can be customized, electric brake, high load carrying etc
- Simple structure, easy installation and high cost performance
- High precision, high power density , low noise
-
The motor and the outer tyre are integrated, beautiful design
- 4-15 inch optional, power: 50-2KW optional, a ccept OEM/OEM for all models
More hub motor wheel pictures:
Dimension of the hub motor wheel double shaft:
Application: mobile service Robot, AGV
Bulk production
Patent for the hub motor wheel:
Unit weight: 4.2KG;
4 pieces per carton;
Carton weight: 16.8KG.
P ackage: c arton with foam, quantity per carton will depend on the hub motor size.
Shipping: goods will be deliveried by air(EMS, DHL, FedEx,TNT etc), by train or by boat according to your requirements.
