Quick Details
-
App-Controlled:
-
Yes
-
Fixed Frequency/Variable Frequency:
-
Variable frequency
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Deye
-
Model Number:
-
DGWA2-ACDCBLW-12K
-
Power (W):
-
3510w
-
Voltage (V):
-
208V-240V
-
Maximum Airflow Rate:
-
540m3/h
-
Product Name:
-
DGWA2-ACDCBLW-12K
-
Color:
-
White
Quick Details
-
Warranty:
-
1 Year
-
Type:
-

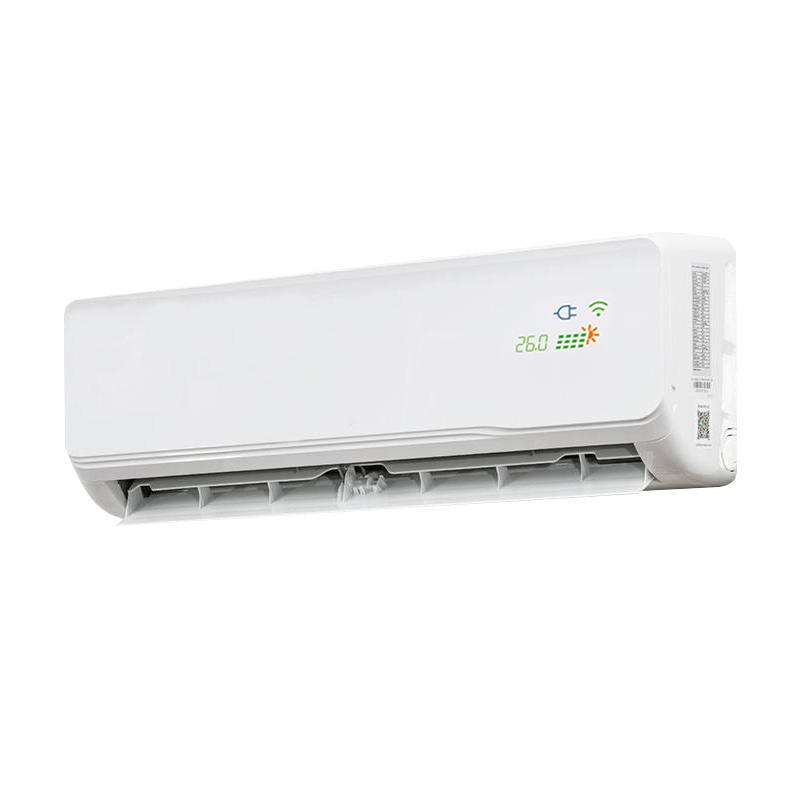

Split Wall Mounted Air Conditioners
-
Application:
-
Hotel, Commercial, Household
-
App-Controlled:
-
Yes
-
Fixed Frequency/Variable Frequency:
-
Variable frequency
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Deye
-
Model Number:
-
DGWA2-ACDCBLW-12K
-
Power (W):
-
3510w
-
Voltage (V):
-
208V-240V
-
Maximum Airflow Rate:
-
540m3/h
-
Product Name:
-
DGWA2-ACDCBLW-12K
-
Color:
-
White
|
Model
|
|
|
12K
|
18K
|
24K
|
||
|
Climate Type
|
Tropical</= 58℃
|
|
T3/T1
|
T3/T1
|
T3/T1
|
||
|
Application area
|
|
m2
|
12-20
|
20-30
|
30-42
|
||
|
Power Supply
|
AC Power
|
Ph-V-Hz
|
1Ph 208V-240V/50-60HZ
|
1Ph 208V-240V/50-60HZ
|
1Ph 208V-240V/50-60HZ
|
||
|
|
DC Power (PV in Series)
|
V
|
80-380V
|
80-380V
|
80-380V
|
||
|
|
DC Power Current
|
A
|
</=12A
|
</=12A
|
</=12A
|
||
|
Adviced Solar Panel
|
|
Pcs
|
(3-4)*330W in series
|
(3-6)*330W in series
|
(3-8)*330W in series
|
||
|
Rated Cooling
|
Capacity(T1)
|
W
|
3510(900-3900)
|
5070(1200-6000)
|
6450(1800-7900)
|
||
|
|
|
BTU
|
12000(3000-13300)
|
17300(4100-20400)
|
22000(6100-27000)
|
||
|
|
Power input(T1)
|
W
|
940(190-1270)
|
1400(220-2100)
|
1790(300-3200)
|
||
|
|
Capacity(T3)
|
W
|
2910
|
4290
|
5130
|
||
|
|
|
BTU
|
9900
|
14700
|
17500
|
||
|
|
Power input(T3)
|
W
|
1050
|
1630
|
1940
|
||
|
Rated Heating
|
Capacity
|
W
|
4100(1000-4500)
|
6100(1200-6800)
|
7800(1800-9100)
|
||
|
Rated Heating
|
Capacity
|
BTU
|
14000(3000-15300)
|
20800(4100-23000)
|
26600(6100-31000)
|
||
|
|
Power input
|
W
|
1170(190-1700)
|
1770(220-2500)
|
2290(300-3500)
|
||
|
T1 EER(W/W)/(BTU/W)
|
|
/
|
3.75/ 12.75
|
3.60 / 12.35
|
3.60 / 12.30
|
||
|
T3 EER (W/W)/ (BTU/W)
|
|
/
|
2.75 / 9.45
|
2.65 / 9.00
|
2.65 / 9.00
|
||
|
COP (W/W)/ (BTU/W)
|
|
/
|
3.50 / 11.95
|
3.45 / 11.75
|
3.40 / 11.60
|
||
|
Dehumidification capacity
|
|
L/h
|
1.3
|
1.7
|
2.5
|
||
|
Indoor
|
Air Flow (Turbo/H/M/L)
|
m3/h
|
540/485/435/350
|
980/880/740/620
|
1290/1180/1070/900
|
||
|
|
Noise Level
|
dB(A)
|
≤42.5
|
≤46
|
≤50
|
||
|
|
Net Weight
|
kg
|
9.0
|
15.0
|
15.0
|
||
|
|
Gross Weight
|
kg
|
12.5
|
18.5
|
18.5
|
||
|
|
Product Size WxDxH
|
mm
|
840x295x205
|
1080x330x237
|
1080x330x237
|
||
|
|
Packing Size WxDxH
|
mm
|
920x360x290
|
1140x382x300
|
1140x382x300
|
||
|
Outdoor
|
Air Flow
|
m3/h
|
2100
|
2200
|
3300
|
||
|
|
Noise Level
|
dB(A)
|
≤52
|
≤55
|
≤58
|
||
|
|
Net Weight
|
kg
|
33.5
|
37.0
|
50.0
|
||
|
|
Gross Weight
|
kg
|
37.5
|
42.0
|
54.5
|
||
|
|
Product Size WxDxH
|
mm
|
802x323x564
|
802x323x564
|
900x337x700
|
||
|
|
Packing Size WxDxH
|
mm
|
910x405x622
|
910x405x622
|
1006x418x755
|
||
|
Refrigerant type
|
|
/
|
R410A
|
R410A
|
R410A
|
||
|
Max Design pressure
|
|
MPa
|
4.3/1.5
|
4.3/1.5
|
4.3/1.5
|
||
|
Loading QTY
|
20GP
|
Sets
|
85
|
75
|
60
|
||
|
|
40'GP
|
|
200
|
165
|
130
|
||
|
|
40HQ
|
|
200
|
165
|
130
|
||
