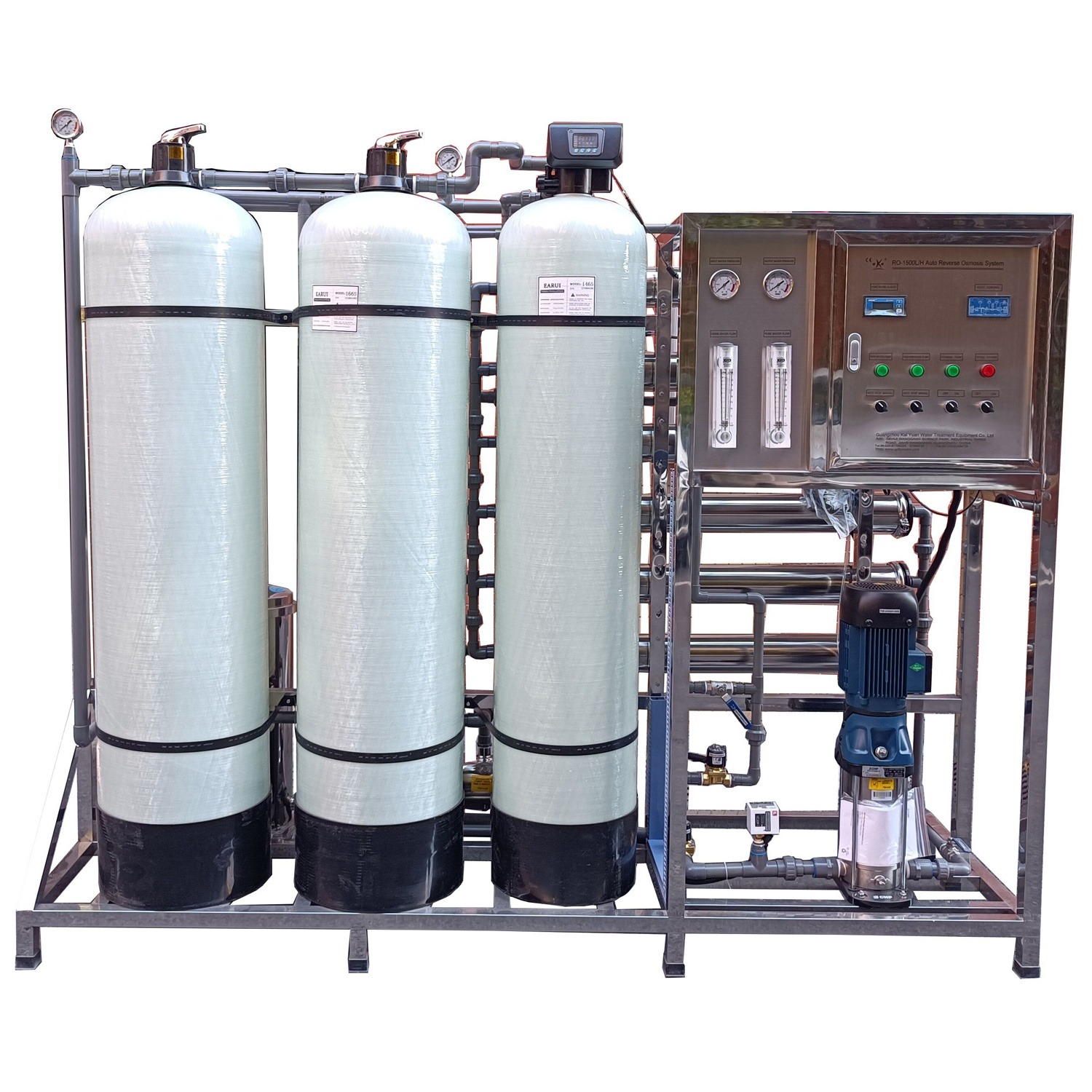

reverse osmosis pure water filter system 20000 liters sterilized steel water tank for industrial drinking water machine

reverse osmosis pure water filter system 20000 liters sterilized steel water tank for industrial drinking water machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $4000

≥200 Sets

US $3800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight:: customized

Size:: customized

Power:: 3

Productivity:: 1500L/Hour

Weight (KG):: 600 kg

Brand:: Kaiyuan

Application:: Liquid storage

Desalination rate:: more than 97%

Membrane brand:: VONTRON/DUPONT FILTEC

Capacity:: 20000liters per day

Function:: Distilled, desalination, deionized, purification ect..

Certificate:: CE,ISO,SASO

Product Name:: Water Filter system

Price:: Negotiable

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: KAIYUAN

Material:: customized, Stainless Steel 304/316, FRP+U-PVC

Weight:: customized

Size:: customized

Power:: 3

Productivity:: 1500L/Hour

Weight (KG):: 600 kg

Brand:: Kaiyuan

Application:: Liquid storage

Desalination rate:: more than 97%

Membrane brand:: VONTRON/DUPONT FILTEC

Capacity:: 20000liters per day

Function:: Distilled, desalination, deionized, purification ect..

Certificate:: CE,ISO,SASO

Product Name:: Water Filter system

Price:: Negotiable

Reverse osmosis pure water filter system 20000 liters sterilized steel water tank for industrial drinking water machine

1) Our standard osmosis inversa water filter system/Ro water filter water system can be used for fresh raw water from Tap, borehole, mountain spring or river ect. , , . (Saltless feed water TDS(total dissolved solid) not exceed 2000mg/l) 2) Our standard RO water system adopts the China Best brand(VONTRON) Ro membrane(ULP31-4040) and China high quality membrane housing , SUS304 pressure pump, U-PVC pipe and with suitable pretreatment. Our RO machine can remove more than 97% inorganic salt,heavy metal ion,arsenic,fluorine, sulfate, organic matter, harmful bacteria etc. It can make the raw water to be gallon bottled/sachet water production for selling. 3) We can make the special and suitable ro water filter system according to customers input water quality. To make the machine high efficient, long life span, and output water quality after our machine can reach to the Bottled purified drinking water standard. 4.) As different place with different water quality, it is better that customers provide us the local water quality report so that we can give you the most suitable, economic machine and high efficient machine.
Item Name	Brand	Material	Function
Raw Water Pump	CNP	SUS-304	Provide pressure for filters
Quartz Sand Filter	KaiYuan	FRP	Filtrate sediments...
Activated Carbon Filter	KaiYuan	FRP	Obsorb odor, smell, color, irons, chlorine... to make clear water
Iron Removal	Kai Yuan	FRP	Remove iron from raw well water
Activated Alumina Filter	Kai Yuan	FRP	Remove fluorine and arsenic from raw water
Anti-scalant chemical dosing system	SEKO		Soften water and prolong the using life for Ro membranes
Security filter	KaiYuan	SUS-304	Remove colloids larger than 5micro
High pressure pump	CNP	SUS-304	Provide pressure for Ro membranes
RO vessels &membrane	Domestic&DOW/Toray/Votron/Hydrau.	FRP	Remove dissolved ions,organic material,baterial...
Solenoid valves, gauges	China	SUS-304	To protect the machine under operation
CIP Washing (optional)	KaiYuan	SUS-304	Membranes maitenance
Electronic control	PLC or PC Program control system	Water quality conductivity/TDS/PH detector,AC contacter,Air switch,indicator light,knob switch,electrical miscellaneous..
UV/Ozone(optional)	USA/Dahuang	For sterilization		Sterilization, remove some baterial like coliform,pseudomonas aeruginosa...

Alibaba Assurance Order and Comments

Click Here To Contact/Consult the Supplier

Product Description(Details Images)

Manual Control Valves:

Easily/simple operation

Cheaper

Automatic or Pneumatic/electric butterfly valve

Three function:flush,backwash,normal operation
Sand and carbon Filters need flush and backwash in 3 to 5 days. Set up the time of flushing and backwash, it can do automatically.

Control Box：PLC with Touch Panel

Conductivity/ph meter: display the EC data of pure water.
Auto Program controller:display device operating status.
Flow meter :dense water and pure water flow.
Pressure meter:high pressure inlet and outlet pressure.
Company name and logo design can be engraved on machine :customize as your requirements.

Control Box：PC

Conductivity/ph meter: display the EC data of pure water.
Auto Program controller:display device operating status.
Flow meter :dense water and pure water flow.
Pressure meter:high pressure inlet and outlet pressure
Company name and logo design can be engraved on machine :customize as your requirements.

Main Features

Name: RO membrane ULP31-4040
Brand:China VONTRON DOW(DUPONT)
Original:CN OR USA

Great reverse osmosis membrane brand.it can remove salt(total dissolve ions) and heavy mental iron more than 97%.

This is the most important part in the system.

The Service life is about 2 years.

Higher pollution-corrosive ability

Main Features

Name: high pressure pump&raw water pump&CIP Washing pump

Brand: CNP or European brand for optional

Original:China
Function:provide pressure for RO part

Click Here to Contact/Consult the Supplier Get More Details

The Whole System Working Technical Diagram

Main Features

1.Can run and produce water continuously, highly automatic.

2.No need chemical to regeneration,easy operation and maintain.
3.RO system uses imported USA DUPONT or China VONTRON Brand membrane.
4.Automatic switch on when lack of water,and switch off when no water or full of water.
5.RO membrane auto wash and reduce the pollution speed.
6.Low-pressure switch protects high-pressure pump from damage cause by water supply stops.
7.Production water conductivity meter monitors water quality online contionuosly.

8.Input water and dense water pressure meters, monitor the RO differential pressure and remind the time of washing.

You May Like Brackish Salty Borewell or Seawater DesalinationRo

Packaging
Size	Rack:According to capacity Quartz sand filter:According to capacity Activated carbon filter: According to capacity
Weight	According to capacity
Packaging Details	The normal package is wooden case or according to capacity

Manual operation
Operation and video	we will send the Manual operation and installation video together with machine.The machine is finished in our factory. You just install easily according to the video and Manual operation.
