Quick Details
-
Model Number:
-
Customized
-
Specification:
-
1/4"
-
Length:
-
100m/roll
-
Thickness:
-
1.2mm
-
Standard:
-
ISO/ROHS
-
Color:
-
Transparent
-
Shape:
-
Round Shape
-
Raw material:
-
100% Virgin PFA
Quick Details
-
Processing Service:
-
Moulding
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
AiXinFu
-
Model Number:
-
Customized
-
Specification:
-
1/4"
-
Length:
-
100m/roll
-
Thickness:
-
1.2mm
-
Standard:
-
ISO/ROHS
-
Color:
-
Transparent
-
Shape:
-
Round Shape
-
Raw material:
-
100% Virgin PFA
Product Description
Features :
Have excellent high temperature resistance ,corrosion resistance performance ,and have long using time .
It is widely used in pesticides ,sulfuric acid filling machine ,food fillers ,oils filling machine ,
Medical equipment ,all kinds instrumentation, automotive oil tube and etc.

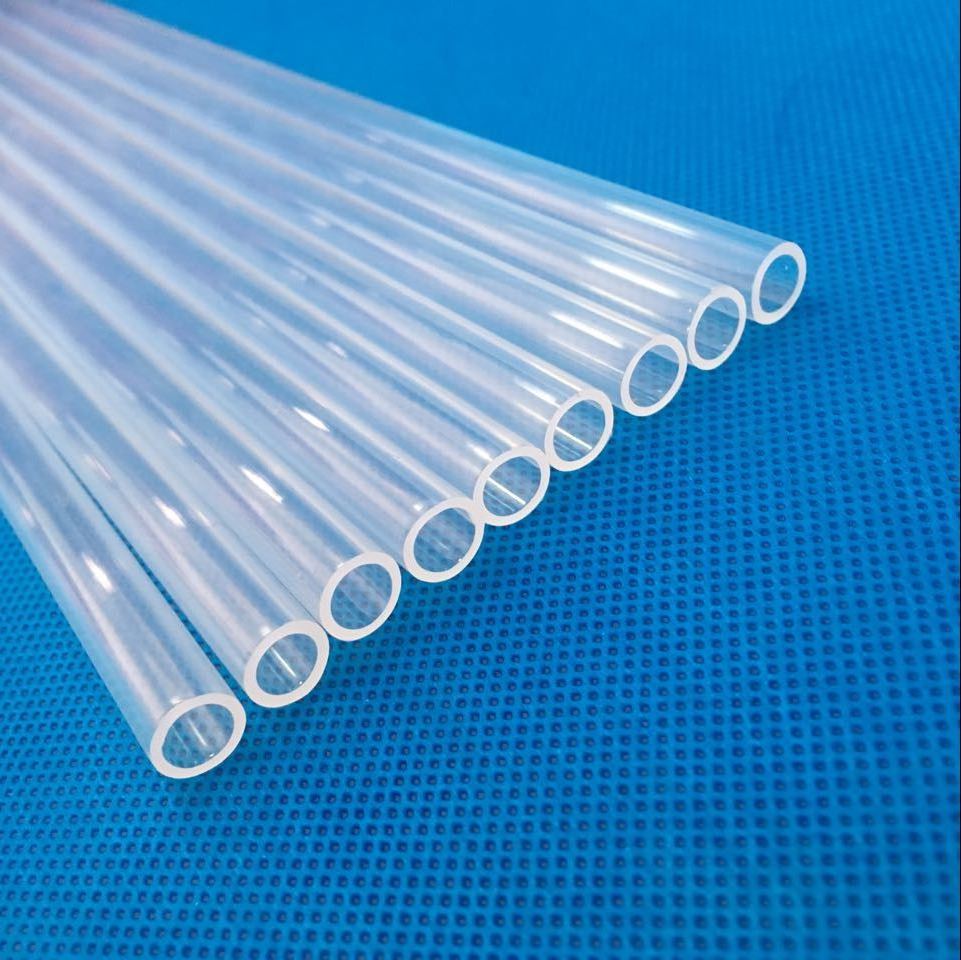

FEP/F46 transparent tube
Use: LCD manufacturing equipment
Single fiber light-emitting whole body single-ended tube
Heat exchanges, steam piping
High-purity reagents pipeline
A variety of corrosive media(harsh solvents)pipeline
Submersible motor with a slot insulation tube
Air-conditioning control wiring harness assembly
Fluoride O-rings plastic tube
Utilization Characteristic:
High and low temperature resistance
-200℃~200℃
Not sticky, waterproof ,oil proof
Security and insulation
Under 60HZ 60MHZ ,dielectric constant is 2.1
Even if firing ,and it will be still insulate
Volume resistance >1018 Ωm
Surface resistance >2×1013Ω
Voltaic Arc >165 seconds ,insulation
Only under high temperature ,fluorine and alkali will have chemical reaction, no reaction with all of other thick and thin
inorganic acid, alkali ,ester
Low water absorption<0.01%
Non inflammability
Non inflammability in air (oxygen index >95vol.%)
Non hazardous
With physical inertia
High transparency
Lowest refractive index in plastic material
Weather resistance
Under ozone and sunshine for long time
Easy to process for second time
Self-close,self joining ,flanging, and it can make into coil pipe
Use: LCD manufacturing equipment
Single fiber light-emitting whole body single-ended tube
Heat exchanges, steam piping
High-purity reagents pipeline
A variety of corrosive media(harsh solvents)pipeline
Submersible motor with a slot insulation tube
Air-conditioning control wiring harness assembly
Fluoride O-rings plastic tube
Utilization Characteristic:
High and low temperature resistance
-200℃~200℃
Not sticky, waterproof ,oil proof
Security and insulation
Under 60HZ 60MHZ ,dielectric constant is 2.1
Even if firing ,and it will be still insulate
Volume resistance >1018 Ωm
Surface resistance >2×1013Ω
Voltaic Arc >165 seconds ,insulation
Only under high temperature ,fluorine and alkali will have chemical reaction, no reaction with all of other thick and thin
inorganic acid, alkali ,ester
Low water absorption<0.01%
Non inflammability
Non inflammability in air (oxygen index >95vol.%)
Non hazardous
With physical inertia
High transparency
Lowest refractive index in plastic material
Weather resistance
Under ozone and sunshine for long time
Easy to process for second time
Self-close,self joining ,flanging, and it can make into coil pipe
Detailed Images
Our Company
Suzhou Aixin Flurine Plastic Products Co.,LTD. is specialized fluorine plastic products research and development manufacturer.We acquired ISO 9001:2008 quality systerm authentication,and all of products have passed National authorities department test, accord with ROHS requirements.
Our Products
Main Products:
*FEP,F46 transparent tube, insulation tube, heat shrink tube,coil pipe,liner tube, bellows, painting tube, sheet, rod, film, welding rod;
*PFA transparent tube, insulation tube, heat shrink tube, coil pipe, liner tube, bellows, painting tube, sheet, rod, film, welding rod, connector , tee，elbow，winding pipe ;
*PTFE,F4 tube, liner tube, high pressure stainless steel braid hose, bellows, painting tube, sheet, rod, film, winding pipe ;
*PVDF ,F26 tube, connector , tee;
*Teflon tube paint, paint tube, Powder core, nozzle, valve : all the fluorine plastic products, we can accpet customized in special size.
Characteristic:
Excellent resistance to high and low temperature, it can be used in -80~+260℃ for a long time, resistance to climatic againg, fireproof, high oxygen index, non-absorbency, excellent resistance to radiation, such as long-term exposure in the atmosphere, the surface and various performance remind unchanged: Excellent dielectric perfomance, high voltage resistance: Excellent corrosion resistance , almost insoluble in any solvent, even in strong acid and strong alkali, say like aqua regia, Sodium Hydroxide NAOH, uranium pentafluoride: Good abrasion resistance, static friction coefficient is the smallest of the plastic products, excellent self-Iubricating performance: it has distinctive non-sticky performance in surface: High Tensile strength.
Widely used in fields of Photovoltaic solar cell tube,semi-conductor equipment tube ,Aerospace,
instrumetation, Medical And Pharmaceutical Industries. Electronic appliances, Telecommunicatio
ns. Petrochemical, Metallurgical electricity, House hold appliances,lighting,etc.
Under the principle of”Customer First,Credit First”we warmly welcome worldwide friends to do business with us.
Company objective,offering high quality products,creating maximum benefit to our customers.
Our Advantages
Packing & Delivery
wooden case,carton.
