FOB Reference Price: Get Latest Price
≥1 Pieces
US $250
≥100 Pieces
US $245
≥1000 Pieces
US $240
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
SA-500TU
Power Supply Mode:
Other
Storage:
Please contact us
Output Power:
650W
Format:
Sound Equipment/amplifiers/speaker
Audio source:
blue-tooth, FM tuner,MP3
Application:
school public address system
Feature:
Clear Sound
Function:
Play Music
Usage:
Outdoor Sound Reinforcement Applications
Style:
Public Address Power Amplifier
Support:
Audio Test
Type:
MP3 usb amplifier
Use:
Active Amplifier
Keyword:
Mixer power Amplifier

Quick Details

Warranty:
3years
Place of Origin:
Guangdong, China
Brand Name:
SONBS
Model Number:
SA-500TU
Power Supply Mode:
Other
Storage:
Please contact us
Output Power:
650W
Format:
Sound Equipment/amplifiers/speaker
Audio source:
blue-tooth, FM tuner,MP3
Application:
school public address system
Feature:
Clear Sound
Function:
Play Music
Usage:
Outdoor Sound Reinforcement Applications
Style:
Public Address Power Amplifier
Support:
Audio Test
Type:
MP3 usb amplifier
Use:
Active Amplifier
Keyword:
Mixer power Amplifier
Product Description

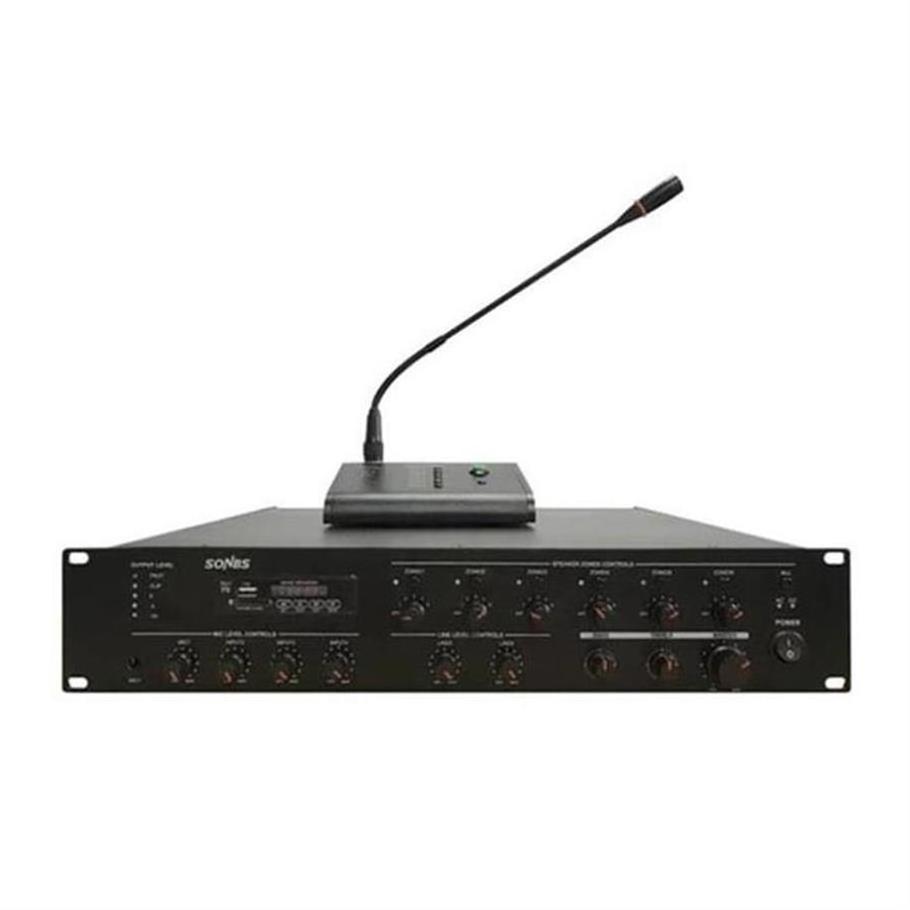

6- Zones Mixer Amplifier With USB/SD/FM/Bluetooth

Benefits:

System applications

It is suitable for partitioned background music and radio paging in schools, shopping malls, buildings, monasteries, parks, hotels, stations, restaurants, leisure cafes, etc.

Features

1. 19" rack mount design of 2U height .

2. Built-in MP3 player by USB & SD, FM tuner & Bluetooth

3. 6 Zones speaker outputs with independent volume control

4. With 2.5" MP3/FM/playback display LCD , USB/SD and SD interface for universal programme source player, supports MP3, WMA, APE, FLAC, WAV, and AAC programme source reading and playback

5. Four microphone inputs, Mic1(6.3mm) and Mic/Line input 2-4(balanced XXLR with phantom power)

6. Line 1-2 input on rear panel by RCA

7. EMC input on rear panel with highest priority by RCA

8. One amplifier capacity of 6 remote paging microphone SA-60RM up to 300m distance

9. Mic 1 of VOX features of highest input priority except EMC input .

10. Volume control for Mic 1-4 and line 1-2, bass & treble and zone volume control on front panel .

11. With MUTE silence function for line and microphone

12. W ith IR remote control , FM radio and Bluetooth, controlled playback from 3-5m, with FM antenna and interface

13. Overload, short circuit, clip and high temp protection

14. With 230V AC and DC24V back-up input power switching protection system

Technical parameters

Model

SA-120TU

SA-240TU

SA-350TU

SA-500TU

Name

6-Zones Mixer Amplifier With USB/SD/FM/Bluetooth

RMS

120W

240W

350W

500W

Speaker output

100V or 70V  SPEAKER  ZONE1-Z0NE6  OUTPUT

Input signal

MIC 1-4: 2.5mV, Line 1-6: 250mV; EMC: 250mV

Frequency response

80-16KHz

Signal to Noise Ratio

>70dB

Total Harmonic Distortion

<0.1%

Protection

Short-circuit, peak-shaving, overload and high-temperature protection

Power consumption

200W

400W

500W

650W

Power supply

AC220V or 110V, 50-60Hz

Dimensions

418( L )×318( W )×88( H )mm

Weight

9.5kg

12kg

13kg

14.5kg
