Dimensions:
1722 x 1134 x 30/35mm
Weight: 23.5kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
Weight: 23.5kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
25 YEARS
-
Brand Name:
-

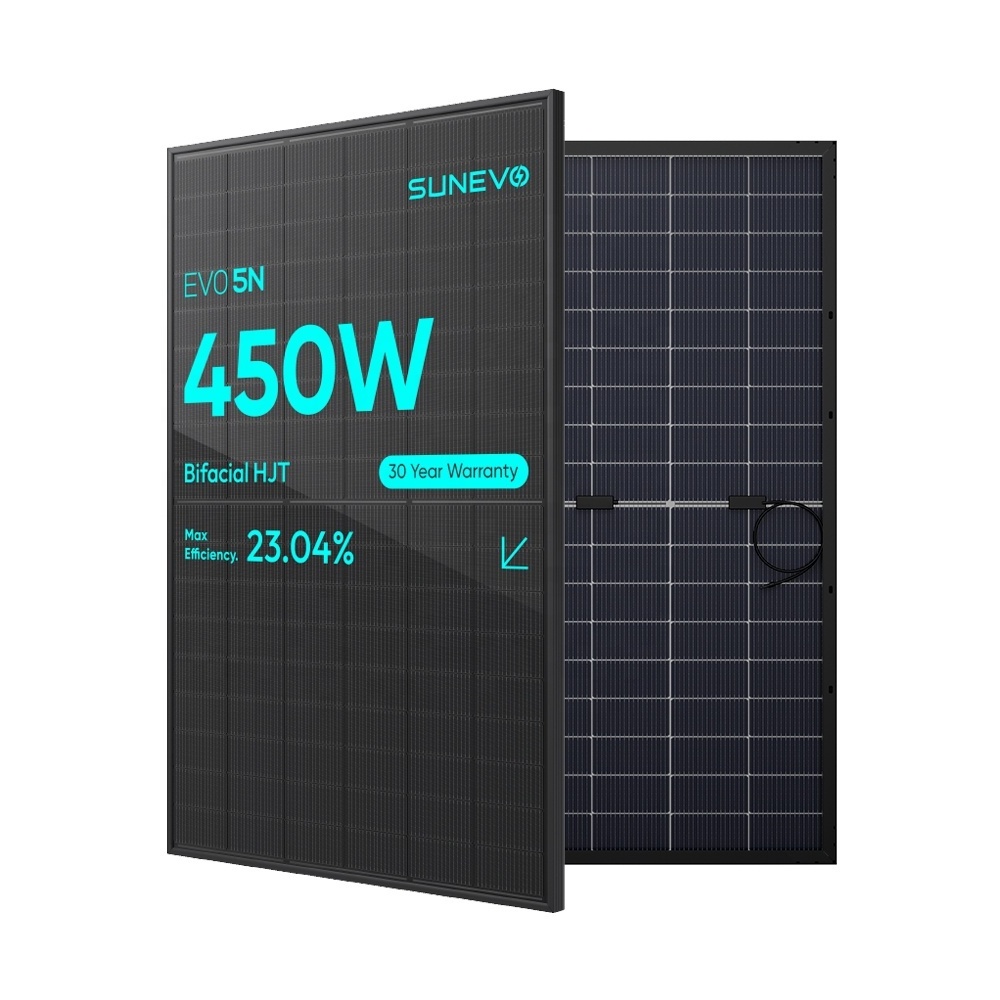

SunEvo
-
Model Number:
-
Evo 5N 108cells 430-450W
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1722 x 1134 x 35mm
-
Solar Cells:
-
HJT Mono 182*91mm
-
No. of Cells:
-
108 (6*18)
-
Dimensions:
-
1722 * 1134 * 35mm
-
Glass:
-
2.0mm coated semi-tempered glass
-
Frame:
-
Anodized aluminium alloy
-
Junction Box:
-
IP68 Rated, 3 Diodes
-
Cable:
-
4mm2, 300mm (+) / 300mm (-) or Customized
-
Wind/Snow Load:
-
2400Pa/5400Pa
-
Connector:
-
MC Compatible
-
Packaging:
-
36pcs/box, 936pcs/40'HQ
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell, Bifacial, Double-glass, All Black, MWT, HJT, N-TYPE
-
Panel Efficiency:
-
23%
-
Warranty:
-
25 YEARS
-
Brand Name:
-
SunEvo
-
Model Number:
-
Evo 5N 108cells 430-450W
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1722 x 1134 x 35mm
-
Solar Cells:
-
HJT Mono 182*91mm
-
No. of Cells:
-
108 (6*18)
-
Dimensions:
-
1722 * 1134 * 35mm
-
Glass:
-
2.0mm coated semi-tempered glass
-
Frame:
-
Anodized aluminium alloy
-
Junction Box:
-
IP68 Rated, 3 Diodes
-
Cable:
-
4mm2, 300mm (+) / 300mm (-) or Customized
-
Wind/Snow Load:
-
2400Pa/5400Pa
-
Connector:
-
MC Compatible
-
Packaging:
-
36pcs/box, 936pcs/40'HQ
Solar Panel Detail
|
Module Type: SE5-54H
|
430
|
435
|
440
|
445
|
450
|
|
Maximum Power (Pmax/W)
|
430
|
435
|
440
|
445
|
450
|
|
Module Efficiency (%)
|
22.02
|
22.28
|
22.53
|
22.79
|
23.04
|
|
Optimum Operating Voltage (Vmp/V)
|
33.49
|
33.75
|
34.01
|
34.26
|
34.51
|
|
Optimum Operating Current (lmp/A)
|
12.84
|
12.89
|
12.94
|
12.99
|
13.04
|
|
Open Circuit Voltage (Voc/V)
|
40.3
|
40.56
|
40.83
|
41.09
|
41.34
|
|
Short Circuit Current (lsc/A)
|
17.31
|
17.37
|
17.43
|
17.49
|
17.55
|
Products Series
Cells Layout:
108 Half Cells(6×18)
Cells Layout:
120 Half Cells(6×20)
Dimensions: 1910 x 1134 x 30/35mm
Weight: 26.0kg
Modules per box: 36pcs
Modules per 40' container: 864pcs
Dimensions: 1910 x 1134 x 30/35mm
Weight: 26.0kg
Modules per box: 36pcs
Modules per 40' container: 864pcs
Cells Layout:
144 Half Cells
Dimensions:
2279 x 1134 x 30mm
Weight: 31.5kg
Modules per box: 36pcs
Modules per 40' container: 720pcs
Weight: 31.5kg
Modules per box: 36pcs
Modules per 40' container: 720pcs
