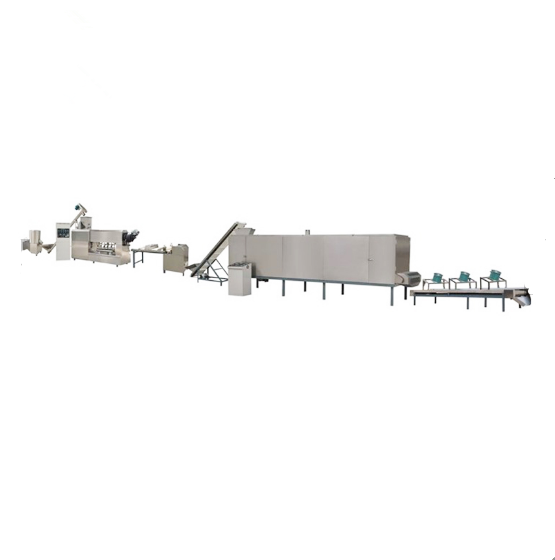

Pasta macaroni machine macaroni production line/spaghetti noodles making machine

Pasta macaroni machine macaroni production line/spaghetti noodles making machine

Single screw extruder

Fe atures

1. Use of advanced frequency control skills, work stable and less power consumption.

2.Screw by alloy steel, has a longer service life.

3.Automatic heating control system, easy to work and more accurate parameters.

4.Device configuration water cycle temperature control system.

5.Feeding motor, host equipment, rotary cutting machine adopts frequency control of motor speed.

6.Configure a small single rod extrusion machine, the realization of secondary cure, product curing effect is good.

Technical parameters

model	size	voltage	installed power	actual power
DL	3200*1100*2000mm	380V/50Hz	45kw	30kw

Pulling & cutting

Features

1.Cutting knife is used to cut rectangular pipe, pipe.

2.Traction cutting machine has two parts: to cut off the system and transmission system.

3.Equipment operation is simple, the use of frequency control.

4.Commonly used in long, long tube shape small food, such as salad, French fries, pipe, circle half swelling or not puffed food.

Technical parameters

model	size	voltage	power
QY	2200*800*1500mm	380V/50Hz	2kw

Hoister

Features

1.Hoist communicate food from low to high, according to the process; Decided to lift height and horizontal distance.

2.Hoist can be divided into large and small according to the height of the hoist and horizontal distance.

3.Hoisting machine is commonly used in : the semi-finished product from the host ascending to the next working procedure of lifting device.

4.Conveyor belt can be divided into rubber belt and stainless steel.

Technical parameters

model	size	voltage	power
TSJ	1200*1000*2500mm	380V/50Hz	3kw

Hot Air Dryer

Function

It can be used to bake dry food. The oven can bake a variety of inflating food, pet food, use/TSP food, peanut, nuts, chew nut and so on.

Features

1. The oven has compact structure, small occupies area, large dry, small area, slight heat radiation, high thermal efficiency.

2. Belt and use stainless steel heat preservation, suitable for food industry.

3. Can control the running speed of the oven belt network(frequency).

4. Temperature can control the arbitrary and design according to the need.

5. Heating pipe heating way, raise and lower the temperature quickly, thermal intertia small, high thermal efficiency.

6. Speed of net belt with accurate temperature control device.

7. Double roller chain and chain drive make stable and smooth running.

8. At the bottom of the sliding plate dryer is easy to clean.

9. Fit for their extrusion snacks, nutritional powder, bread crumbs, pet food, nutrition, rice, dried fruit, soybean protein, etc.

Technical parameters

Model	size	voltage	power
HG	8100*1200*2300mm	380V/50Hz	60kw

Cooling conveyor

Function

Used for carrying food to the next device.

Technical parameters

model	size	voltage	power
LQ	800*800mm	380V/50Hz	1.1kw
