Quick Details
-
Application:
-
Construction
-
Design Style:
-
Industrial
-
Type:
-
mobile scaffolding, Walkthru Frame/Ladder Frame/H Frame/Masonry Frame
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
TOPWAY
-
Model Number:
-
mobile scaffolding
-
Product name:
-
5' width step frame scaffolding for Construction
-
Standard pipe:
-
42.3*2.0mm/42.3*2.2mm/42.3*2.4mm
-
Size:
-
1219mm*1930mm, 1219mm*1700mm, 1219mm*1524mm etc.
-
Color:
-
Silver, Red, Blue or as your request
-
Main material:
-
Q235/Q195 steel pipe
-
Surface treatment:
-
Hot dip galvanized(HDG),Painted, Powder coated
-
Advantages:
-
Easy erection and good bearing capacity
-
MOQ:
-
10 sets
-
Package:
-
In bundle or as your request
Quick Details
-
Warranty:
-
2 years
-
After-sale Service:
-
Free spare parts
-
Project Solution Capability:
-
3D model design
-
Application:
-
Construction
-
Design Style:
-
Industrial
-
Type:
-
mobile scaffolding, Walkthru Frame/Ladder Frame/H Frame/Masonry Frame
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
TOPWAY
-
Model Number:
-
mobile scaffolding
-
Product name:
-
5' width step frame scaffolding for Construction
-
Standard pipe:
-
42.3*2.0mm/42.3*2.2mm/42.3*2.4mm
-
Size:
-
1219mm*1930mm, 1219mm*1700mm, 1219mm*1524mm etc.
-
Color:
-
Silver, Red, Blue or as your request
-
Main material:
-
Q235/Q195 steel pipe
-
Surface treatment:
-
Hot dip galvanized(HDG),Painted, Powder coated
-
Advantages:
-
Easy erection and good bearing capacity
-
MOQ:
-
10 sets
-
Package:
-
In bundle or as your request
5' width step frame scaffolding for Construction
Light Duty
Steel Metal Frame
Scaffolding
Movable/Mobile Frame Scaffolding with performance of easy to assemble, convenient to move , high bearing capacity and safety , is widely used in room or outside decoration project. Material is Q235/Q195 Steel. Surface finishing is spray painted, powder coated or galvanized.

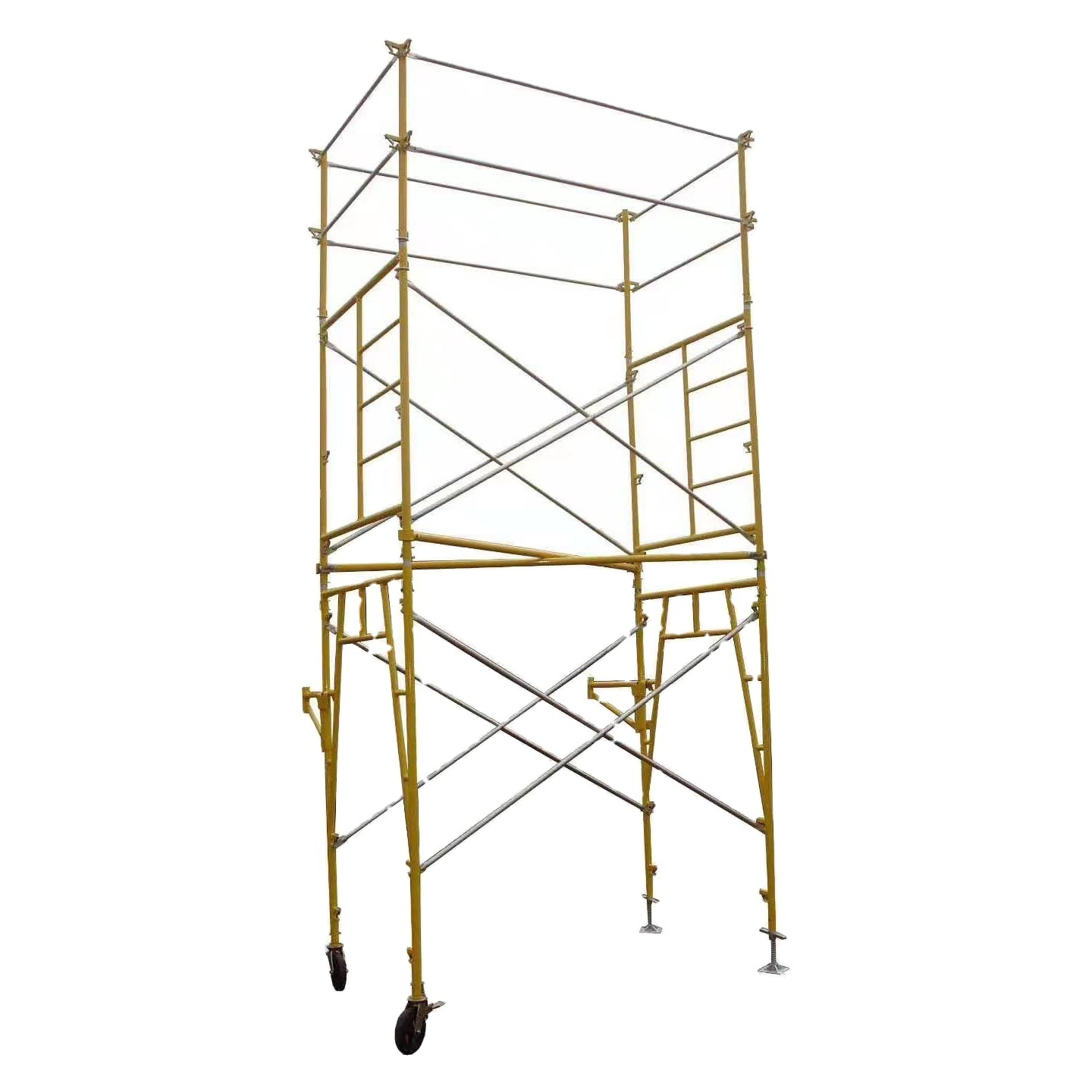

One complete set of box frame scaffold like this picture
including: 2pcs frames, 2 pairs cross braces, 4 pcs joint pins,1pc walkboard (optional)
Specifications of Walk through Frame / H Frame / Door Frame:
1219*1930 ( 4'x6'4'') 1219*1700 ( 4'x5'7'' ) 1219*1725 ( 4'x5'8'') 1219*1524 (4'x5') 914*1700 (3'x5'7'')
914*2032 (3'x6'8'') 914*1930 (3'x6'4'') 914*2006 (3'x6'7'') 1524*1930 (5'x6'4'') 1067*1930 (42''x6'4'')
Specifications of Ladder Frame:
1219*1930 (4'x6'4'') 1219*1700 (4'x5'7'') 1219*1524 (4'x5') 1219*1219 (4'x4') 1219*914 (4'x3') 914*1700 (3'x5'7'') 1524*1930 (5'x6'4'') 1524*1524 (5'x5') 1524*914 (5'x3') 1524*610 (5'x2')
Specification of Cross Brace:
1219*1829 (4'x6') 914*1829(3'x6') 610*1829(2'x6') 1219*1219(4'x4') 914*1219(3'x4')
Specification of Cross Brace:
1219*3048(4'x10') 1219*2438(4'x8') 1219*2134(4'x7') 1219*1829(4'x6')
Specification of Walkboard / Catwalk / Scaffolding Plank
Specification of Stair Ladder
Accessories of Mobile Frame Scaffoldings:
A complete frame scaffolding is including: 2pcs main frames, 2sets cross braces, 4pcs joint pins.
O ptional parts: Caster wheel, Ladder, catwalk, screw jack.
Product Show:
Detailed images of galvanized/painted steel frame scaffolding
1. Proffesional design and production
2. Technical support and OEM service
3. Timely delivery
4. High quality products with competitive price
