Quick Details
-
Brand Name:
-
Radiodetection
-
Model Number:
-
RD8200-TX10
-
Product name:
-
pipe and cable locator RD8200-TX10
-
Sensitivity:
-
6E-15 Tesla 5μA at 1 meter (33kHz)
-
Depth measurement precision:
-
1 ± 3%
-
Dynamic range:
-
140dB rms
-
Selectivity:
-
120dB/Hz
-
Locate accuracy:
-
± 5% of depth
-
Maximum depth readout:
-
Cable / Pipe: 30m Sonde: 19.5m
-
Start-up time:
-
<1 second
-
Custom locate frequencies:
-
Up to 5 additional frequencies
-
Active Locate Modes:
-
Five
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
United Kingdom
-
Brand Name:
-
Radiodetection
-
Model Number:
-
RD8200-TX10
-
Product name:
-
pipe and cable locator RD8200-TX10
-
Sensitivity:
-
6E-15 Tesla 5μA at 1 meter (33kHz)
-
Depth measurement precision:
-
1 ± 3%
-
Dynamic range:
-
140dB rms
-
Selectivity:
-
120dB/Hz
-
Locate accuracy:
-
± 5% of depth
-
Maximum depth readout:
-
Cable / Pipe: 30m Sonde: 19.5m
-
Start-up time:
-
<1 second
-
Custom locate frequencies:
-
Up to 5 additional frequencies
-
Active Locate Modes:
-
Five

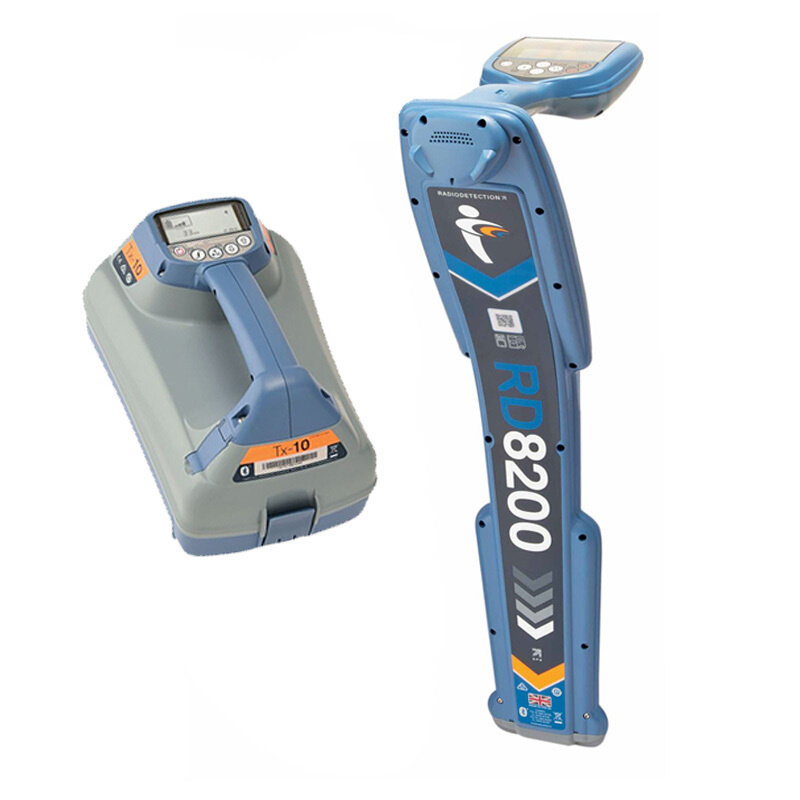

RD8200 RD7200 Cable and Pipe Locators
Industrial grade display, for outdoor usage RD8200 locators and transmitters use transflective low power LCD technology that uses ambient light to improve screen readability in direct sun light and extend battery life.
TruDepth and current readout, for extra assurance
Radiodetections TruDepth displays precise depth and current measurements, only when the RD8200 is correctly oriented above the target. Measurement consistency gives high confidence that the correct line is being followed.
High performance audio and vibration alerts, for noisy environmentsThe RD8200 waterproof speaker housing has been tuned to provide optimum resonance for your choice of high or low frequency tones.
Current Direction, track the right lineIdentify your target amongst a number of parallel utilities by applying a specialized CD signal from a Tx-10 transmitter. CD arrows displayed on the locator confirm you are tracing your target line.Power Filters, works where other locators wontWhen a transmitter cant be connected, tracing individual power lines through dense networks can be a real challenge. Conflicting or powerful signals confuse or combine to create a wash of signal.A single key press enables the use of the properties of power signals to establish if a signal comes from one source, or from multiple cables which you can then trace and mark. Dynamic Overload Protection, rejects unwanted interferenceAutomatically filters out interference, enabling use in electrically noisy environments such as near substations or overhead power lines.Swing Warning System, drives correct usageLocators must be kept perpendicular to the ground for best accuracy. RD8200 locators have a built-in gyroscopic measurement system which alerts the user of excessive swing, driving correct usage.Usage-logging with GPS positioning, understand how your technicians operateThe RD8200G locator automatically stores all locate parameters providing a comprehensive picture of field operations.
