Quick Details
-
Power Source:
-
usb, Battery, Solar
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VOLUN
-
Model Number:
-
HGT-CH48180
-
Product name:
-
Carbon heating cloth
-
Voltage:
-
24V
-
Size:
-
Width 48cm, 55cm, 75cm
-
Power:
-
180W/sqm
-
Certifications:
-
CE Raman spectroscopy testing
-
Material:
-
Graphene carbon + soft fiber cloth
-
Usage:
-
heating + physiotherapy
-
Temperature:
-
45-55 degree celsius
-
Features:
-
Washable, heating evenly, soft, bendable, long lifespan
Quick Details
-
After-sales Service Provided:
-
Return and Replacement
-
Warranty:
-
2 years
-
Application:
-
Car, RV, Outdoor, Commercial, Household
-
Power Source:
-
usb, Battery, Solar
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VOLUN
-
Model Number:
-
HGT-CH48180
-
Product name:
-
Carbon heating cloth
-
Voltage:
-
24V
-
Size:
-
Width 48cm, 55cm, 75cm
-
Power:
-
180W/sqm
-
Certifications:
-
CE Raman spectroscopy testing
-
Material:
-
Graphene carbon + soft fiber cloth
-
Usage:
-
heating + physiotherapy
-
Temperature:
-
45-55 degree celsius
-
Features:
-
Washable, heating evenly, soft, bendable, long lifespan
Product details

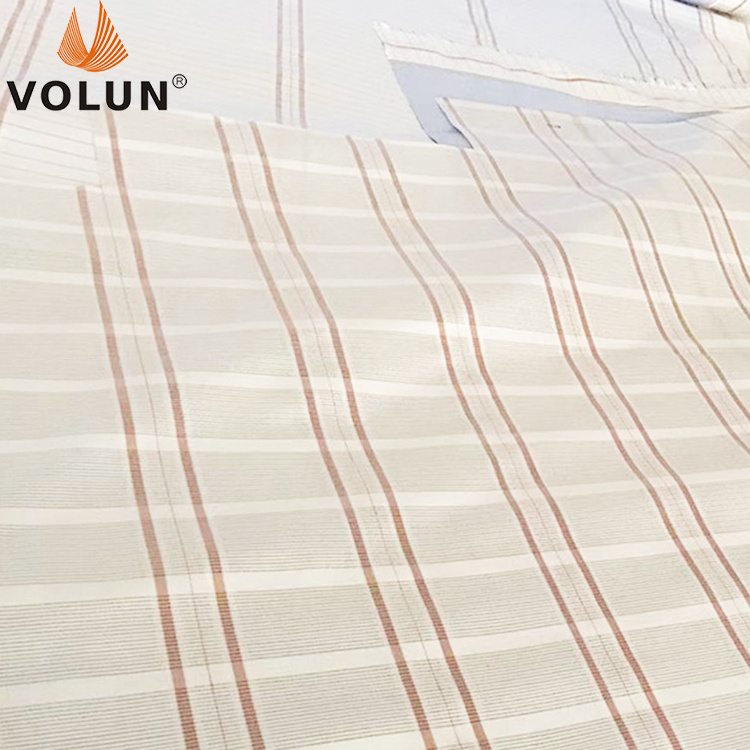

Carbon fiber graphene heating cloth flexible seat cushion far infrared radiation heating cloth electric heating film for blanket
|
Product Name
|
Carbon fiber heating cloth, heating element
|
|
Product size
|
Width 48cm, 55cm, 75cm
|
|
Voltage
|
24V
(3.7V, 7.4V, 12V, 220V is available)
|
|
Power
|
180W/sqm
|
|
Heating Size
|
cut as per usage
|
|
Heat conversion
|
>99%
|
|
Max.stable temperature
|
≤65℃
|
|
Max. temperature resistance
|
60℃
|
|
Far infrared wavelength
|
6μm～14μm
|
|
Washable
|
can be washed 10-15 times, and power change in 10%
|
|
Material
|
Lightweight composite fabric + Carbon heating film
|
|
Advantages
|
1. heating up fast (3seconds)
2. Thin, Soft, flexible
3. Washable (Can be washed 10-15 times)
4. Low voltage safety voltage
5. This material can make the temperature reach 65℃ and the material can resistance 60℃ temperature
6. Can be sewing, easy to use on home textiles
7. 6-14UM is good for health, Can be used in physiotherapy products
|
|
Reliablility testing
|
Passed Salt spray test/ infrared test/ Pull test/ Raman test/ Anti-drop test/ water wash test/ Bend Test
|
|
Other application
|
Home electric heater element, far infrared therapy element, outdoor products etc....
|
Production & Packing
Design highlight
Applications
Where can use the heating cloth?
VOLUN electric heating cloth has been widely used in heating fabric applications (such as heating scarf, heating clothes, heating insole, heating trousers, heating pad, heating blanket, heating carpet).
In addition, our heating carbon cloth is also used in
outdoor products
(
heating tent/sleeping bag)
,
baby products
(baby changing pad, diaper changer)
,
car products
(
seat cushion)
......
Relative products/ Recommended products
Certifications
About US
VOLUN- A worldwide leading supplier of low temperature far infrared radiant heating system and products.
We have been working with
several top universties in china for 10 years, like Chinese academy of sciences, Zhongshan University, Harbin Institute of Technology.
We consistently put about 1 million to improve and develop our product.
We are the first and only enterprise in the world who have research and development the heating film without power atenuation over 50 years. We solved the hard problem of power atenuation in the radiant heating system industry.Consequently, we gained many patents and certifications.
Our factory-Fully automic dust-free work shop
All production facility are designed by oursevles, which makes the product high quality and stable performance.
FAQ
Q1:Is this heating system safe？Is it leakproof and fireproof ?
A1: Yes, it is safe. the shielded bag has the facility to block eletric radiation, as well as provide protection for electrical grounding. and the fireproof connected wire can not burn.
No fire, No spark.
Q2 Is this film and system eco-friendly?
A2:Yes, our heating film was made of recycle PET film and hydrolyzable nano carbon paste. It will just reflect far infrared radiant heat and will not produce harmful substance during operation. no environment pollution.
Q3 Is this heating system efficient?
A3:Yes, our floor heating system is energy-efficient, low installed power with high heat conversion rate over 99.69%,the other ordinary heating film just only over 70%. And you can use the measurable thermostat to handle your cost.
Q4 Will the power down after I use it for some time? Will the floor heating system not warm enough?
A4 Compare with the general heating films in the marke, our heating film can be used 50 years and power without decay, Our heating film heat conversion rate over 99.69%, you don't need to worry about the room not warm enough
Q5 Can I get a free sample for testing ?
A5. Yes, You can palce an free sample order.
