New And Used 4 Rows corn cob Harvester Second Hand Maize Combine Harvester Machine with Factory Price

New And Used 4 Rows corn cob Harvester Second Hand Maize Combine Harvester Machine with Factory Price

FOB Reference Price: Get Latest Price

≥1 Sets

US $18500

≥3 Sets

US $18000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: Second hand corn harvester

Function:: Used harvest maize corn

Keywords:: second hand corn maize wheel combine harvester price

Engine power:: 240HP

cutter:: 4 rows

Productivity:: 0.5-1ha/h

Advantage:: High Effiency

weight:: 8700kgs

Color:: Red

After Warranty Service:: 12 months

Quick Details

Year:: 2021

Weight:: 8600 KG

Working hours:: 100-300 hours

Product name:: Second hand corn harvester

Function:: Used harvest maize corn

Keywords:: second hand corn maize wheel combine harvester price

Engine power:: 240HP

cutter:: 4 rows

Productivity:: 0.5-1ha/h

Advantage:: High Effiency

weight:: 8700kgs

Color:: Red

After Warranty Service:: 12 months

PRODUCT OVERVIEW

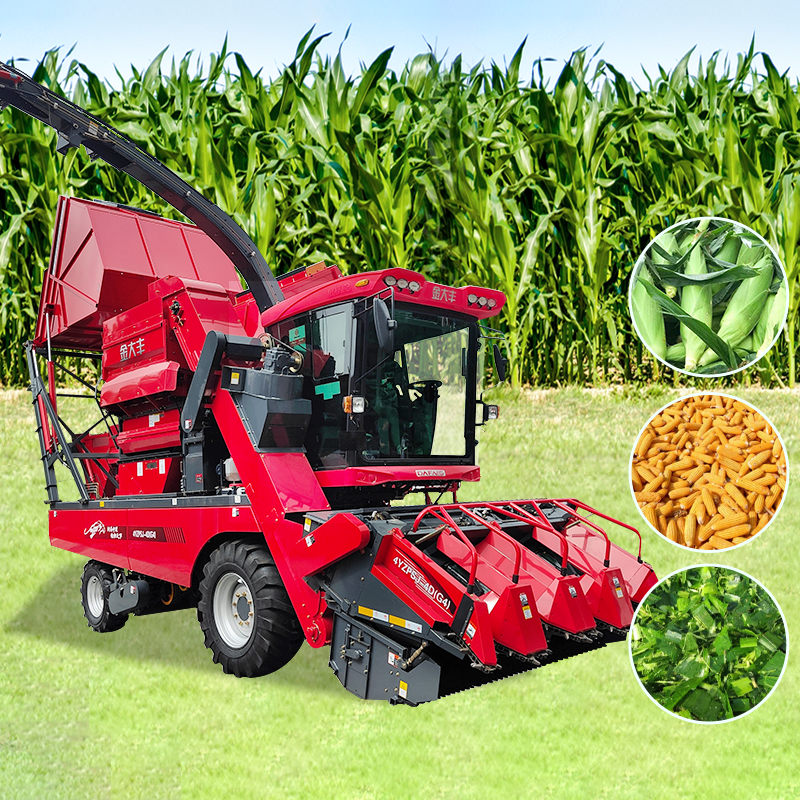

New And Used 4 Rows corn cob Harvester Second Hand Maize Combine Harvester Machine

Dafeng 4YZ Corn harvester i s a machine that used to pick the Corn cob. The combine harvester combines three separate operations: finish picking, stacking and returning the stalk to the field at one time when the corn is mature.

A corn harvester was used to pick ears under the growing condition of corn. Under the action of picking roller and picking board, the stalk was pulled off and The ear falls into the ear box. At the same time, the rotating cutter cuts the straw from the root and enters the crushing mechanism to chop into 3-5CM long pieces, and the straw falls naturally after being chopped.

1、Function: corn picking + peeling + corn straw cutter and chopped

2、Grain to be collected automatically and fell in down tray while peeling

3、Compact structure, small turning radius, is suitable for small farmland

4、can cross rows to collect the maize

5、High rate of peeling, less broken grain, The cutting effect is perfect

6、Named brand engine, enough power; Strong gearbox and reliable

7、Luxury cab brings comfortable working environment; Visual imaging system

Left elevation

Front elevation

Right elevation

PRODUCT SPECIFICATIONS

Corn Combine Harvester
No	Model	Unit	4YZP-4FA
1	Cutting width (mm)	mm	4
2	Power	HP	240
3	Dimension	mm	700026003400
4	Weight	Kg	8600
5	Row width	mm	450-750
6	Working efficiency	hm2/h	0.5-0.8
7	Grain tank	L	2600
8	Max. unloading height	mm	10/75-15.3
9	video surveillance	/	Y
