Quick Details
-
Current draw::
-
12V/500mA or 24V/250mA
-
Holding force::
-
180kg(600Lbs)
-
Voltage::
-
12 OR 24VDC
-
Suitable for::
-
Wooden door , Glass door ,Metal door , Fireproof door
-
Material:
-
Aluminum Alloy
-
Product Name:
-

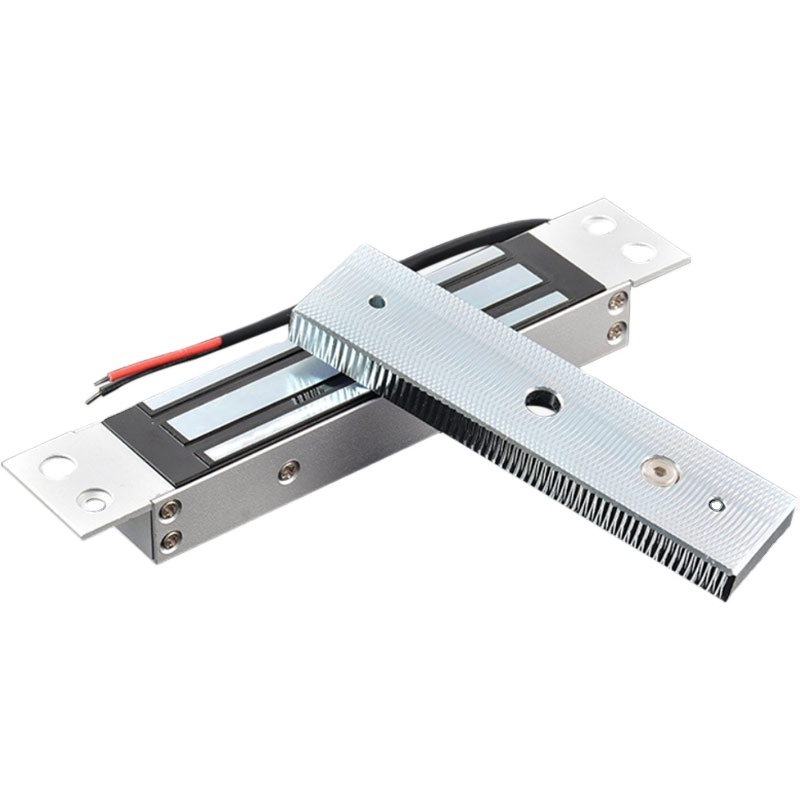

Magnetic Lock
-
Application:
-
Wide Application
-
MOQ:
-
1 Piece
-
Weight:
-
0.9KG
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JL
-
Door status signal output::
-
NO/NC/COM
-
Current draw::
-
12V/500mA or 24V/250mA
-
Holding force::
-
180kg(600Lbs)
-
Voltage::
-
12 OR 24VDC
-
Suitable for::
-
Wooden door , Glass door ,Metal door , Fireproof door
-
Material:
-
Aluminum Alloy
-
Product Name:
-
Magnetic Lock
-
Application:
-
Wide Application
-
MOQ:
-
1 Piece
-
Weight:
-
0.9KG
Specification
|
Size
|
194Lx34Wx22H(mm)
|
|
|
||
|
Armature Plate Dimension
|
130Lx32Wx11H(mm)
|
|
|
||
|
Holding Force
|
180kg(350Lbs)
|
|
|
||
|
Input Voltage
|
12 or 24VDC
|
|
|
||
|
Current
|
12V/500mA or 24V/250mA
|
|
|
||
|
LED
|
Red indicates the door is unlock,Green indicates the door is lock
|
|
|
||
|
Door status signal output
|
NO,NC,COM
|
|
|
||
|
Suitable
|
Wooden door , Glass door ,Metal door , Fireproof door
|
|
|
||
|
Surface Temp
|
≤+20℃
|
|
|
||
|
Operating Temp
|
-10~+55℃(14-131F)
|
|
|
||
|
Humidity
|
0~90%(non-condensing)
|
|
|
||
|
Cover Finish
|
Anodized aluminum
|
|
|
||
|
Lock Finish
|
Zinc
|
|
|
||
|
Armature Plate Finish
|
Zinc
|
|
|
||
|
Weight
|
0.9KG
|
|
|
||
