Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RUIDA
-
Dimensions(L*W*H):
-
Custom
-
Weight:
-
2000 KG
-
Certification:
-
CE Certification
-
Product Name:
-
6 color 14 stations automatic T shirt silk screen printing machine
-
Pallet Size:
-
500x700mm
-
Phase:
-
3PH/2PH
-
Packing Details:
-
1 strong polywood case (97*58*34mm) 1 strong plywood box(68*68*80mm)
-
Micro Registration:
-
With
-
Pallets:
-
Aluminum
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Voltage:
-
220v/110v
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RUIDA
-
Dimensions(L*W*H):
-
Custom
-
Weight:
-
2000 KG
-
Certification:
-
CE Certification
-
Product Name:
-
6 color 14 stations automatic T shirt silk screen printing machine
-
Pallet Size:
-
500x700mm
-
Phase:
-
3PH/2PH
-
Packing Details:
-
1 strong polywood case (97*58*34mm) 1 strong plywood box(68*68*80mm)
-
Micro Registration:
-
With
-
Pallets:
-
Aluminum
-
Marketing Type:
-
Ordinary Product
Product Description

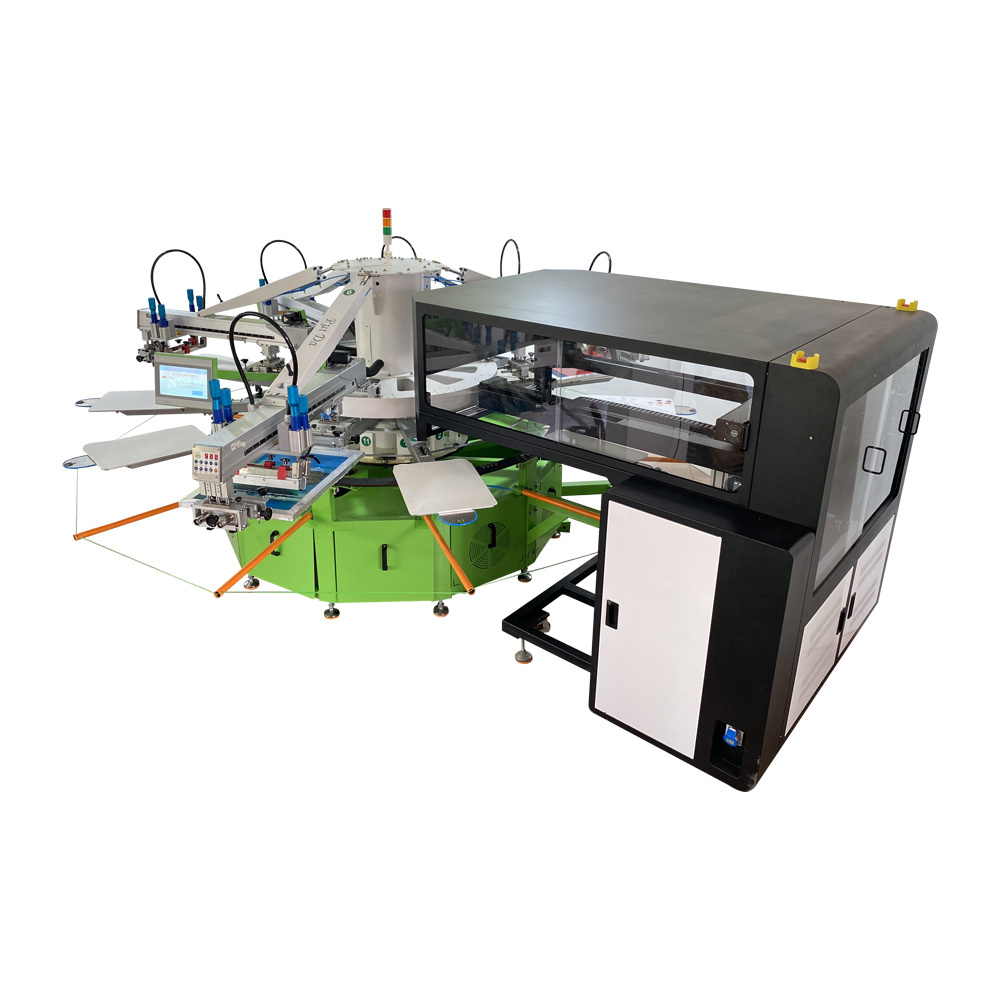

NM6014 6 Color 14 Station Screen Printer
PAYMENT TERM:T/T 30% deposit payment ,T/T 70% before delivery after inspecting at site or by video.
LEAD TIME : 30 working days after received the deposit.
Warranty: 12 months Warranty for the equipment and 3 years for spare parts,During warranty, parts free to change. Engineer available to serve machines overseas.
• 6 color 14 stations automatic T shirt silk screen printing machine with 6 flash dryers
Warranty: 12 months Warranty for the equipment and 3 years for spare parts,During warranty, parts free to change. Engineer available to serve machines overseas.
• 6 color 14 stations automatic T shirt silk screen printing machine with 6 flash dryers
• Pallet size : 500x700mm
Max frame size:550x830mm
• Max printing area: 450x600mm
• Voltage：220v • Phase：3PH/2PH
• Automatic Grade: Automatic • Gross Power: 4.4KW •
Gross Weight : 1500KG
Gross Weight : 1500KG
• Packaging Details: 3 strong plywood box(214*214*185CM 8.472CBM) (2PCS 170*110*72CM 2.693CBM)
total11.165cbm
Hybrid Digital Printing Machine
Equipment model:Digital Printing Machine
Working environment :Temperature:20°C~28°C
Print Heads: 4 heads / Epson I3200
Working environmen :Humidity40%~60%
Ink colors: Cyan, Magenta, Yellow, Black
Print mode:Unidirectional and waveform bidirectional
Max. print area: 500 mm x 700 mm
Applicable fabrics:Cotton, linen, nylon, terylene
Production speed:± 200 pcs per hour
RIPsoftware :Photo Print/Wasatch/Neostampa special/ printing RIP software
Maximum thickness of medium: 25 mm
Printheadmaintenance: Automatic moisturizing, automatic cleaning, automatic scraping system
Dimension (LxWxH):1820 mm x 1560 mm x 1300 mm
Input format:JPEG/TIFF file format RGB/CMYK color mode
Machine Weight:1500 kg
Printing resolution:720 x 720 DPI;720 x 1080 DPI;360 x 1080DPI
Power requirement:AC220V/single-phase；/50/60HZ
Ink type / capacity:Textile pigment ink；5L
Power consumption:0~ 400 W
Ink supply system :Automatic negative pressure ink supply system
200 to 250pcs/hour
Description:
A screen printing machine must be robust, fast, reliable and precise. The RUIDA PRINT is all of that and more. It is a performer.
Elegant, the RUIDA PRINT draws its strengths from the clever engineering applied on to it by RUIDA. This screen printing machine uses top quality materials and best practices during its production. Innovating many times the processes and technics RUIDA has improved the quality of its screen printing machines for over 3 decades now. Today the aim is the same that it was in the beginning as S. Roque. to create, produce and deliver top quality machines that last for decades.
With a maximum production of 1000 pieces per hour, this screen printing machine shows its versatility in the immense configurations in that it can be offered. From a minimum of 8 pallets up to 20 pallets and from 1 color up to a maximum of 18 colors. From 400mm x 500mm up to 700mm x 1000mm the RUIDA PRINT answers the market needs. And has it is the RUIDA slogan, if by any chance a request for a configuration outside the box shows up, “RUIDA creating solutions”.
The RUIDA PRINT was not only built to last for ages and to be precise. It is also a screen printing machine extremely user friendly. It uses proprietary software created with the collaboration of several of our customers. It’s a system built by printers for printers. Every print head has its own control panel but the whole machine can be controlled from the central console. Every preferic (RUIDA flash, RUIDA foil, RUIDA flock) is connected to the machine structure and all the flux of information can be controlled from this central console allowing for very fast setup times. As an addition, using the PRU (Positive Registration Unit) the setup times will be even smaller making the whole operation more efficient.
So as a sum up, if you print and need more, most probably the screen printing machine RUIDA print You is the answer for you. Fast, reliable, precise and durable. The RUIDA PRINT adapts to your screen printing needs and increases the value of your finished product.
Features:
Aluminum honeycomb pallets;
Squeegees with electric movement with ac variator;
Independent control panel on all print heads;
Choice of pneumatic screen holder: ”U” clamp or pin system;
Print head central elevation;
Frequency drive rotation system for a quick and smooth index;
Print heads with high-lift position for quick and easy screen cleaning;
Central control panel with polycromatic LCD touch screen;
Micro registration screen system with vernier scale;
Individual controls for managing print and flood speed, height and angle of the squeegees and stroke length.
Options:
YOU Vacuum Version, with Suction Pallets;
Laser Markers;
Power and Control Connections for Flash are built into the machine base;
Flash Cure units;
Compatible with RUIDA FLOCK;
Compatible with RUIDA FOIL;
Skip Function.
