Quick Details
-
Brand Name:
-
GOGO
-
Standard or Nonstandard:
-
Standard
-
Max Media Temperature:
-
80°C
-
type:
-
Normally close
-
Action mode:
-
direct action
-
For:
-
Water, liquid etc.
-
Voltage:
-
AC12V 24V 42V 36V 110V/120V 220V/230V; DC 12V 24V
-
Sealing materials:
-
NBR
-
Working pressures:
-
0.2-10bar
Quick Details
-
Port Size:
-
G 2"
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
ZCS-08P
-
Brand Name:
-
GOGO
-
Standard or Nonstandard:
-
Standard
-
Max Media Temperature:
-
80°C
-
type:
-
Normally close
-
Action mode:
-
direct action
-
For:
-
Water, liquid etc.
-
Voltage:
-
AC12V 24V 42V 36V 110V/120V 220V/230V; DC 12V 24V
-
Sealing materials:
-
NBR
-
Working pressures:
-
0.2-10bar

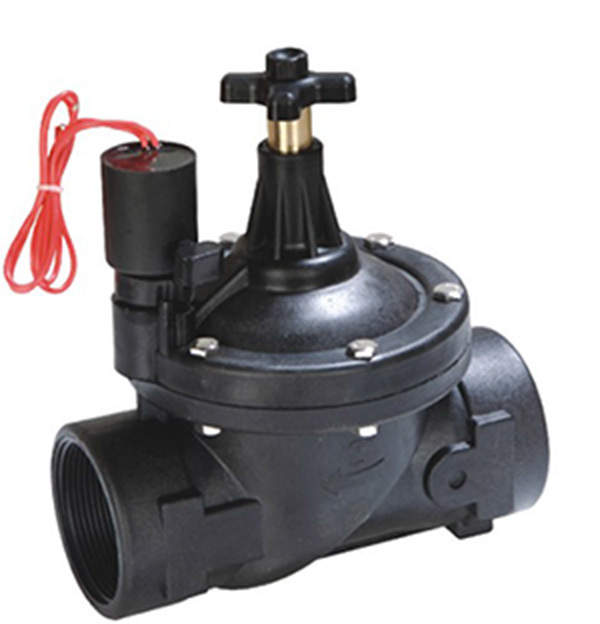

2 way with flow control plastic 2 inch water solenoid valve for irrigation
Specification
2/2 way with flow control, maual set , apply in water and other liquid
|
body material |
Nylon (reinforced with 30% glass-fiber) |
|
Structure |
pilot |
|
Type |
Normally closed |
|
seal materials |
|
|
port size |
2 '' |
|
Port thread |
BSP |
|
Orifice |
2mm, 20mm, and more |
|
Temperature |
0 ° c to 80 ° c |
|
Medium |
Air |
|
Pressure |
0.02-1.0MPa |
|
Voltage |
Dc-12v, 24 v,
Others on request |
|
Tolerance |
± 10% |
|
Coil |
Ip 65, and
100%
|
1.Inner packing: opp bag, then carton box for each product 2. Outer packing: export standard carton, Foam outside protecting the goods against damage 3. Usually we ship your order by sea or by air... 4. We do our best to ship your order within 1 week after receiving your payment 5. We'll tell you the tracking number once your order has been sent 6. We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal
