Quick Details
-
Application:
-
Food Processing Industry
-
Color:
-
Silver gray
-
Certificate:
-
ISO/CE
-
Warranty:
-
12 Months
-
Power supply:
-
110V - 220V
-
Material:
-
SUS 304 Stainless Steel
-
Power Supply:
-
AC220V(Optional)
-
Display Screen:
-
Full-color TFT 15'' Touch Screen
-
Conveyor Speed:
-
10-70m/min
Quick Details
-
Power:
-
Electronic
-
Place of Origin:
-
Shanghai, China
-
Product name:
-
Super sensitive pcb x ray inspection machine
-
Application:
-
Food Processing Industry
-
Color:
-
Silver gray
-
Certificate:
-
ISO/CE
-
Warranty:
-
12 Months
-
Power supply:
-
110V - 220V
-
Material:
-
SUS 304 Stainless Steel
-
Power Supply:
-
AC220V(Optional)
-
Display Screen:
-
Full-color TFT 15'' Touch Screen
-
Conveyor Speed:
-
10-70m/min

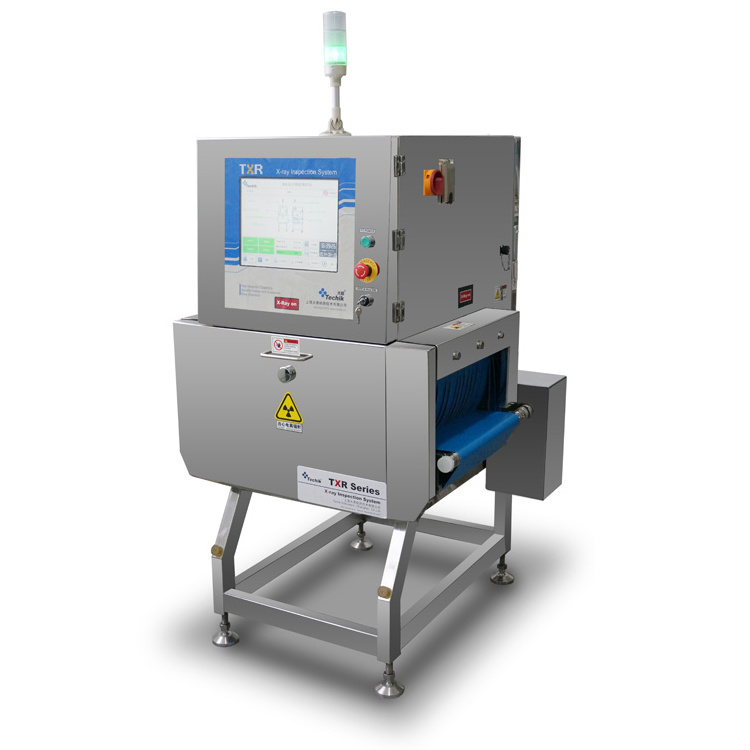

X-ray Inspection System For Food
|
Model |
Standard TXR Series |
|||||||
|
Standard |
2480 |
4080 |
4080L |
4080S |
4080SL |
4080SH |
5080SH |
6080SH |
|
X-ray Tube |
MAX. 80kV, 150W |
MAX.80kV, 210W |
MAX. 80kV,350W |
|||||
|
Inspection Width |
240mm |
400mm |
500mm |
600mm |
||||
|
Inspection Height |
110mm |
160mm |
100mm |
160mm |
100mm |
220mm |
250mm |
300mm |
|
Best Inspection Sensitivity |
Stainless steel ball Φ 0.3mm Stainless steel wire Φ 0.2*2mm Glass/Ceramic ball Φ 1.0mm |
Stainless steel ball Φ 0.4mm Stainless steel wire Φ 0.2*2mm Glass/Ceramic ball Φ 1.0mm |
||||||
|
Conveyor Speed |
10-60m/min |
10-40m/min |
||||||
|
Operation System |
Windows 7 |
|||||||
|
Protection Method |
Soft curtain |
|||||||
|
X-ray Leakage |
< 1 μSv/h (CE Standard) |
|||||||
|
Level of Protection |
IP66(Under belt) |
|||||||
|
Working Environment |
Temperature: -10~40℃ Cooling Mode: industrial air conditioning |
|||||||
|
Humidity:30~90% no dew |
||||||||
|
Rejecter Mode |
Sound and light alarm, belt stops ( Rejecter optional ) |
|||||||
|
Air Pressure |
0.8 Mpa |
|||||||
|
Power Supply |
1.5kVA |
|||||||
|
Main Material |
SUS304 |
|||||||
|
Surface Treatment |
Mirror polish/Sand blasting |
|||||||
Note :
The technical parameter above namely is the result of sensitivity by inspecting only the test sample on the belt. The actual sensitivity would be affected according to the products being inspected.
