Quick Details
-
Model Number:
-
C-40D~C-1824D
-
Voltage:
-
380V
-
Power:
-
Electric
-
Dimension(L*W*H):
-
10.58*2.74*10.15
-
Weight:
-
2-20 Tons
-
Features:
-
API 11E Spe
-
Warranty:
-
5 years
-
Certification:
-
API 11E
-
Stroke length:
-
48in~240in
-
Stroke frequency:
-
4~12
-
Balances type:
-
crank balanced
-
Wire line type:
-
6*37IWR-1770MPa
-
Crank direction:
-
Clockwise and Counterclockwise
-
Gear reducer lubricant:
-
120# gear lubricant in winter,200# gear lubricant in summer
-
Gear type:
-
Involute gear reducer;double circular arc gear reducer
Quick Details
-
Production Capacity:
-
100%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SJ
-
Model Number:
-
C-40D~C-1824D
-
Voltage:
-
380V
-
Power:
-
Electric
-
Dimension(L*W*H):
-
10.58*2.74*10.15
-
Weight:
-
2-20 Tons
-
Features:
-
API 11E Spe
-
Warranty:
-
5 years
-
Certification:
-
API 11E
-
Stroke length:
-
48in~240in
-
Stroke frequency:
-
4~12
-
Balances type:
-
crank balanced
-
Wire line type:
-
6*37IWR-1770MPa
-
Crank direction:
-
Clockwise and Counterclockwise
-
Gear reducer lubricant:
-
120# gear lubricant in winter,200# gear lubricant in summer
-
Gear type:
-
Involute gear reducer;double circular arc gear reducer

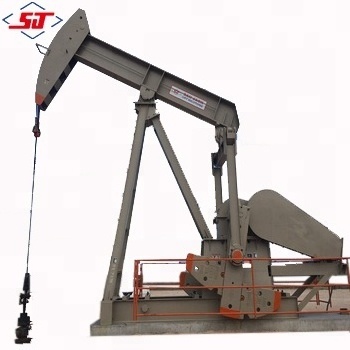

API 11E Oil Field Pumping Units Oil Pump Jack for Sale
With 30 years of experience, Shengji is devoted to designing, researching and developing pumping units. It has an annual sales volume up to 1200 units. Shengji pumping unit cover API conventional and unconventional pumping units. Relying on technical strength, complete equipment, scientific production fixture and strict production process, Shengji has become a pumping unit supplier for most famous companies globally. This is based on first-class quality, such as: Sentry, Shores, Schlumberger, PDO, OMV, etc. With the high quality, low failure rate and 5-year long life span, Shengji pumping unit is widely acclaimed by customers.
Shengji can provide a wide range of API pumping units depending on users’ requirements. They come with a 5-year warranty. Shengji API units are available according to customer requests. They can choose from double circular arc gear reducer or involute gear reducer. Shengji has nearly 200 pumping unit processing equipment and a complete production tooling that guarantees accuracy in the manufacturing process. For example, all kinds of raw materials, welding and positioning tooling, parts assembly tooling, welding anti distortion, etc. Shengji pumping unit has the following key parts: crank pin, taper sleeve and a tailstock.
By improving the supporting equipment, scientific processing technology, strict quality control,superb technical level, Shengji API pumping units are also suitable for inferior working conditions. These API pumping units are reliable and stable, hence their popularity among customers since Shengji uses forging for key parts.
Shengji exports more than 600 API pumping units annually with most products sold to reputable companies such as PDO, CENTRY, SHORESS, Schlumberger, OMV. Shengji pumping units have low failure rates.
2.Reducer with API production qualification.
3.Complete production tooling.
4.The use of forgings in key parts.
5.5 years warranty.
|
NO. |
Model |
Load Rating (lbs) |
Stroke length (in) |
Stroke frequency (min -1 ) |
Balanced type |
Gear Reducer type |
|
1 |
C-40D-76-48 |
7600 |
48;37;26 |
6;9;12 |
Crank balanced |
Involute gear reducer, double circular arc gear reducer |
|
2 |
C-57D-76-54 |
7600 |
54;41;28 |
6;9;12 |
||
|
3 |
C-80D-133-54 |
13300 |
54;43;31 |
6;9;12 |
||
|
4 |
C-80D-119-64 |
11900 |
64;52;40 |
6,8,10 |
||
|
5 |
C-114D-119-86 |
11900 |
86;76;59 |
6,8,10 |
||
|
6 |
C-114D-143-64 |
14300 |
64;52;40 |
6,8,10 |
||
|
7 |
C-114D-143-74 |
14300 |
74;62;50 |
6,8,10 |
||
|
8 |
C-160D-173-86 |
17300 |
86;74;61 |
6,8,10 |
||
|
9 |
C-160D-200-76 |
20000 |
76;62;51 |
6,8,10 |
||
|
10 |
C-228D-213-120 |
21300 |
120;102;85 |
5,7,9 |
||
|
11 |
C-228D-246-86 |
24600 |
86;74;61 |
5,7,9 |
||
|
12 |
C-228D-173-100 |
17300 |
100;86;71 |
5,7,9 |
||
|
13 |
C-320D-305-120 |
30500 |
120;102;85 |
5,7,9 |
||
|
14 |
C-320D-256-120 |
25600 |
120;100;86 |
5,7,9 |
||
|
15 |
C-456D-305-120 |
30500 |
120;102;85 |
5,7,9 |
||
|
16 |
C-456D-305-144 |
30500 |
144;124;106 |
4,6,8 |
||
|
17 |
C-640D-365-144 |
36500 |
144;124;106 |
4,6,8 |
||
|
18 |
C-640D-365-168 |
36500 |
168;142;116 |
4,6,8 |
||
|
19 |
C-640D-305-168 |
30500 |
168;142;116 |
4,6,8 |
||
|
20 |
C-640D-365-192 |
36500 |
192;164;136;110 |
4,5,6 |
||
|
21 |
C-912D-365-144 |
36500 |
144;124;106 |
4,6,8 |
||
|
22 |
C-912D-365-168 |
36500 |
168;142;116 |
4,6,8 |
||
|
23 |
C-912D-305-192 |
30500 |
192;168;135;120,95,74 |
4,5,6 |
||
|
24 |
C-912D-365-192 |
36500 |
192;164;136;110 |
4,5,6 |
||
|
25 |
C-912D-427-144 |
42700 |
144;124;106 |
4,6,8 |
||
|
26 |
C-912D-427-168 |
42700 |
168;142;116 |
4,6,8 |
||
|
27 |
C-912D-427-192 |
42700 |
192;164;136;110 |
4,6,8 |
||
|
28 |
C-1280D-365-192 |
36500 |
192;164;136;110 |
4,5,6 |
||
|
29 |
C-1280D-427-192 |
42700 |
192;164;136;110 |
4,5,6 |
||
|
30 |
C-1280D-427-216 |
42700 |
216,192;168;144 |
4,5,6 |
||
|
31 |
C-1280D-427-240 |
42700 |
240;207;175;145 |
4,5,6 |
||
|
32 |
C-1824D-427-192 |
42700 |
192;164;136;110 |
4,5,6 |
||
|
33 |
C-1824D-427-216 |
42700 |
216;192;168;145 |
4,5,6 |
