Quick Details
-
Engine type:
-
4-stroke
-
Certificate:
-
ISO CE
-
Warranty:
-
12 Months
-
Bore x Stroke:
-
2-80x79mm
-
Fuel Capacity:
-
20L
-
Max. output:
-
30 HP
-
Starting system:
-
Electric Start
Quick Details
-
Engine Capacity:
-
1 - 2L
-
Product Name:
-
Diesel Outboard Engine
-
Displacement:
-
0.8L
-
Engine type:
-
4-stroke
-
Certificate:
-
ISO CE
-
Warranty:
-
12 Months
-
Bore x Stroke:
-
2-80x79mm
-
Fuel Capacity:
-
20L
-
Max. output:
-
30 HP
-
Starting system:
-
Electric Start

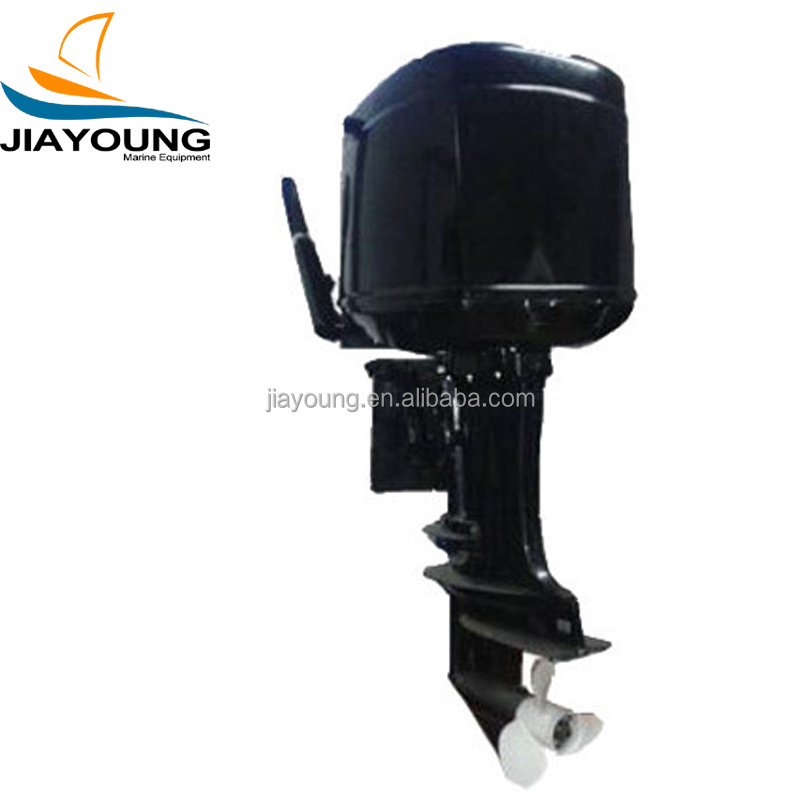

30HP 4 Stroke Diesel Outboard Boat Engine
Product Description
Diesel outboard engine details:
1. 4 stroke, diesel engine, extremely low oil consumption,
2. Well adapted for whole day, safe and reliable
3. Good performance for continuation ability
4. Compaction design, low weight, small dimension
5. Easy to start, using convenient, simple maintenance
6. Save fuel: comparing to gasoline engine with the same power,the maximum fuel consumption is only 2-3L per hour. It saves more than 50% fuel
7. Environmentally friendly, widely used: CE, ISO9001,CCS certificated
30hp diesel outboard engine parameter:
Engine Type:v-double cylinder, 4 stroke, water cooled, direct injection
Bore x Stroke (mm x mm) : 2-80×79mm×mm
Displacement of Piston (L):0.80L
Rated Speed of Output Shaft (rpm) ::4500r/min
Max Output power KW/Ps : 22(30)/r/4500/min
Rated Output power KW/Ps :21/r/4500/min
Direction of Output Rotatio: Anticlockwise (from the output side)
Valve Clearance (mm) :0.1-0.15(cold position)
Starting Way :Electric Start
Fuel Kgf/cm2(Mpa) : 220-230(21.6-22.6)
Fuel Supply Advance Angle:200±10
Fuel Capacity(L) :20
Fuel Mark:NO.0(Summer)/ No.-10(Winter)
Method of Lubrication:Pressure Splash Compound
Lubrication Oil :SAE10W-30, Level CC above
Lubrication Oil Capacity(L) :2.5
Engine Size (LxWxH) (mm) :525×391×459
Engine Net Weight (Kg): ≤62Kg
Machinery Net Weight (Kg):≤120Kg
Speed of Impeller: >2000r/min
Diameter of Impeller:11"
Transmission Fluid :Middle Duty Industrial Gear Oil HL-20
Transmission Capacity:3L
Related Products
Chongqing Jiayoung Marine Co., Ltd can supply 20HP,25HP, 30HP, 35HP, 40HP, 60HP.
