Quick Details
-
Brand Name:
-
Anytester
-
Model Number:
-
AT491
-
Number of test cavity:
-
1
-
Measuring range:
-
0.1~10000g/m2.24h
-
Measuring accuracy:
-
0.0001 g/m2 .24h
-
Temperature range:
-
10℃~55℃
-
Temperature accuracy:
-
0.1℃
-
Humidity range:
-
≤10%RH drying method
-
Humidity:
-
±2%RH
-
Test area:
-
50.24 cm2
-
Sample size:
-
Dia. 90 mm
-
Standard:
-
ASTM E96, ISO 2528
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Anytester
-
Model Number:
-
AT491
-
Number of test cavity:
-
1
-
Measuring range:
-
0.1~10000g/m2.24h
-
Measuring accuracy:
-
0.0001 g/m2 .24h
-
Temperature range:
-
10℃~55℃
-
Temperature accuracy:
-
0.1℃
-
Humidity range:
-
≤10%RH drying method
-
Humidity:
-
±2%RH
-
Test area:
-
50.24 cm2
-
Sample size:
-
Dia. 90 mm
-
Standard:
-
ASTM E96, ISO 2528
Product Description

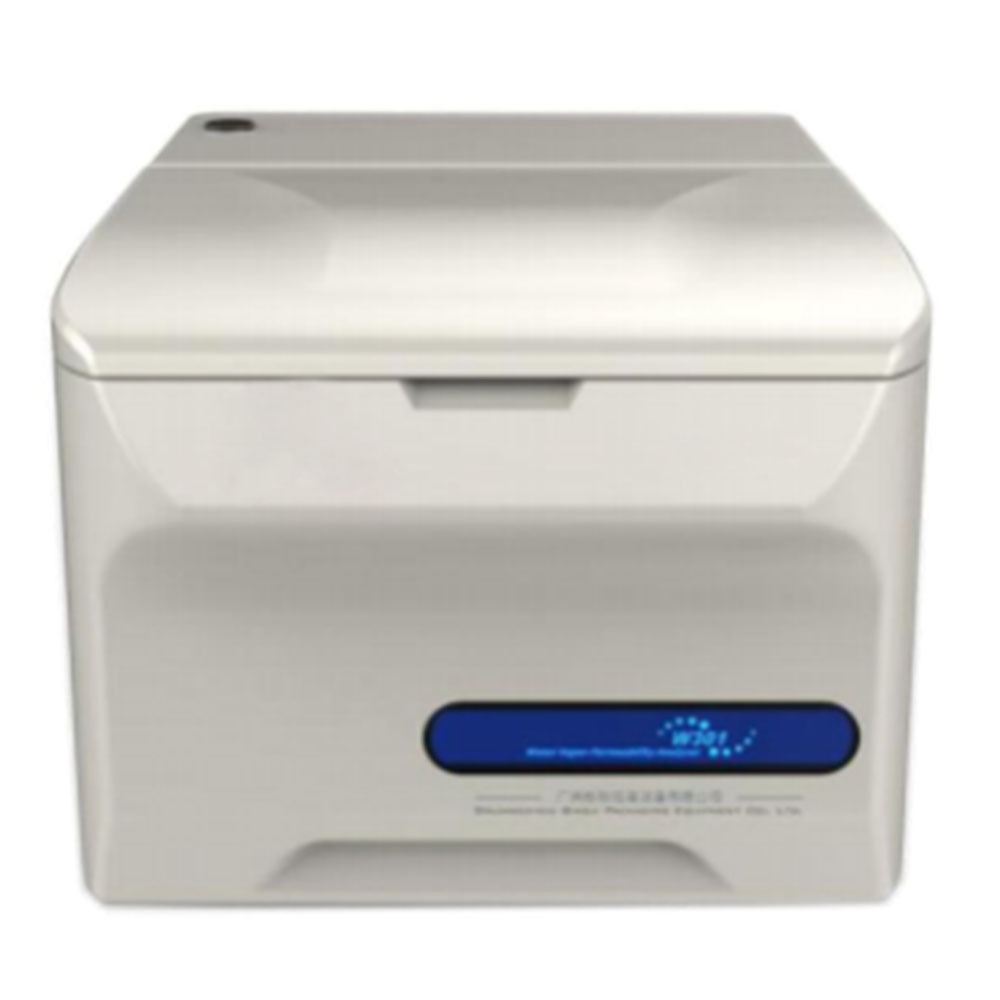

AT491 Water Vapor Permeability Tester
is based on the test principle of the gravimetric method (weight loss),and is developed, designed and manufactured in accordance with ASTME96 and other standards. It is suitable for the water vapor transmission performance test of films, sheets, paper, packaging and related materials in the fields of food, medicine, medical equipment, daily chemicals, photovoltaic electronics, etc. It provides high, medium and low water vapor barrier materials Wide-range, high-efficiency water vapor transmission rate detection.
|
Technical Specification
|
|
|
|
Model
|
AT491
|
|
|
Number of test cavity
|
One
|
|
|
Measuring range
|
0.1~10000g/m2﹒24h
|
|
|
Measuring accuracy
|
0.0001 g/m2﹒24h
|
|
|
Temperature range
|
10℃~55℃
|
|
|
Temperature accuracy
|
0.1℃
|
|
|
Humidity range
|
≤10%RH drying method
|
|
|
Humidity
|
±2%RH
|
|
|
Test area
|
50.24 cm2
|
|
|
Sample size
|
Φ90 mm
|
|
|
Sample thickness
|
≤3mm
|
|
|
Sample diameter
|
¢90mm (test area: 50.24cm2)
|
|
|
Power supply
|
AC220V 50Hz, 500W
|
|
Details & Features
★ High precision load cell
1.The instrument is equipped with a high-precision weighing sensor, with high weighing efficiency, stable performance, high precision, and a resolution of 0.0001 g/(m2·24h).
★ Precise control of temperature and humidity
1.Electromagnetic program stepping technology accurately controls temperature, imported temperature and humidity sensor, automatic heating and cooling, temperature control accuracy of ± 0.1 ℃, humidity accurate to ± 2%RH.
★Meet the needs of high-throughput, wide range and high-applicability testing
1.Equipped with a single chamber, which is small and flexible, and the test efficiency is high.
2.Measuring range of 0.1~ 10000 g/(m2·24h), wide range, to meet the test needs of high, medium and low barrier materials, plus suitable accessories, can measure the water vapor transmission of bottles, bags, bowls and other containers
★ Excellent shape, convenient control, real-time visualization of curves
1.With exquisite 3D printed shell, smooth lines, the instrument is fashionable and beautiful.
2.The instrument is fully automatic operation, one-button test, automatic judgment, automatic shutdown.
3.Real-time display of transmission - time, temperature - time, humidity - time, flow- time four sets of curves, curves support preview hidden function.
★ Intelligent operating system, global certification
1.Self-developed intelligent operating system, modular illustration, fashion color matching, humanized setting, intuitive and convenient operation.
2.According to GMP appendix computer system design, test process parameters are flexibly set to meet different standard requirements.
3.With the function of audit trail (log trace, test trace) to meet the needs of data traceability. System operation permissions can be set at different levels.
4.Intelligent statistical analysis, support multiple data standard deviation analysis. At the same time, the system can be expanded, such as access to the laboratory LIMS system.
5.Personalized test reports are set on demand, support a variety of formats of data output, support electronic signature function, online submission of audit report function.
6. Global strength certification, can be set in Both Chinese and English languages as needed.
★ Offline or in-line detection;
1.The instrument comes with its own operating system, which can be tested independently from the computer, and the data is automatically processed. The instrument is equipped with a computer interface, and can also be connected to a computer for online testing.
Application
Film
Water vapor transmittance test of various plastic films (PP/PET/PE/PVC/BOPP/CPP, etc.), plastic composite films, paper-plastic composite films, metal composite films, coextruded films, aluminized films, degradable packaging films (PLA/PBAT/PBS, etc.) and other film-like materials
Sheet
Water vapor transmittance test of solid
pharmaceutical hard sheets (PP/PVC/PTP,
etc.), metal composite sheets, rubber sheets
and other flakes.
Paper,cardboard and its composites
Water vapor transmittance test of solid
pharmaceutical hard sheets (PP/PVC/PTP,
etc.), metal composite sheets, rubber sheets
and other flakes.Paper, cardboard and its composites
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
140(L) * 100(W) * 180 (D)
|
|
|
Weight
|
65 Kg
|
|
|
Packaging Details
|
1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
|
|
