Quick Details
-
Brand Name:
-
Jinchuan
-
Model Number:
-
6
-
Product Name:
-
Carbide double edge compound edge milling cutter
-
Application:
-
Woodworking industry cutting
-
Suitable for:
-
High precision on cutting MDF,Particleboard and Solid wood board
-
TRANSPORT:
-
Express/ air transport/ ocean shipping
-
Processing Type:
-
Cutting and cutting
-
Packing:
-
1ps/ Plastic Box
-
Shank Diameter:
-
4/ 6/ 8/ 10/12mm
-
Overall Length:
-
50-100(mm)
-
Feature:
-
The processed side is smooth and free of burrs
-
MOQ:
-
10 Pieces
Quick Details
-
Material:
-
Cemented carbide
-
Coating:
-
Uncoated
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jinchuan
-
Model Number:
-
6
-
Product Name:
-
Carbide double edge compound edge milling cutter
-
Application:
-
Woodworking industry cutting
-
Suitable for:
-
High precision on cutting MDF,Particleboard and Solid wood board
-
TRANSPORT:
-
Express/ air transport/ ocean shipping
-
Processing Type:
-
Cutting and cutting
-
Packing:
-
1ps/ Plastic Box
-
Shank Diameter:
-
4/ 6/ 8/ 10/12mm
-
Overall Length:
-
50-100(mm)
-
Feature:
-
The processed side is smooth and free of burrs
-
MOQ:
-
10 Pieces
Product Overview
Products Description
If you need customized size and tools, please contact us directly
|
Brand
|
Jinchuan
|
|
Product Name
|
Double edge compound edge milling cutter
|
|
Material
|
Tungsten Carbide
|
|
Place
|
Shenzhen
|
|
Feed Rate
|
80%-100%
|
|
Cutting Shape
|
Side and surface processing
|
|
Applicable material
|
Acrylic, PVC, PC, PET, PMMA, MDF Board,Multilayer board, Plastic, Multilayer board, particleboard and all kinds of wood cutting.
|
|
Processing Effect
|
Cleaning surface and edge , sharp cutting edge, and long shelf life
|
|
Processing Suggestions
|
Choose the bits with cutting length of 2-5mm longer than the processing material
|
|
Features
|
Using mirror sharpening technology , large chip removal, sharp cutting edge, long shelf life, smooth surface.
|
FEATURES AT A GLANCE
5A Series Single Flute Down Cut Carbide End Mills imported from Germany
Sharp and wear-resistant, Cleaning Surface, Good chip removal, no sticking to the bits, not easy breaking
All the bits can be customized, please provide CAD drawing
1. Imported Material
2. Precise Cutting and Milling
3. High efficiency
4. Good Chip removal
5. Mirror Technology
PRODUCT SPECIFICATIONS
|
Item No
|
Prodnct Name
|
Shank
(D2)
|
Diameter
(D1)
|
Cutting Length
(L1)
|
Overall Length
(L2)
|
Blade number
|
|
JCSLFHL001
|
Double edge compound edge milling cutter
|
3.175
|
3.175
|
12
|
50
|
2F
|
|
JCSLFHL002
|
Double edge compound edge milling cutter
|
3.175
|
3.175
|
15
|
50
|
2F
|
|
JCSLFHL003
|
Double edge compound edge milling cutter
|
3.175
|
3.175
|
17
|
50
|
2F
|
|
JCSLFHL004
|
Double edge compound edge milling cutter
|
3.175
|
3.175
|
22
|
50
|
2F
|
|
JCSLFHL005
|
Double edge compound edge milling cutter
|
4
|
4
|
12
|
50
|
2F
|
|
JCSLFHL006
|
Double edge compound edge milling cutter
|
4
|
4
|
15
|
50
|
2F
|
|
JCSLFHL007
|
Double edge compound edge milling cutter
|
4
|
4
|
17
|
50
|
2F
|
|
JCSLFHL008
|
Double edge compound edge milling cutter
|
4
|
4
|
22
|
50
|
2F
|
|
JCSLFHL009
|
Double edge compound edge milling cutter
|
4
|
4
|
25
|
50
|
2F
|
|
JCSLFHL0010
|
Double edge compound edge milling cutter
|
4
|
4
|
28
|
55
|
2F
|
|
JCSLFHL0011
|
Double edge compound edge milling cutter
|
4
|
4
|
32
|
60
|
2F
|
|
JCSLFHL0012
|
Double edge compound edge milling cutter
|
6
|
6
|
17
|
50
|
2F
|
|
JCSLFHL0013
|
Double edge compound edge milling cutter
|
6
|
6
|
22
|
60
|
2F
|
|
JCSLFHL0014
|
Double edge compound edge milling cutter
|
6
|
6
|
28
|
70
|
2F
|
|
JCSLFHL0015
|
Double edge compound edge milling cutter
|
6
|
6
|
32
|
75
|
2F
|
|
JCSLFHL0016
|
Double edge compound edge milling cutter
|
6
|
6
|
42
|
90
|
2F
|
|
JCSLFHL0017
|
Double edge compound edge milling cutter
|
6
|
6
|
52
|
100
|
2F
|
|
JCSLFHL0018
|
Double edge compound edge milling cutter
|
8
|
8
|
22
|
60
|
2F
|
|
JCSLFHL0019
|
Double edge compound edge milling cutter
|
8
|
8
|
32
|
70
|
2F
|
|
JCSLFHL0020
|
Double edge compound edge milling cutter
|
8
|
8
|
42
|
80
|
2F
|
|
JCSLFHL0021
|
Double edge compound edge milling cutter
|
10
|
10
|
22
|
60
|
2F
|
|
JCSLFHL0022
|
Double edge compound edge milling cutter
|
10
|
10
|
32
|
80
|
2F
|
|
JCSLFHL0023
|
Double edge compound edge milling cutter
|
12
|
12
|
22
|
70
|
2F
|
|
JCSLFHL0024
|
Double edge compound edge milling cutter
|
12
|
12
|
32
|
80
|
2F
|
|
Noted：
Kindly please contact us directly if you need customized size, and if you don’t know how to choose the size, also inform us the processing material , processing requirements, cutting height, we can recommend you the better size
|

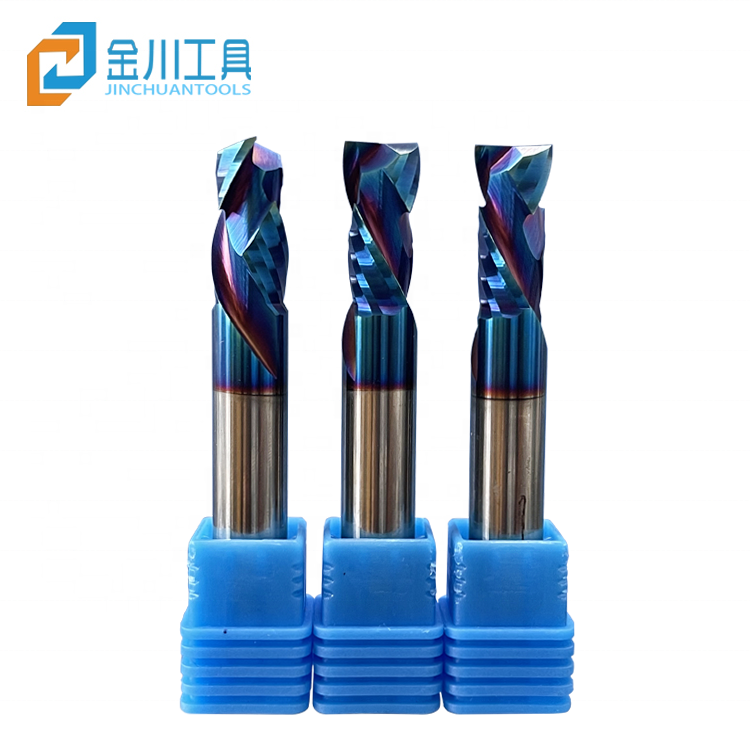

Product real shot pictures
A variety of machines can be processed
Engraving Machine
Precise Engraving machine
CNC Machine
A variety of plates can be applied
