Quick Details
-
After-sales Service Provided:
-
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts, Engineers available to service machinery overseas
-
Product name:
-
Truck mounted crane
-
Oil Tank Capacity:
-
160L
-
swivel angle:
-
360 °
-
Recommend Power:
-
30kw
-
Max elevation:
-
75DEGREE
-
Lifting height:
-
13000mm
-
Installation space:
-
1150mm
-
Certification:
-
ISO
Quick Details
-
Rated Loading Capacity:
-
0-10000kg
-
Max. Lifting Height:
-
2-9.75m
-
Place of Origin:
-
Jiangsu, China
-
After-sales Service Provided:
-
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts, Engineers available to service machinery overseas
-
Product name:
-
Truck mounted crane
-
Oil Tank Capacity:
-
160L
-
swivel angle:
-
360 °
-
Recommend Power:
-
30kw
-
Max elevation:
-
75DEGREE
-
Lifting height:
-
13000mm
-
Installation space:
-
1150mm
-
Certification:
-
ISO

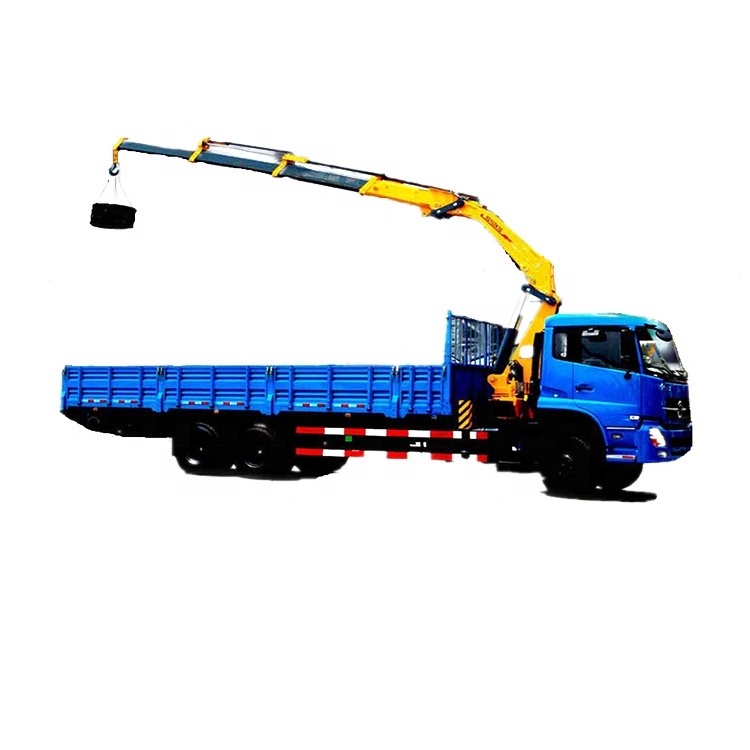

XCMG SQ10ZK3Q 10 ton knuckle boom truck mounted crane for sale
XCMG Truck mounted crane is a kind of hydraulic lift and telescopic system to achieve the goods up and down, rotation, lifting equipment, usually assembled on the truck. Generally by the truck chassis, cargo compartment, take power, crane composition.
1, advanced R & D and analysis means to ensure design reliability.
2, four-link mechanism, lifting capacity stronger.
3, flange telescopic arm connection structure.
4, independent research and development of the rotating body, with a strong driving force, may meet more demand conditions.
5, hexagonal boom technology, good for neutral, cross-section bending ability.
6, the unique floating three-point bridge structure design, effectively reduce the vehicle running when the chassis beam bear the additional force.
| Model | SQ10ZK3Q | Unit | |||
| Max Lifting Moment | 20 | t.m | |||
| Max Lifting Capacity | 10000 | kg | |||
| Recommend Power Needed At Recommend Oil Flow | 28 | kw | |||
| Max Oil Flow of Hydraulic System | 40 | L/min | |||
| Rated Pressure Of Hydraulic System | 28 | MPa | |||
| Oil Tank Capacity | 160 | L | |||
| Rotation Angle | (360°)All Rotation | . | |||
| Crane Weight | 3477 | kg | |||
| Installation Space | 1150 | mm | |||
| Choice of Chassis | DFL1250A9 ; CA1240PK2L7T4EA81; HFC1202KR1K3; EQ5201GFJ6; CA1200PK2L7T3EA80; BJ1317VNPJJ-S5; BJ5253ZKPJJ; CA1253P7K2L11T1E ; EQ1252GFJ; DFL1253AX; | ||||
|
SQ10ZK3Q Lifting capability diagram
|
|||||
| Working radius (m) | 2 | 4.17 | 5.99 | 7.87 | 9.75 |
| Lifting capacity (kg) | 10000 | 4600 | 3050 | 2280 | 1700 |
We supervise the process from the factory to the port designated by the customer to ensure that the customer's products arrive at the destination accurately and safely.
