Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
ManHua
-
Model Number:
-
XB4-BG21
-
Color:
-
Black
-
Application:
-
Control Switch
-
Mechanical Life:
-
1000000 Times
-
Product type:
-
Push Button Swicth
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
10A, 10A
-
Max. Voltage:
-
220VAC
-
Place of Origin:
-
China
-
Brand Name:
-
ManHua
-
Model Number:
-
XB4-BG21
-
Color:
-
Black
-
Application:
-
Control Switch
-
Mechanical Life:
-
1000000 Times
-
Product type:
-
Push Button Swicth

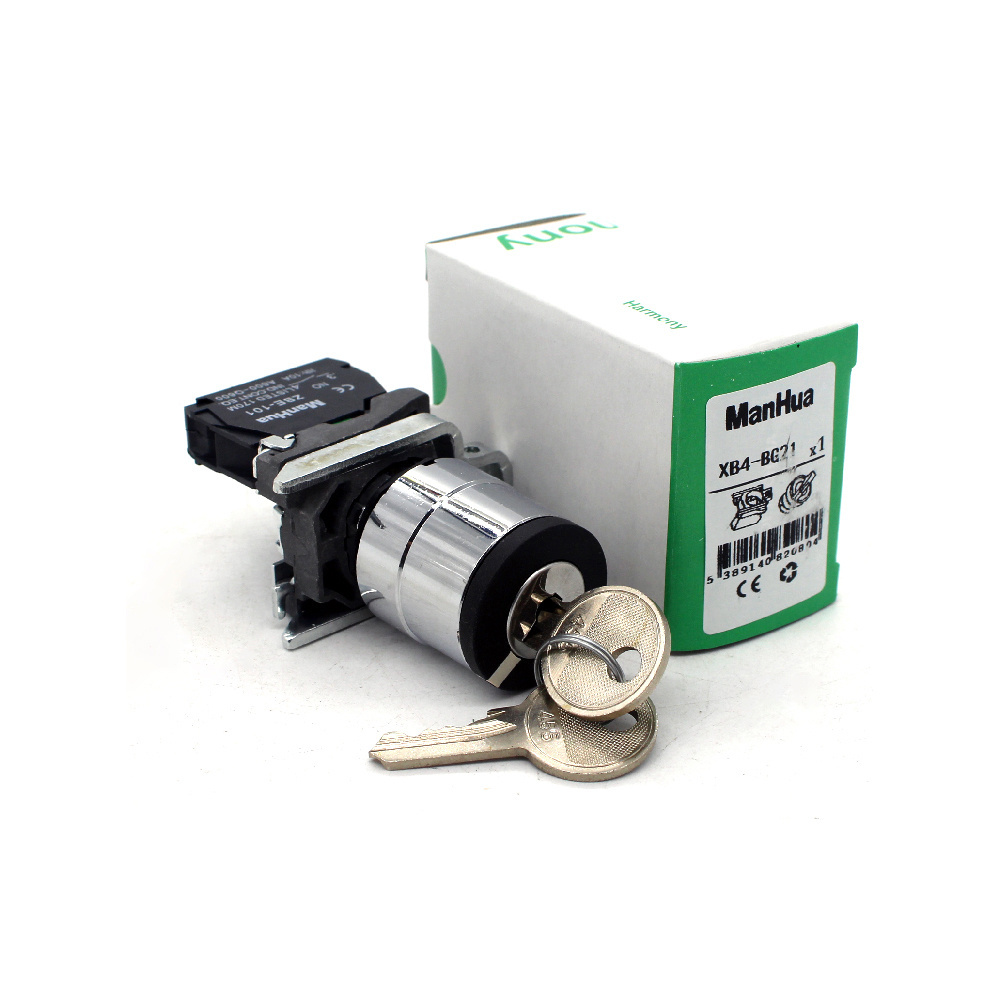

ManHua 2 position with key push button switch XB4-BG21
Product instruction
The push button series are used in controlling circuit of AC 50Hz or 60Hz.voltage to 660V,DC voltage below 400V.It is used for controlling signal and interlocking.
The main adopts zinc alloy and high grade anti-flaming plastic.the contact adopts special silver aloy,so it enjoys high anti-electrical erosion property.
Work environment
1.Surrounding temperature: -25℃∼+55℃
2.Air relative humidity: ≤85%
3.It can be normally work under following condition:Vibration frequency is 2-80Hz and acceleration speed is 0.7g/h
4.Pollution grade is 3,installation sort is III,protection grade is up to IP65.
5.Altitude:≤2000m
| Rated insulation voltage | AC 600V(50Hz/60Hz) | |
| Conventional heating current | 10A | |
| Insulation resistance | ≥50MΩ | |
| Contact esistance | ≤ 25MinΩ | |
| Mechanical life |
1000000 times (pushbutton) |
500000 times (selector switch key switch) |
| Electrical life |
5000000 times (pushbutton) |
250000 times (selector switch key switch) |
