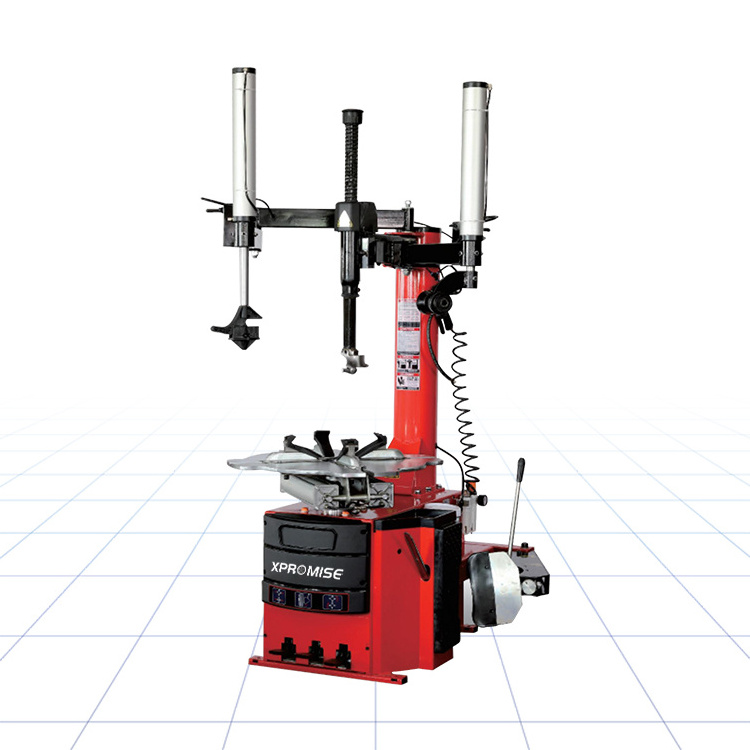

- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XPROMISE
-
Model Number:
-
XP-316B+A950
-
Warranty:
-
18 Months
-
Voltage:
-
110/220/380V
-
Power:
-
0.75/1.1KW
-
Turntable Rotation:
-
7rpm
-
Max Wheel Diameter:
-
1180mm
-
Tire Width:
-
3-14"
-
Rim Clamp From Outside:
-
12-23"
-
Rim Clamp From Inside:
-
15-26"
-
Working Pressure:
-
8-10Bar
-
N.W/G.W:
-
251/279kg
-
Packing Size:
-
1150*900*860mm
Quick Details
-
Motor Power:
-
0.75/1.1KW
-
Operating Pressure:
-
8-10bar
-
Power Supply:
-
110V/220V/380V 50/60HZ
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XPROMISE
-
Model Number:
-
XP-316B+A950
-
Warranty:
-
18 Months
-
Voltage:
-
110/220/380V
-
Power:
-
0.75/1.1KW
-
Turntable Rotation:
-
7rpm
-
Max Wheel Diameter:
-
1180mm
-
Tire Width:
-
3-14"
-
Rim Clamp From Outside:
-
12-23"
-
Rim Clamp From Inside:
-
15-26"
-
Working Pressure:
-
8-10Bar
-
N.W/G.W:
-
251/279kg
-
Packing Size:
-
1150*900*860mm
Product Description
Specification
|
Model
|
XP-316B+A950
|
|
Voltage
|
110/220/380V
|
|
Power
|
0.75/1.1KW
|
|
Turntable Rotation
|
7rpm
|
|
Max Wheel Diameter
|
1180mm
|
|
Tire Width
|
3-14"
|
|
Rim Clamp From Outside
|
12-23"
|
|
Rim Clamp From Inside
|
15-26"
|
|
Working Pressure
|
8-10Bar
|
|
Net Weight
|
251kg
|
|
Gross Weight
|
279kg
|
|
Packing Size
|
1150*900*860mm
|
1. Adjust mobile slider to be suitable for different rim ranges
2. The motion structure of the four self centering clamping jaws on the turntable is link mechanism, which has synchronizing function and self centering function when clamping from outside to inside
3. One-step molding design of mobile slider, made it not easy to deformation
4. The turntable has self centering and fine adjustment function which demount the tire more easy and smooth
5. The noise is low when running
6. Equipped with protective sleeves and pads to working head, clamping jaws, bead breaker, avoid damage to the rim
7. Body design dignified, thick sheet material, strong rigidity
8. Universal bead breaker, more suitable for operation
9. Iron stamping pedal, durable for life (optional aluminum pedal)
10. Equipped with double auto helper arm, easily operation
Details Images
2. Taller vertical post, dismounting max. tire width 330mm.
3. Universal switch. 40A silver contact. more reliable and durable.
4. The hex-angular shaft is made of S41mm steel material, which can avoid the distortion when you operate the 11"-24" stiff tires.
5. Foot pedal assembly is made of high quality steel material which can work for a long time.
6. Clamp is made of fine alloy steel, processed with high-precision, solid and durable.
7. Dismounting head is made of special steel material and equipped with bead pressing device, dismounting low-profile tire without
any aid arm.
8.Optional Motorcycle Accessories.
9.Steel Pressed Pedal.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
