Quick Details
-
Model Number:
-
ZZ-BST03-J
-
Calibration:
-
Type K, J
-
Conductor diameter:
-
2*7/0.20mm
-
Construction:
-
Parallel, Flat
-
Insulation & shield:
-
FB-FB-SSB, FB-SSB
-
Accurancy:
-
Class 1 or Class 2
-
Junction:
-
Grounded, ungrounded
-
Temperature range:
-
0-480℃
-
Lead wire length:
-
1m
-
Bayonet cap ID.:
-
12.40mm
-
Bayonet slot:
-
1 or 2
Quick Details
-
Warranty:
-
2 years
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZONZEN
-
Model Number:
-
ZZ-BST03-J
-
Calibration:
-
Type K, J
-
Conductor diameter:
-
2*7/0.20mm
-
Construction:
-
Parallel, Flat
-
Insulation & shield:
-
FB-FB-SSB, FB-SSB
-
Accurancy:
-
Class 1 or Class 2
-
Junction:
-
Grounded, ungrounded
-
Temperature range:
-
0-480℃
-
Lead wire length:
-
1m
-
Bayonet cap ID.:
-
12.40mm
-
Bayonet slot:
-
1 or 2
Descriptions:

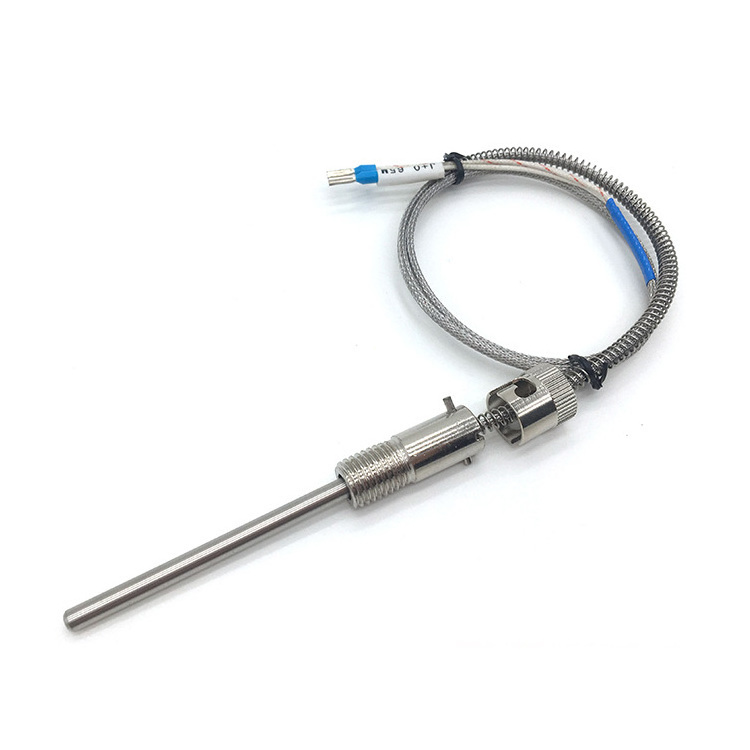

A Bayonet Thermocouple is a general purpose temperature sensor which uses a Bayonet type mounting for process connection. The adjustable bayonet cap allows the sensor to have a positive pressure at the tip when installed correctly.
Features:
. Good heat transfer through adjustable spring pressure
. Insulated assembly or connected with protection tube
. The sensor can be adjusted to a specific length and mounted into the process
. Interchangeable and easily replaceable
. Good heat transfer through adjustable spring pressure
. Insulated assembly or connected with protection tube
. The sensor can be adjusted to a specific length and mounted into the process
. Interchangeable and easily replaceable
Specifications:
|
Model
|
ZZ-BST03-J
|
|
Calibration
|
Type J
|
|
Conductor diameter
|
2*7/0.20mm
|
|
Construction
|
Parallel, Flat
|
|
Insulation & shield
|
FB-FB-SSB, FB-SSB
|
|
Color code
|
ANSI
|
|
Accurancy
|
Class 1 or Class 2
|
|
Junction
|
Grounded, ungrounded
|
|
Temperature range
|
0-480℃
|
|
Lead wire length
|
1m
|
|
Bayonet cap ID.
|
12.40mm
|
|
Bayonet slot
|
1 or 2
|
|
Adapter pin
|
1 or 2
|
|
Adapter (OD.*length)
|
11mm * 22mm
|
|
Spring (OD. *length)
|
4.8mm *100mm
|
|
Probe tube(OD.*length)
|
4.8mm*15mm
|
|
Bayonet cap (OD. & ID.)
|
16mm & 12.40mm
|
|
Material of bayonet & adapter
|
Nickel plated brass
|
|
Material of spring
|
stainless steel
|
|
Type
|
Bayonet spring & adapter thermocouple
|
