Specific micrometer, Centering rod, Tension spring, Cutter sharpening attachment, Upper cylinder packing ring, Lower cylinder packing ring, cylinder press ring, Boring sleeve, Centering device, specific spanner for micrometer, Hex. Socket wrench, Boring cutter, Spring(for cutter)
- Product Details
- {{item.text}}
Quick Details
-
T8014A Boring diameter:
-
65 -140 mm
-
T8014A Max. boring depth:
-
300mm
-
T8016A Boring diameter:
-
80 -165 mm
-
T8016A Max. boring depth:
-
400mm
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
APS
-
Warranty:
-
1 Years
-
T8014A Boring diameter:
-
65 -140 mm
-
T8014A Max. boring depth:
-
300mm
-
T8016A Boring diameter:
-
80 -165 mm
-
T8016A Max. boring depth:
-
400mm
Products Description

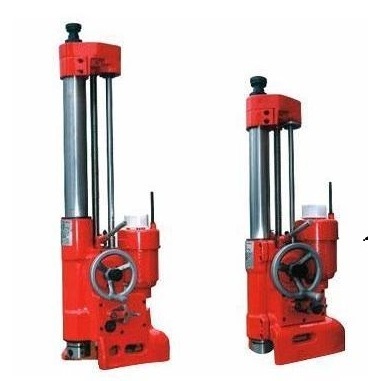

Portable Cylinder Boring Machine T8014A,T8016A, reboring engine cylinders of motorcycles
Specifications
The boring machine is mainly used for reboring engine cylinders of motor cycles, automobiles and middle & small-tractors.
Reliable performance ,widely use, processing accuracy high productivity.
Easy and Flexible operation . Good rigidity , amount of cutting
|
Model
|
T8014A
|
T8016A
|
|
|
Boring diameter
|
65 – 140 mm
|
80 – 165 mm
|
|
|
Max. boring depth
|
300 mm
|
400 mm
|
|
|
Spindle speed
|
250, 380 r/min
|
200, 300 r/min
|
|
|
Spindle feed
|
0.11 mm/r
|
0.12 mm/r
|
|
|
Spindle quick reset
|
636 mm/sec
|
780 mm/sec
|
|
|
Voltage
|
220V ;380V
|
|
|
|
Motor Power
|
0.25KW;0.37KW
|
|
|
|
Overall dimensions
|
320x330x850 mm
|
360x345x1100 mm
|
|
|
Machine weight
|
62 kg
|
85 kg
|
|
Standard accessories:
Tool box
