Quick Details
-
Product name:
-

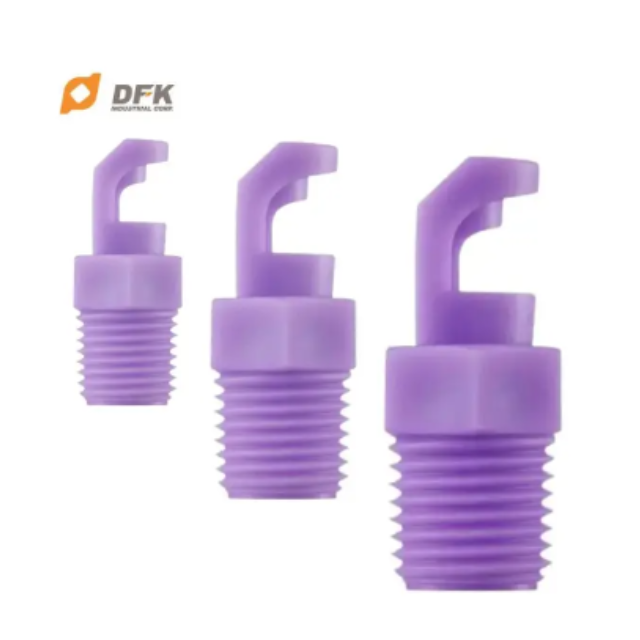

Wide Angle Plastic Flat Fan Flood Nozzle For Rinsing
-
Customized support:
-
OEM,ODM
-
Certificate:
-
ISO9001
-
Recommended working pressure:
-
1.5 kgf/cm²
-
Flowrate tolerance:
-
± 10% @ 1.5 ± 0.1 kgf/cm²
-
Material:
-
PVDF,PP,UPVC
-
Application:
-
Rinsing
-
Medium:
-
Air,Water,Vacuum
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Weight (KG):
-
0.003
-
Place of Origin:
-
Taiwan
-
Brand Name:
-
DFK
-
Product name:
-
Wide Angle Plastic Flat Fan Flood Nozzle For Rinsing
-
Customized support:
-
OEM,ODM
-
Certificate:
-
ISO9001
-
Recommended working pressure:
-
1.5 kgf/cm²
-
Flowrate tolerance:
-
± 10% @ 1.5 ± 0.1 kgf/cm²
-
Material:
-
PVDF,PP,UPVC
-
Application:
-
Rinsing
-
Medium:
-
Air,Water,Vacuum
-
Marketing Type:
-
Ordinary Product
Low Pressure Wide Angle Plastic Flat Fan Flood Nozzle
PRODUCT DESCRIPTION
FEATURES
-
The spray pattern is fan type, and the spray shape is single-line.
-Low-pressure wide-angle nozzle realizes a large angle coverage under 1.5kgf/cm² pressure, which is lower than standard fan type 3kgf/cm² operating pressure and is more suitable for low-pressure working environment.
-Spray the nozzle at an angle of 75° with respect to the axis of the nozzle. Check that the environment is suitable.
-The hooked nozzle tip is designed to reflect the water into a fan shape nozzle and greaten particle passage to prevent clogging.
-Operation pressure is greater than 4kgf/cm² may cause the liquid to overflow without fogging.
-Recommended working pressure: 1.5 kgf/cm²
-Flowrate tolerance: ± 10% @ 1.5 ± 0.1 kgf/cm²
-Angle tolerance: ± 10° @ 1.5 ± 0.1 kgf/cm²
-Low-pressure wide-angle nozzle realizes a large angle coverage under 1.5kgf/cm² pressure, which is lower than standard fan type 3kgf/cm² operating pressure and is more suitable for low-pressure working environment.
-Spray the nozzle at an angle of 75° with respect to the axis of the nozzle. Check that the environment is suitable.
-The hooked nozzle tip is designed to reflect the water into a fan shape nozzle and greaten particle passage to prevent clogging.
-Operation pressure is greater than 4kgf/cm² may cause the liquid to overflow without fogging.
-Recommended working pressure: 1.5 kgf/cm²
-Flowrate tolerance: ± 10% @ 1.5 ± 0.1 kgf/cm²
-Angle tolerance: ± 10° @ 1.5 ± 0.1 kgf/cm²
SPRAY PATTERN & FLOW DISTRIBUTION
TECHNICAL DATA
|
Thread
(BSPT)
|
Size (mm)
|
|
|
Weight (g)
|
|
|||
|
|
A
|
B
|
C
|
PVDF
|
PP
|
|||
|
1/8"Male
|
9.8
|
17
|
24
|
1.6
|
0.8
|
|||
|
1/4"Male
|
13.9
|
21.7
|
33.7
|
4.8
|
2.4
|
|||
APPLICATION
● Cleaning: Conveyor belt, film, copper, paper, glass,All kinds of plates,filters, dust and debris, machine tool cleaning.
● Cooling: Conveyor belts, tanks, machinery, metal, roofs, etc.
● Dispersion: Humidifying, Chemicals, Water Curtain (fire, dust,deodorization, etc.), defoaming, etc.
● Cooling: Conveyor belts, tanks, machinery, metal, roofs, etc.
● Dispersion: Humidifying, Chemicals, Water Curtain (fire, dust,deodorization, etc.), defoaming, etc.
Our high standard quality system allows us to control and maintain strict quality requirements for all customers, especially
tofulfill the commitments required by ISO 9001.
Our quality system brings confidence to our customers. We document every quality inspection record for our internal evaluation and for traceability.
We have an in-house inspection line including precision hand inspection tools, gauges, micrometers, roughness tester,
heightgauges, pin gauges and more.
tofulfill the commitments required by ISO 9001.
Our quality system brings confidence to our customers. We document every quality inspection record for our internal evaluation and for traceability.
We have an in-house inspection line including precision hand inspection tools, gauges, micrometers, roughness tester,
heightgauges, pin gauges and more.
DFK is dedicated to achieving customer's most satisfaction.ISO standards make a positive difference to all of us, it's not only aquality standard for the operation, it also gives positive influences on our daily lives, and then extending to our society.
