Quick Details
-
Screw Speed (rpm):
-
70 rpm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YiRun
-
Voltage:
-
380v/220v
-
Dimension(L*W*H):
-
30m*8m*2.5m
-
Power (kW):
-
100
-
Weight:
-
8000 KG
-
After Warranty Service:
-
Online support
-
Automatic Grade:
-
Automatic
-
Screw Diameter:
-
100mm
-
Screw Rotate Speed:
-
30-70 r/min
-
Power(W):
-
100kw
-
Electrical brand:
-
Schneider
-
Motor:
-
Siemens
-
Roller Unit Driving:
-
Gear
-
Inverter:
-
ABB
-
Meter:
-
Omron
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
30:1
-
Screw diameter (mm):
-
100
-
Screw Speed (rpm):
-
70 rpm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YiRun
-
Voltage:
-
380v/220v
-
Dimension(L*W*H):
-
30m*8m*2.5m
-
Power (kW):
-
100
-
Weight:
-
8000 KG
-
After Warranty Service:
-
Online support
-
Automatic Grade:
-
Automatic
-
Screw Diameter:
-
100mm
-
Screw Rotate Speed:
-
30-70 r/min
-
Power(W):
-
100kw
-
Electrical brand:
-
Schneider
-
Motor:
-
Siemens
-
Roller Unit Driving:
-
Gear
-
Inverter:
-
ABB
-
Meter:
-
Omron

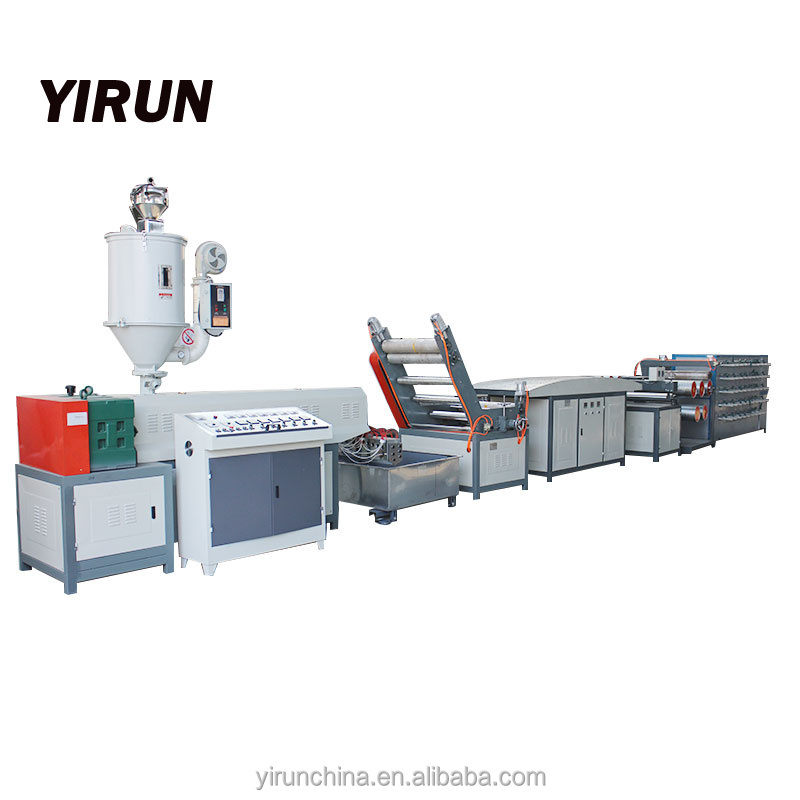

Product Application
The equipment can use PP PE raw material particles or recycled particles to draw wire, and the finished product is mainly used for birthday lawn silk.
The special design and excellent mechanical properties ensure the stability and uniformity of the monofilament, and the precision electrical control system makes the operation efficient and simple.
Equipment advantages
1)Fast speed, high output, low energy consumption.
2)The forming quality of the cylinder is good, and the structure of the whole machine is compact.
3)Beautiful appearance, smooth operation, convenient operation, safe and reliable.
|
Type
|
65
|
80
|
90
|
100
|
|
Die width/mm
|
600mm
|
800mm
|
1000mm
|
1200mm
|
| Shape |
2m*2.5m*26m
|
4
m*
2.5
m*
26m
|
4
m*
2.5
m*
30
m
|
8
m
2.5
m
26-30
m
|
| Installed power |
60KW-70KW
|
70KW-80KW
|
90KW-100KW
|
100KW-120KW
|
| Motor Power |
15KW
|
22KW
|
37.5KW
|
45KW
|
| Output |
40kg/h-50kg/h
|
60kg/h-70kg/h
|
80kg/h-90kg/h
|
100kg/h-110kg/h
|
SERVICE
1. Machine to be installed and commissioned by our technicians. We can send our technician to install the machine accordingly if the buyer need.
2. The buyer have to pay the salary , and the air ticket, accommodation,
3. Meals and some related fees should be your responsibility.
4. It is in same condition if the buyer need the seller to send the interpreter.
GUARANTEE
1. Except the wearing parts, 12 months guarantee for machine and 6 months guarantee for electric appliance after shipment. During guarantee time, if the parts are broken caused by the product problem, seller will offer the parts by free.
2. If the parts were broken caused by the mishandling by buyer, buyer needs to buy the parts from seller.
3. The price does not include the charge of installation, the buyer will need to pay for the charge of visa, the air ticket, the accommodation and traffic charge in buyer's country.
