Quick Details
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
Yes
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Keyword:
-
shoe rubber sole
-
Dimension of Machine:
-
1.5*1.55*3.2M
-
Packing Dimension:
-
1.95*1.65*2.5M
-
Molds:
-
1 set
-
Oil Tank Capacity:
-
180L
-
Cooling water:
-
600-800L/hr
-
Space between columns:
-
440*240mm
-
Screw speed:
-
0-180r/min
-
Injection Pressure:
-
2321-1404kgf*m3
-
Screw Diameter:
-
28-36mm
-
Opening Stroke:
-
130
-
Clamping Force (kN):
-
441
-
Certification:
-
ISO 9001:2008
Quick Details
-
Injection Weight (g):
-
119 g
-
Screw diameter (mm):
-
36 mm
-
Place of Origin:
-
Guangdong, China
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
Yes
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Keyword:
-
shoe rubber sole
-
Dimension of Machine:
-
1.5*1.55*3.2M
-
Packing Dimension:
-
1.95*1.65*2.5M
-
Molds:
-
1 set
-
Oil Tank Capacity:
-
180L
-
Cooling water:
-
600-800L/hr
-
Space between columns:
-
440*240mm
-
Screw speed:
-
0-180r/min
-
Injection Pressure:
-
2321-1404kgf*m3
-
Screw Diameter:
-
28-36mm
-
Opening Stroke:
-
130
-
Clamping Force (kN):
-
441
-
Certification:
-
ISO 9001:2008

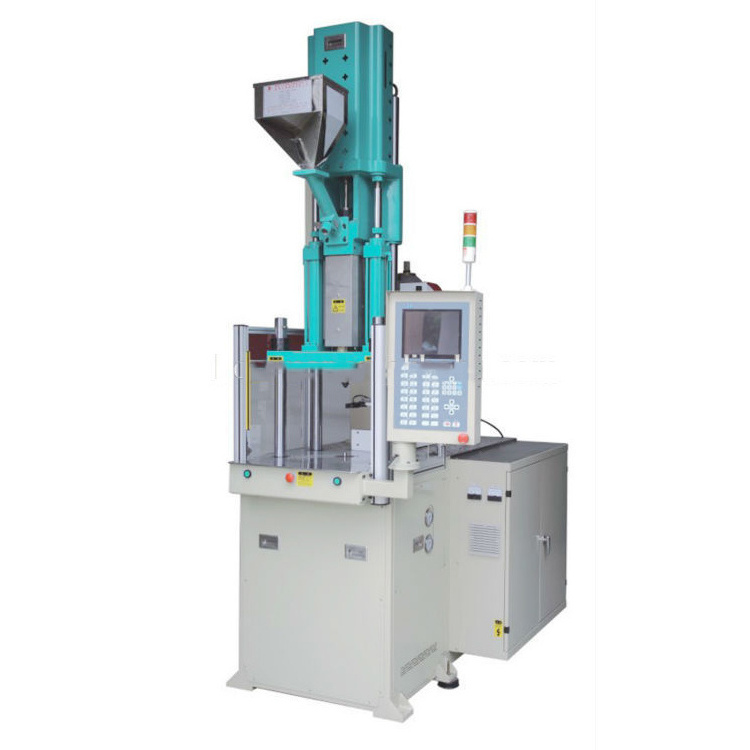

45T Vertical Standard Shoe Rubber Sole Injection Molding Making Machine HM0174-10
Product Description
| Spec | ||||
| Model | HM-45T-P | |||
| Injection unit | Screw Diameter | mm | 28 | 36 |
| Injection Pressure | Kgf/cm3 | 2321 | 1404 | |
| Injection Capacity | cm3 | 80 | 132 | |
| Injection Weight | gr | 72 | 119 | |
| oz | 2.5 | 4.2 | ||
| Injection Rate | cc/s | 47 | 78 | |
| Screw Speed | r.p.m | 0-180 | ||
| Screw Stroke | mm | 130 | ||
| Nozzle Stroke | mm | 200 | ||
| Nozzle Contact Force | tf | 3.5 | ||
| Clamping unit | Clamping System | |||
| Clamping Force | tf | 45 | ||
| Clamping Stroke | mm | 215 | ||
| Max.Mould Space | mm | 360 | ||
| Min.Mould Height | mm | 145 | ||
| Space between columns | 440*240 | |||
| Hydraulic Ejector Force | tf | 1.7 | ||
| Ejector Stroke | mm | 40 | ||
| Slidable Stroke | ° | 400 | ||
| Tableda | Overall Size of Slipform | mm | 420*420 | |
| Number of Molds | set | 1 | ||
| Drive Motor | kw | 7.5(10HP) | ||
| Electrical Parts | Heater | kw | 4.9 | |
| Oil Tank Capacity | L | 180 | ||
| Cooling Water | L/hr | 600-800 | ||
| Dimension of Machine | M | 1.5*1.55*3.2 | ||
| Packing | Weight of Machine | T | 2.5 | |
| Shipping size | M | 1.95*1.5*2.5 | ||
| Shipping weight | T | 2.8 | ||
