Quick Details
-
Filling Accuracy:
-
±1%
-
Voltage:
-
0
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Great Pack
-
Dimension(L*W*H):
-
89*23*25
-
Weight:
-
20KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Video technical support, Free spare parts
-
Product name:
-
cream dispensing body butter filling machine
-
Usage:
-
Filling
-
Material:
-
Stainless steel
-
Air Pressure:
-
0.4-0.6Mpa
-
Valve:
-
Rotary valve
-
Nozzle:
-
1 filling nozzle
-
Filling Range:
-
50-500ml
-
Capacity:
-
10-20 Bottles/Min
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
None
-
Certification:
-
ISO
Quick Details
-
Machinery Capacity:
-
2000BPH
-
Packaging Material:
-
Glass, Metal, Paper, Plastic, Wood
-
Filling Material:
-
Water, Oil, Juice, liquid, sauce, cream, paste
-
Filling Accuracy:
-
±1%
-
Voltage:
-
0
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Great Pack
-
Dimension(L*W*H):
-
89*23*25
-
Weight:
-
20KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Video technical support, Free spare parts
-
Product name:
-
cream dispensing body butter filling machine
-
Usage:
-
Filling
-
Material:
-
Stainless steel
-
Air Pressure:
-
0.4-0.6Mpa
-
Valve:
-
Rotary valve
-
Nozzle:
-
1 filling nozzle
-
Filling Range:
-
50-500ml
-
Capacity:
-
10-20 Bottles/Min
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
None
-
Certification:
-
ISO

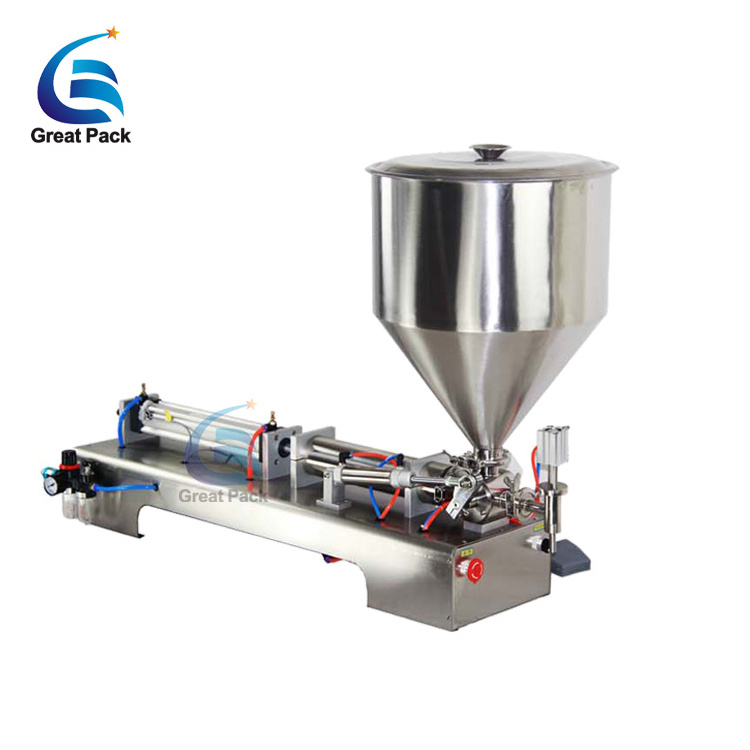

cream dispensing body butter filling machine
Introduction
This filling machine is one kind of piston filling machines.It is driven by cylinder and only compressed air is needed to run the machine. This series of filling machines are designed specially for filling cream and sauce products such as cosmetic cream, honey, tomato sauce etc. There are several models of this kind filling machine basing on different volume. Different model has different filling range.Please select the best model below according to the volume of your bottle, jar or other containers.
Specification
| Model | GSCF-100 | GSCF-300 | GSCF-100 | GSCF-1000 | GSCF-3000 | GSCF-5000 |
| Filling Range | 10-100ml | 30-300ml | 50-500ml | 100-1000ml | 300-3000ml | 500-5000ml |
| Filling Speed | 10-20 Bottles/Min | |||||
| Dimension(cm) | 86*23*24 | 86*23*24 | 90*23*25 | 95*27*29 | 110*27*35 | 125*27*35 |
| Net Weight | 45KG | 45KG | 55KG | 55KG | 60KG | 78KG |
Feature
1.
All machine body is made of SUS 304. It is easier to clean and more hygeian.
2.
High accuracy by using quality components such as cylinder.
3.
Long working life with high quality o rings.
4.
Filling range is wide and adjustable.
5.
This filling machine can run automatically or operated by a pedal.
6.
Only compressed air needed. It is safe to run the machine without electricity.
7. This series of machine can be installed with a sucking tube or a hopper.
Pictures
Filling Sample
