Quick Details
-
Brand Name:
-
Jinyang
-
Model Number:
-
ZO-5
-
Analyzer size:
-
260*190*100 MM
-
Range:
-
0-25% (programmable)
-
Operating ambient Temperature:
-
-20°C~ + 55°C
-
Instrument accuracy:
-
±1%
-
Power Supply:
-
100 V-240 V AC 50-60 Hz
-
Display:
-
LCD Chinese/English menu
-
Output:
-
4-20 MA DC
-
Grade of protection:
-
IP65
-
Control accuracy:
-
±1°C
-
Power:
-
<150 W
Quick Details
-
Type:
-
sensor
-
Warranty:
-
1 year
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Jinyang
-
Model Number:
-
ZO-5
-
Analyzer size:
-
260*190*100 MM
-
Range:
-
0-25% (programmable)
-
Operating ambient Temperature:
-
-20°C~ + 55°C
-
Instrument accuracy:
-
±1%
-
Power Supply:
-
100 V-240 V AC 50-60 Hz
-
Display:
-
LCD Chinese/English menu
-
Output:
-
4-20 MA DC
-
Grade of protection:
-
IP65
-
Control accuracy:
-
±1°C
-
Power:
-
<150 W

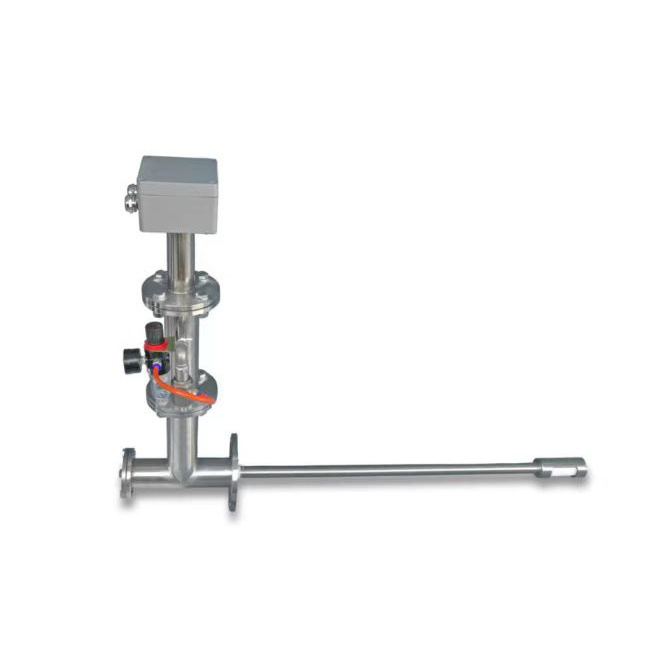

Principle:
Equipped with high temperature adapter, the high temperature flue gas is introduced into the adapter,
and the actual temperature is reduced to below 600 ° C after capacity expansion, pressure reduction
and temperature reduction, so as to realize the detection of high temperature gas.
Product Features:
1. It can analyze flue gas at 0-1300 ° C directly, with high accuracy, and can install detector and
sampler separately;
2. The sensor is made of high temperature resistant and corrosion-resistant material with good
reliability.
Scope of Application:
It is mainly used for strong corrosive flue gas, such as waste incineration power plant and industrial
hazardous waste incinerator. The high temperature environment can be at the flue gas temperature
of 600-1300 ° C
