Quick Details
-
Brand Name:
-
OMNI
-
Model Number:
-
OC32
-
Keyword:
-
Bike Lock
-
Combo Set Offered:
-
3
Quick Details
-
Material:
-
Aluminum
-
Size:
-
148*194mm
-
Place of Origin:
-
China
-
Brand Name:
-
OMNI
-
Model Number:
-
OC32
-
Keyword:
-
Bike Lock
-
Combo Set Offered:
-
3
Product Description

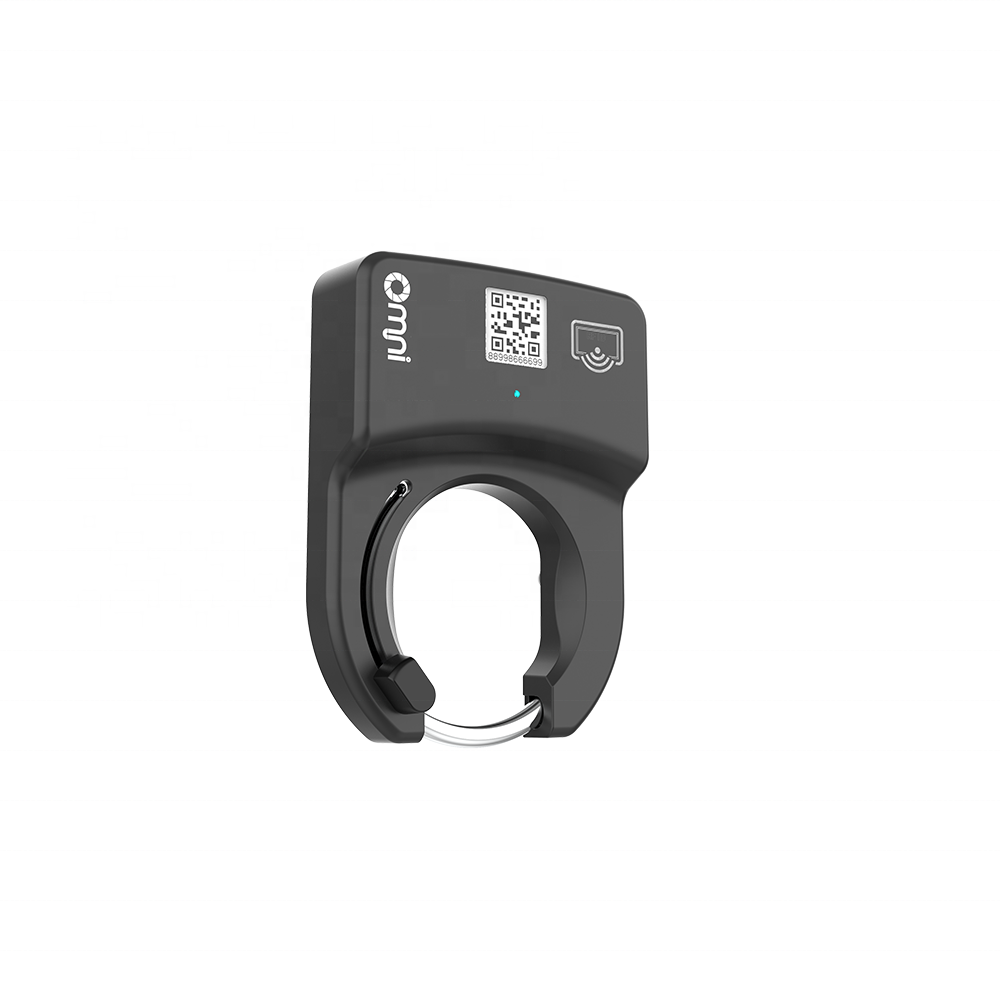

OC32 Horseshoe lock
---
a GPS positioning terminal for sharing bicycles and electric vehicles. The terminal has 4G network remote
control, GPS real-time positioning, Bluetooths communication, vibration detection, anti-theft alarm and other functions. The
terminal uses 4G or Bluetooths to interact with the background and mobile phone APP to achieve real-time vehicle control and status
reporting.
Detailed Images
-
Easy installation
Multi---Communication way support
One-Stop Solution Provider
Lock Specs
|
Operation system:
|
Backend/Server/APP (OPTIONAL,Not Free)
|
|
Positioning:
|
GPS+GLONASS+WIFI Precise positioning
|
|
Communication
|
2G/4G+ BLE+ RFID stable communication
|
|
Lifetime:
|
Unlock/lock 100K cycles
|
|
Charging:
|
Powered by ebike battery,Bike lock by solar panel
|
|
Ebike version:
|
Remotely limit the speed ,Support GEO Fence
|
|
Air Protocol :
|
TCP Protocol, for free
|
|
Upgrade:
|
Support OTA and BLE upgrade
|
|
Application:
|
for bike/ebike rental project
|
Product Paramenters
|
Connect moped
|
UART communication
|
|
Indicator light
|
Blue light on : the lock network is connected to the server;
Adapter charging status: charging red light is on, full blue light is on |
|
Beep
|
Buzzer, loudness>65DB
When the car is locked, the mobile vehicle alarms and the lock is closed Unlock method: Network/Bluetooths |
|
Unlock method
|
Network/Bluetooths
|
|
Locking method
|
manual lock
|
|
DC charging
|
6VDC/3A
|
|
Moped communication
Line 5V requirements |
5VDC±10%，500MA , long-term output is required, not controlled by switch lock
|
|
Built-in battery
|
Rechargeable lithium battery ：3.7V/8000mAh/6400mAh optional (the terminal is normally connected to the server，it will be standby
for 1-2 months at 25℃） |
|
Waterproof and dustproof
|
IP66
|
|
Shell material
|
shell：PA66+30%GF;bottom shell: aluminum alloy
|
|
Standby current
|
<5mA
|
|
Working temperature
|
-10℃～ +60℃
|
|
Working humidity
|
10～ 95%
|
|
Storage temperature
|
-40°C ～+80°C
|
|
SIM card
|
size：medium card（Micro-SIM）
|
|
Overall dimensions
|
Length, width and height ：194mm × 148mm × 39mm
|
|
Color
|
black (can be customized according to customer requirements)
|
|
Weight
|
0.85KG
|
|
Mounting screw
|
M5 diameter
|
|
Power adapter
|
6VDC/3A (British, American, Australian, optional)
|
Best Selling
Company Introduction
Shenzhen Omni Intelligent Technology Co., Ltd.
---
located in Shenzhen Lianchuang Technical Zone, a national high-tech enterprise specializing in R&D, production and sales of intelligent transportation series and smart home products, integrating hardware and software development. ha
s been popular in over 100 countries and regions around the world.
Our products ranges are: smart home, smart cycling, smart parking management, smart personal products and other artificial intelligent hardware and APP, server program, backstage management system .
Omni insists on the faith of technology creation, product update, professional service. provide the highest quality products and services for the global smart transportation market and smart home market.
● More than 30 inventions and related patents
● More than 20 R&D technicians
● More than 3,000 square meters for office and production site
●Hardware + Software + Production one-stop customization service
