Quick Details
-
Power:
-
5kw
-
Dimension(L*W*H):
-
4500*1500*1900
-
Weight:
-
1200, 900kg
-
Product name:
-
Wet wipe Packaging Machine
-
Packaging speed:
-
5-220bag/minute
-
Packaging film thickness:
-
0.025-0.07mm
-
Power Requirements:
-
220V/50HZ
-
Film Roll Diameter:
-
≤380mm
-
power:
-
2.4KW
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
sanlin, sanlin
-
Voltage:
-
220
-
Power:
-
5kw
-
Dimension(L*W*H):
-
4500*1500*1900
-
Weight:
-
1200, 900kg
-
Product name:
-
Wet wipe Packaging Machine
-
Packaging speed:
-
5-220bag/minute
-
Packaging film thickness:
-
0.025-0.07mm
-
Power Requirements:
-
220V/50HZ
-
Film Roll Diameter:
-
≤380mm
-
power:
-
2.4KW
A pplication :

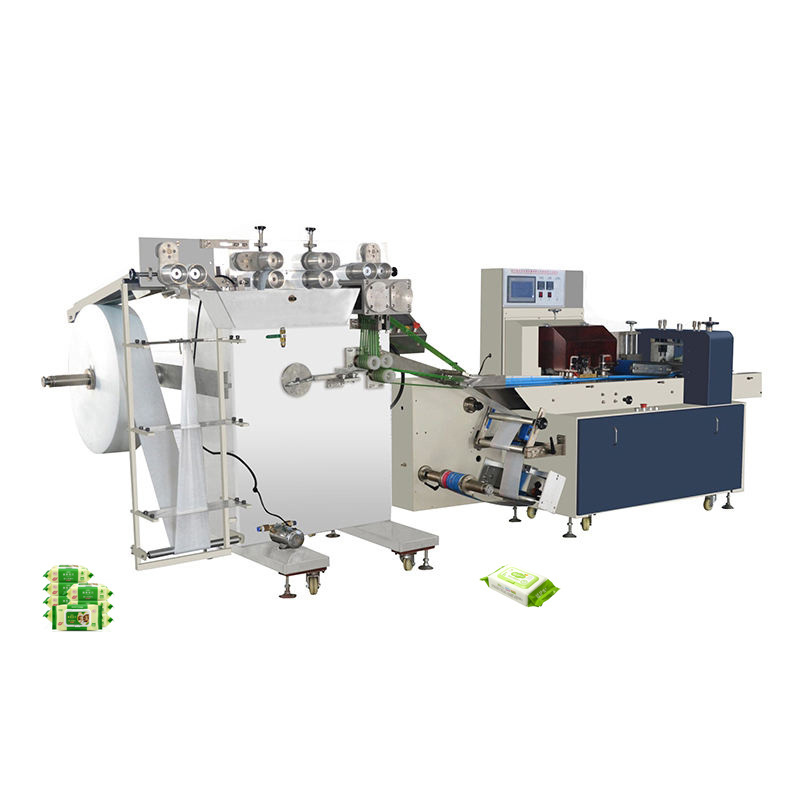

The automatic tissue (wet tissue) production line is an automatic production equipment that directly folds the whole roll of base paper longitudinally, adds liquid, cuts to length, folds horizontally, and then automatically packs. All processes from raw materials to packaged products are all in the machine completed. Automatic feeding machines such as chopsticks, tooth pads, and spoons can be added to form paper towels (wet wipes), chopsticks, toothpicks (spoons), and three (four) sets of automatic packaging.
|
Model
|
|
HZ-SJ350
|
|
||
|
Product number
|
Folding and cutting part HZ-100
|
Product number
|
Packaging part HZ-350
|
||
|
Nonwoven Width
|
320mm
|
Film width
|
MAX.350mm
|
||
|
Finished product length
|
320mm
|
Bag length
|
60-320mm
|
||
|
Finished product width
|
320mm
|
Bag width
|
30-150mm
|
||
|
The diameter of the whole roll of non-woven fabric
|
1000mm
|
product height
|
55mm
|
||
|
Cutting speed (synchronized with packaging machine)
|
5-200 packs/min pcs/min
|
Film roll diameter
|
MAX.350mm
|
||
|
Power Specifications
|
220V 50/60HZ
|
packing speed
|
5-200 packs/min pcs/min
|
||
|
power
|
1kw
|
Power Specifications
|
220V 50/60HZ 2.6kw
|
||
|
Machine size (length x width x height)
|
1800×100×1500mm
|
Machine size (length x width x height)
|
4600×950×1420mm
|
||
|
machine weight
|
280kg
|
machine weight
|
680kg
|
||
F eatures :
1 Applicable to various spunlace non-woven fabrics, cloth, paper and other products, multi-purpose, can pack single-piece paper towels (wet wipes), paper towels (wet towels) chopsticks, paper towels (wet towels) chopsticks, toothpicks, wet towels, etc.
2 The equipment casing and the parts related to the product are all made of 304 stainless steel.
3 The equipment can be equipped with a quantitative automatic liquid filling device, the liquid volume can be freely controlled according to requirements, and the liquid filling position is accurate.
4. The packaging length of this equipment can be set and cut immediately, without the need to adjust the idling, and it can be done in one step, saving time and film, and convenient operation.
5. The vertical and horizontal sealing of the equipment is controlled by an independent PID temperature control system. The stitching and sealing performance is good without water leakage. It can be equipped with an ink wheel type automatic date printing device, and the digital printing is clear.
6. The equipment adopts Japanese Panasonic frequency converter combined with Japanese Panasonic PLC programming controller and touch screen to jointly control production. All production parameters are clear at a glance and easy to operate.
7 The equipment has advanced design concepts, compact structure, fast speed, good stability, high production efficiency, and meets the requirements of various national health standards.
8 The combined packaging machine for paper towels, chopsticks, toothpicks, spoons, etc. is the drafting unit of the industry standards and electrical terms.
FAQ
Q1: ARE YOU THE MANUFACTURER OR TRADING COMPANY?
A1: We are the manufacturer, also we establish the trading company to make easy export.
Q2: HOW LONG IS THE DELIVERY TIME?
A2: It is depend on the quality. A few goods, we promise to send in 1-3days. Most have in stock. A big order, we promise to send
in 7-15days.
Q3: HOW CAN WE GET THE SAMPLES? IS IT FREE?
A3:We provide free sample by express, but you need pay the express charge.
Q4: HOW ABOUT THE QUALITY?
A4: 100% Quality control in produce and before package.
Q5: HOW ABOUT THE AFTER-SALE SERVICE?
A5: Any feedback or comments are welcomed. We have engineers available to solve your application problems.
A1: We are the manufacturer, also we establish the trading company to make easy export.
Q2: HOW LONG IS THE DELIVERY TIME?
A2: It is depend on the quality. A few goods, we promise to send in 1-3days. Most have in stock. A big order, we promise to send
in 7-15days.
Q3: HOW CAN WE GET THE SAMPLES? IS IT FREE?
A3:We provide free sample by express, but you need pay the express charge.
Q4: HOW ABOUT THE QUALITY?
A4: 100% Quality control in produce and before package.
Q5: HOW ABOUT THE AFTER-SALE SERVICE?
A5: Any feedback or comments are welcomed. We have engineers available to solve your application problems.
