Quick Details
-
Warranty:
-
Other
-
Brand Name:
-
TIENREK
-
Model Number:
-
TR-200SPB
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
customized size
-
Application:
-
Outdoor Activities
-
Product name:
-
Sunpower portable solar charger 200w
-
OEM Order:
-
Acceptable
-
Cell Efficiency:
-
20%~22%high Efficiency Sunpower Cell
-
Operate Temperature:
-
-10 ~+60
-
Backsheet:
-
TPT Material
-
Material:
-
900D Nylon
-
Front Cover:
-
Transparent ETFE
-
Junction Box:
-
IP67 Rated
-
Power Tolerance:
-
0~+5W
Quick Details
-
Cell size:
-
166mmx166mm
-
Type:
-
HJT, N-TYPE, Flexible, Foldable
-
Panel Efficiency:
-
200w
-
Warranty:
-
Other
-
Brand Name:
-
TIENREK
-
Model Number:
-
TR-200SPB
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
customized size
-
Application:
-
Outdoor Activities
-
Product name:
-
Sunpower portable solar charger 200w
-
OEM Order:
-
Acceptable
-
Cell Efficiency:
-
20%~22%high Efficiency Sunpower Cell
-
Operate Temperature:
-
-10 ~+60
-
Backsheet:
-
TPT Material
-
Material:
-
900D Nylon
-
Front Cover:
-
Transparent ETFE
-
Junction Box:
-
IP67 Rated
-
Power Tolerance:
-
0~+5W
Products Description

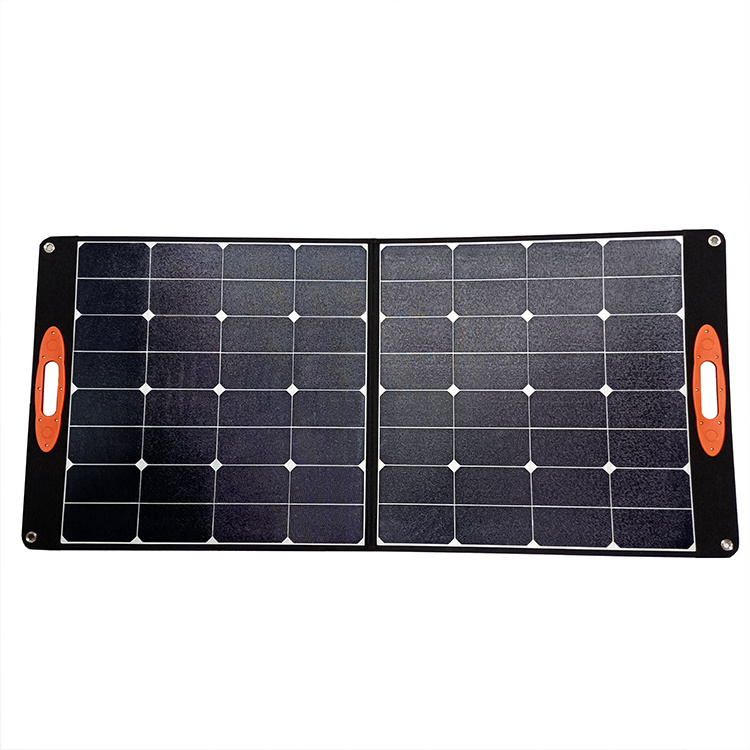

200W ETFE Sunpower Portable Solar Panel Charger
Designed for outdoor portable charging, travel or emergency using
Can supply OEM ODM service
Details Images
2FOLD Portable Solar Panel 200W size
Portable solar panel 200W 50W*2PC
Using sunpower high efficiency 161 solar cell 32pcs
Portable solar panel 210w 220w 4Folds
Using sunpower high efficiency 161 solar cell 36pcs
Product Paramenters
|
Power
|
200 Watt
|
210w / 220 Watt
|
||
|
Folding Number
|
2 Folds
|
4 Folds
|
||
|
olar Cell
|
SUNPOWER 161*161
|
SUNPOWER 161*161
|
||
|
Number of Cell
|
32PCS
|
36PCS
|
||
|
cell Efficiency
|
23%
|
|
||
|
Open Size (mm)
|
1230*546*13
|
2270*530*13
|
||
|
Folded Size (mm)
|
756*694*27
|
605*530*30
|
||
|
N.W Weight (KG)
|
4.05KGS
|
3.74KGS
|
||
|
DC Output
|
20V 10A
|
|
||
|
Type C
|
PD
45W Max (5v/9v/12v/15v)
|
|
||
|
USB Output
|
21.6V
|
|
||
|
Short Circuit Current (Isc)
|
QC3.0
24W Max (5v/9v/12v/15v)
|
|
||
|
Fabric
|
900D Nylon
|
|
||
|
Surface Material
|
High performance corrosion resistant ETFE
|
|
||
|
Connector
|
DC connector (or can choose MC4/Anderson/SAE/XT60 etc.)
|
|
||
|
Measured at STC Condition: Irradiance 1000w/m2 AM1.5 Spectrum Temperature 25℃
|
|
|
||
Our Advantages
●
Powerful Power Output
: SunPower cells are the #1 choice for customers due to the combination of high efficiency and ruggedness.
●
Unique Cell Structure
: SunPower cell is built on thick and strong copper wire, As a result it can be resistant to power loss via cracking and corrosion.
●
Portable & Charging
: Portable or foldable design save space even be better to put and easier to carry anywhere. Built-in bracket design is better for charging anytime, anywhere.
●
Reinforcement Design
: TIENREK unique manufacturing process combines FR4-PCB and polymer materials to make solar panels thin and hard.
●
Super Waterproof
: Cloth and zip are used waterproofing materials.
●
Longer Service Life
: ETFE film has excellent light transmittance and weather resistance, as well as heat, corrosion and UV resistance. Longer service life is for higher cost performance.
●
Widely Application
: It can supply power to Mobile phone, Vehicle power supply, Refrigerator, Portable energy storage power supply , Oil exploration equipment and Marine etc.
Can be customized Fabric color, Handle color, Power, Voltage, Size, Junction box, Connector, Packing box
Orange/Green/Blue/Custom
Attachment Kickstand
Connector Multiple Choice
If need custom other specification, please
"Click Here"
contact with us.
Product packaging
