Quick Details
-
Marketing Type:
-
Hot Product 2024
-
Core Components:
-
laser source
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HANTENCNC
-
Dimension(L*W*H):
-
570*650*1030mm
-
Year:
-
2024
-
Weight (KG):
-
85 KG
-
Laser Power:
-
200W/300W
-
Total power:
-
≤1.5 kW
-
Electricity requirements:
-
110V/220V ,50HZ/60HZ
-
Delivery cable length:
-
Standard 5 meters
-
Laser wavelength:
-
1064nm
-
Operation method:
-
Handheld
-
Misoperation protection:
-
Double protection
-
Cleaning range:
-
Standard 150*150mm(Can be customized)
-
Cooling system:
-
Air cooling
-
Energy consumption:
-
Electrical energy
Quick Details
-
Power:
-
200W, 300W
-
Laser Type:
-
Fiber Laser
-
Laser Source Brand:
-
JPT
-
Marketing Type:
-
Hot Product 2024
-
Core Components:
-
laser source
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HANTENCNC
-
Dimension(L*W*H):
-
570*650*1030mm
-
Year:
-
2024
-
Weight (KG):
-
85 KG
-
Laser Power:
-
200W/300W
-
Total power:
-
≤1.5 kW
-
Electricity requirements:
-
110V/220V ,50HZ/60HZ
-
Delivery cable length:
-
Standard 5 meters
-
Laser wavelength:
-
1064nm
-
Operation method:
-
Handheld
-
Misoperation protection:
-
Double protection
-
Cleaning range:
-
Standard 150*150mm(Can be customized)
-
Cooling system:
-
Air cooling
-
Energy consumption:
-
Electrical energy
Product Description

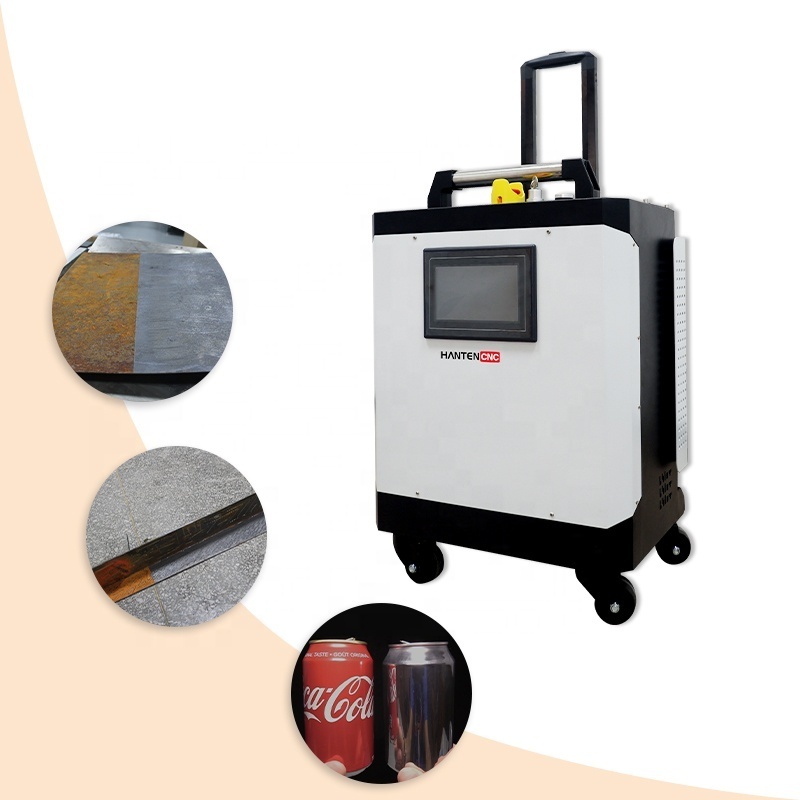

HANTENCNC trolley box-type pulse laser cleaning has the advantages of time saving, high efficiency, environmental protection, safety, etc. The machine is easy to operate, hand-held operation, small in size and does not take up space, and is suitable for various scenarios.
Product Details
Specification
|
Model
|
HTCM200/THCM300
|
|
Power
|
200W/300W
|
|
Maximum pulse energy
|
200W:1.5Mj/5Mj,
300W:1.5Mj/5Mj/15Mj
|
|
Pulse Width
|
2-500ns
|
|
Delivery cable length
|
Factory 5 meters
|
|
Laser wavelength
|
1064nm
|
|
Cleaning head
|
Own brand
|
|
Control System
|
Own brand
|
|
Scan line diameter
|
160mm/210mm/254mm/330mm/420mm（Optional）
|
|
Cooling system
|
Air cooling
|
|
Energy consumption
|
≤1.5KW/2KW
|
|
Anti-reflective protection
|
Have
|
|
Power Requirements
|
110V/220V
|
|
Ambient temperature range
|
10-40 Degrees
|
|
Package dimensions
|
950*640*570mm
|
|
Gross weight
|
80kg
|
Sample&Application
This laser cleaning machine can remove resin, oil, rust, coating, plating, paint, etc. on the surface of the object. It has high cleaning efficiency, fast speed, and does not pollute the environment.
More Choose
Packing & Delivery
Plywood case.We have 3 layers package. For the outside, we adopt plywood case. In the middle, the machine is covered by foam, to protect the machine from shaking.
For the inside layer, the machine is covered by waterproof plastic bag.
