Quick Details
-
Application:
-
Other
-
Design Style:
-
Modern
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
chaochen
-
Model Number:
-
aluminum silicate panels
-
Type:
-
Other Heat Insulation Materials
-
color:
-
white color
-
length:
-
400mm/600mm/1200mm
-
width:
-
600mm/1200mm
-
thickness:
-
30mm/40mm/50mm/60mm
-
other size:
-
as your require
-
type:
-
soft board, semi-rigid board, hard board
-
highest work temperature:
-
800℃
Quick Details
-
Warranty:
-
5 years
-
After-sale Service:
-
Online technical support, Other
-
Project Solution Capability:
-
graphic design, Others
-
Application:
-
Other
-
Design Style:
-
Modern
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
chaochen
-
Model Number:
-
aluminum silicate panels
-
Type:
-
Other Heat Insulation Materials
-
color:
-
white color
-
length:
-
400mm/600mm/1200mm
-
width:
-
600mm/1200mm
-
thickness:
-
30mm/40mm/50mm/60mm
-
other size:
-
as your require
-
type:
-
soft board, semi-rigid board, hard board
-
highest work temperature:
-
800℃
Introduction

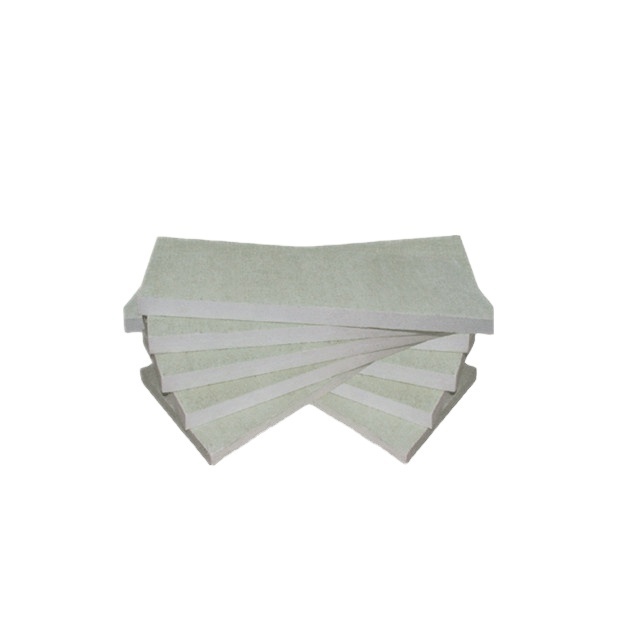

Aluminum silicate fiber board is made through melting high-quality flint clay with electric furnace under more than 2000 °C , injection into fiber, evenly adding specifically-made adhesive, oleophobic agent, water repellent and solidified under heat.
Production equipment: “Multi-machine conjoined” one-time molding aluminum silicate board production line. During the injection to aluminum silicate wool, adding a certain
amount of adhesive can turn out aluminum silicate felt base, and after which is shaped by penetration of hot air in
solidification room, computer console can automatically cut the shaped aluminum silicate rigid board.
Regular Specifications (mm)
length: 400.600.1200mm
width: 600.1200mm
thickness: 30.40.50.60mm
all size can be product as the requirement of client
Applications
Ø Thermal insulation of electric power, boiler, steam turbine, and nuclear power;
Ø Fire proof and thermal insulation in ship industry, construction industry, fireproof door, manufacture of
automobiles and trains;
Ø Wall lining of high-temperature reaction equipment and heating equipment in chemical industry;
Ø Lining-up of furnace, furnace door, roof, etc.
index
| item | soft board | semi-rigid board | hard board |
| density(kg/m3) | 70-100 | 100-130 | 130-150 |
| heat conductivity(w/mk) |
0.034(200°C) 0.098(400°C ) 0.132(600°C ) 0.167(800°C ) |
0.034(200°C)
0.090(400°C ) 0.126(600°C ) 0.161(800°C ) |
0.035(200°C)
0.090(400°C ) 0.126(600°C ) 0.159(800°C ) |
| linear shrikage(24h) |
-4.0 (900-1000°C) |
-4.0
(900-1000°C) |
-4.0
(900-1000°C) |
| slag ball content1%>0.25mm | 10.5 | 9.8 | 10.2 |
| fiber diameter | 2.0 | 2.2 | 2.2 |
1,Packing
Plastic woven bag packaging, or carton packaging, can according to customer requirements
2,Shipping
By sea from tianjin xingang, China
1 Samples
Free/Can produce according to your samples/The color according to your require
2 Product
Competitive shipment service/Complete after sales service
3 Our advantage
Professional manufacturer/Advanced equipment/Good quality& flexible/Competitive price/High quality team
4 Cer t ification
