Quick Details
-
No-Load Speed:
-
none (for impacting)
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
BETOPPER
-
Model Number:
-
G7, G7
-
Aplication:
-
Quarrry,construction or mining
-
MOQ:
-
2 set
-
Certification:
-
ISO9001
-
Weight:
-
7.20 kg
-
Shank:
-
25*108mm
-
Advantage:
-
Factory price
-
Key word:
-
G7 pneumatic air Concrete breaker hammer
-
Package:
-
Carton
Quick Details
-
Type:
-
Pneumatic hammer splitter
-
Average Air Consumption:
-
≤20 (L/s)
-
Maximum Torque:
-
none
-
No-Load Speed:
-
none (for impacting)
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
BETOPPER
-
Model Number:
-
G7, G7
-
Aplication:
-
Quarrry,construction or mining
-
MOQ:
-
2 set
-
Certification:
-
ISO9001
-
Weight:
-
7.20 kg
-
Shank:
-
25*108mm
-
Advantage:
-
Factory price
-
Key word:
-
G7 pneumatic air Concrete breaker hammer
-
Package:
-
Carton

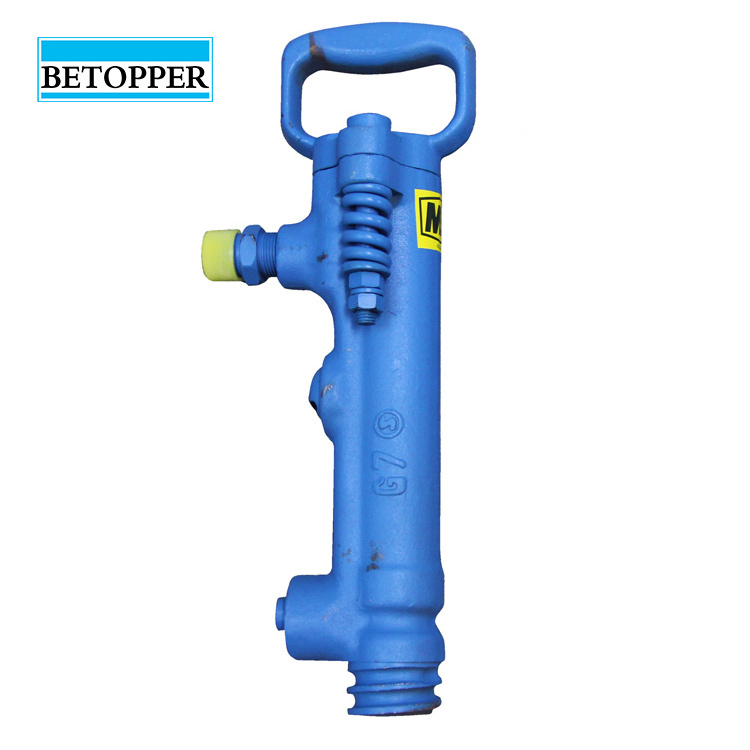

Description & Specification
| Product Name: |
G7 pneumatic air Concrete breaker hammer |
|||||||
|
Description: |
Hand-held pneumatic tool, use compressed air to push the piston reciprocating movement, keep the pick up to the impact.
Belongs to a kind of pneumatic instrument combined with the mature international technology. |
|||||||
| Application: |
To split,break,dig for all kind of construction stone. Widely used in mining, road construction, concrete and other hard objects demolition. |
|||||||
| Advantages: | Portability, durability, high efficiency and speedy | |||||||
| Spare parts: | Chisel breaker, wedge & shims, | |||||||
|
MOQ: |
No requirement for testing and trial order | |||||||
| Specification of air pick/G7 pneumatic air Concrete breaker hammer | ||||||||
| MO Series | OP Series | C6 |
G7 (TCA-7) |
|||||
| MO-2B | MO-3B | MO-4B | OP-2 | OP-3 | OP-4 | |||
| Weight (kg) | 8.5 | 9 | 9.6 | 8 | 9 | 9.5 | 6.4 | 7.2 |
| Length (mm) | 540 | 540 | 540 | 540 | 540 | 540 | 377 | 456 |
| Impact power (J) | 39 | 44 | 55 | 43 | 48 | 56 | 14 | ≥30 |
| Air pressure (Mpa) | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.2-0.5 | 0.2-0.5 | 0.2-0.5 | 0.63 | 0.4-0.5 |
| Air consumption (L/s) | 25 | 25 | 25 | 26 | 26 | 26 | 15 | ≤20 |
| Impact frequency (Hz) | 22.5 | 19 | 17 | 22 | 19 | 17 | 20 | ≥21.6 |
| G10 | G20 | G35 | B47 | B50 | B67 | B87C | SL80 | |
| Weight (kg) | 10.9 | 20 | 20 | 21.5 | 18 | 30 | 39 | 37 |
| Length (mm) | 575 | 570 | 626 | 550 | 660 | 615 | 686 | 733 |
| Impact power (J) | ≥43 | ≥60 | ≥76 | 37±10% | 100 | |||
| Air pressure (Mpa) | 0.4-0.5 | 0.4-0.5 | 0.4-0.5 | 0.5 | 0.6 | 0.6 | 0.6 | 0.4-0.5 |
| Air consumption (L/s) | ≤20 | ≤23 | 22 | 28 | 26 | 42±15% | 55 | ≤34 |
| Impact frequency (Hz) | ≥18 | ≥16 | 21 | 21 | 17.5 | 24±5% | 18 | ≥18.3 |
The information you may like to know before order:
1. Methods of Payment:
T/T (Telegraphic Transfer) or Western Union or L/C at sight
2. Handling time for an order
Within 10 days supplied from stock
3. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
4. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
5. After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded)
b. Technical Support will be available in any time
c. Free replacement will provide once the failure confirmed caused by our product quality
About Us:
1. Our factory has been specialized in manufacturing drilling tools and spare parts since 1980.
2. We have advanced technology and equipment.
3. Our technician has more than 25 year’s professional working experience.
4. Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA,
Canada, Australia, Brazil, Uruguay, Philippines, Thailand, India, etc.
