Quick Details
-
Voltage:
-
380V
-
Power:
-
10KW
-
Dimension(L*W*H):
-
7000x1800x2000mm
-
Weight:
-
3000
-
Total Power:
-
30KW
-
Productivity:
-
90pcs/min
-
Power Supply:
-
3-Phase 380V 50Hz
-
Non-Woven Fabric Width of Coiling:
-
340-680mm
-
Overall Dimension:
-
7520x2200x2400mm
-
Pocket Spring Height:
-
60-200mm
-
Mid-Coil Diameter:
-
32-38mm / 35-50mm
-
Wire Diameter:
-
1.1-1.2mm / 1.3-1.6mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yuantian
-
Applicable Industries:
-
Furniture manufacturing, Mattress manufacturing
-
Voltage:
-
380V
-
Power:
-
10KW
-
Dimension(L*W*H):
-
7000x1800x2000mm
-
Weight:
-
3000
-
Total Power:
-
30KW
-
Productivity:
-
90pcs/min
-
Power Supply:
-
3-Phase 380V 50Hz
-
Non-Woven Fabric Width of Coiling:
-
340-680mm
-
Overall Dimension:
-
7520x2200x2400mm
-
Pocket Spring Height:
-
60-200mm
-
Mid-Coil Diameter:
-
32-38mm / 35-50mm
-
Wire Diameter:
-
1.1-1.2mm / 1.3-1.6mm
Product Overview

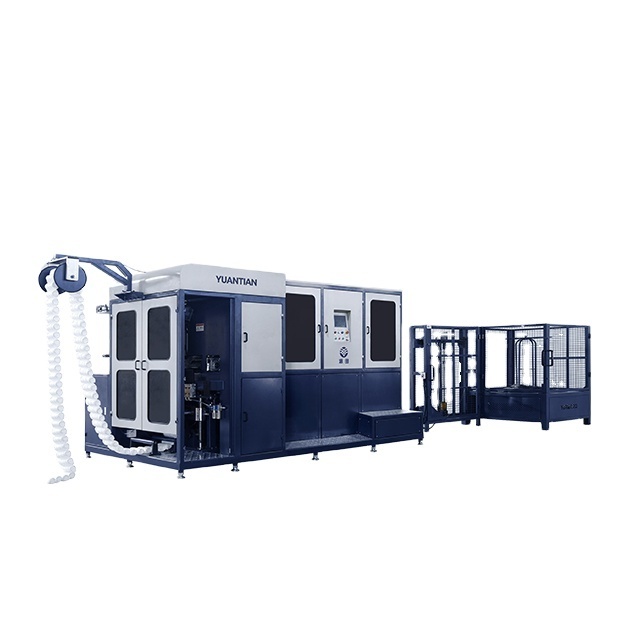

The automatic pocket spring coiling machine adopts PLC program control, full touch screen operation. It's suitable for production of independent mattress and sofa pocket springs.
Our equipment is equipped with automatic CNC spring machine, spring specifications of full parameter setting, and can store a variety of spring specifications data. At the same time, it adopts a servo control system, simplifies the mechanical structure, maintenance is easier and faster.
The intelligent detection system of the machine will automatically stop the machine and give an alarm when encountering a fault.
The automatic cutting device saves time and labor cost in manufacturing springs, with an efficiency of up to 90 springs per minute.
Our equipment is equipped with automatic CNC spring machine, spring specifications of full parameter setting, and can store a variety of spring specifications data. At the same time, it adopts a servo control system, simplifies the mechanical structure, maintenance is easier and faster.
The intelligent detection system of the machine will automatically stop the machine and give an alarm when encountering a fault.
The automatic cutting device saves time and labor cost in manufacturing springs, with an efficiency of up to 90 springs per minute.
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Productivity
|
90 coils/min
|
|
2
|
Non-woven Fabric Specification
|
≥65g/㎡
|
|
3
|
Non-Woven Fabric Width of Coiling
|
340-680mm
|
|
4
|
Overall Dimension
|
7000x1800x2000mm
|
|
6
|
Pocket Spring Height
|
60-200mm
|
|
7
|
Mid-Coil Diameter
|
φ32-φ38mm / φ35-φ50mm
|
|
8
|
Wire Diameter
|
Φ1.1-φ1.2mm / Φ1.3-φ1.6mm
|
|
9
|
Total Weight
|
3000kg
|
