Quick Details
-
Brand Name:
-
MANYYEAR
-
Model Number:
-
MPT61X
-
Material:
-
stainless steel
-
Type:
-
MPT61X
-
Name:
-
Infrared pyrometer
-
temperature range::
-
-20c to 3000c
-
work voltage::
-
9-36vdc
-
signal output:
-
0-5vdc, 0-10vdc, 4-20mA, RS485, CPI
-
apply::
-
Nor-contact solidity, melt temperature measure
-
wave lenght::
-
8-14um, 0.85um, 1.0um, 1.6um..
-
Certification:
-
CE,ROHS,ISO
Quick Details
-
Warranty:
-
12months
-
Theory:
-
Temperature controller, Infrared Thermometer, Temperature Sensor, Temperature Transmitter, Temperature Recorder
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MANYYEAR
-
Model Number:
-
MPT61X
-
Material:
-
stainless steel
-
Type:
-
MPT61X
-
Name:
-
Infrared pyrometer
-
temperature range::
-
-20c to 3000c
-
work voltage::
-
9-36vdc
-
signal output:
-
0-5vdc, 0-10vdc, 4-20mA, RS485, CPI
-
apply::
-
Nor-contact solidity, melt temperature measure
-
wave lenght::
-
8-14um, 0.85um, 1.0um, 1.6um..
-
Certification:
-
CE,ROHS,ISO
Product Description

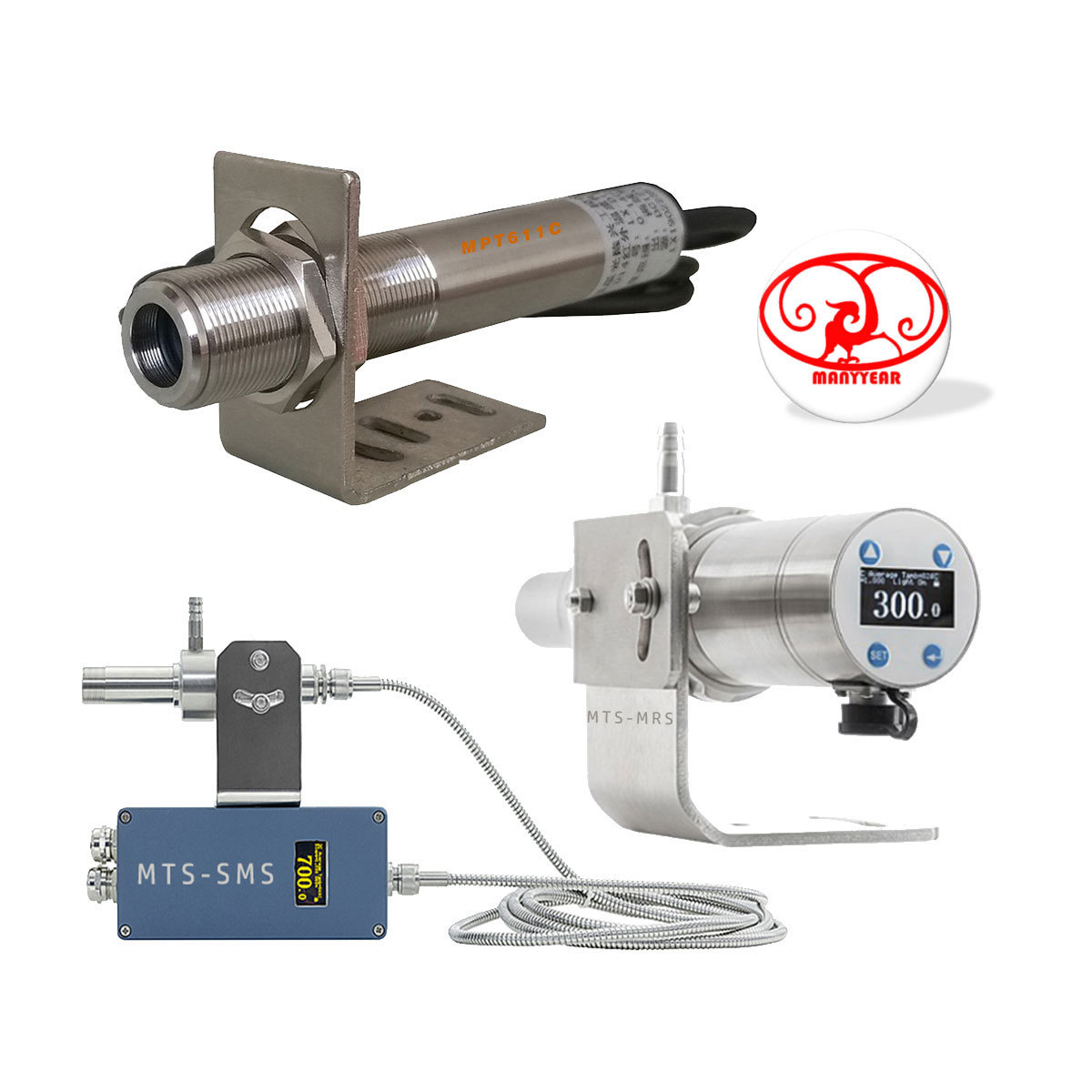

No contact Industrial Infrared pyrometer thermometer
Technology Specification
Below spec is only for customer design reference. we can provide ODM product.
|
Capability range:
|
-50c ~0c~350c~750c~1200c~2000c~3000c
|
|
Measurement wavelength
|
0.85~1.1um/0.95um
|
|
Distance coefficient
|
100:1 (Optional microwave special type)
|
|
System accuracy
|
±0.5% or ±1centigrade
|
|
Repeat accuracy
|
±0.2% or ±1centigrade )
|
|
Temperature resolution
|
1 centigrade
|
|
Response time
|
20ms (95%)
|
|
Environmental Class
|
IP65 (NEMA-4)
|
|
Ambient temperature
|
0-60centigrade
|
|
Storage Temperature
|
-20-80centigrade
|
|
Relative humidity
|
10-95%, No condensation
|
|
Weight
|
120g
|
|
Analog output
|
4-20Ma (Can be customer-made 0-5V)
|
|
Maximum loop impedance
|
750Ω (24VDC)
|
|
Power supply:
|
12-24VDC (100mA)
|
Product Assembly Structure
Blow force structure is for reference.
Product Process
Product Application
Delivery and Shipment
