Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HONGDA
-
Model Number:
-
Z5045C
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1850x750x1000mm
-
Power (kW):
-
1.5KW
-
Weight (KG):
-
500 KG
-
Marketing Type:
-
Hot sales
-
Name:
-

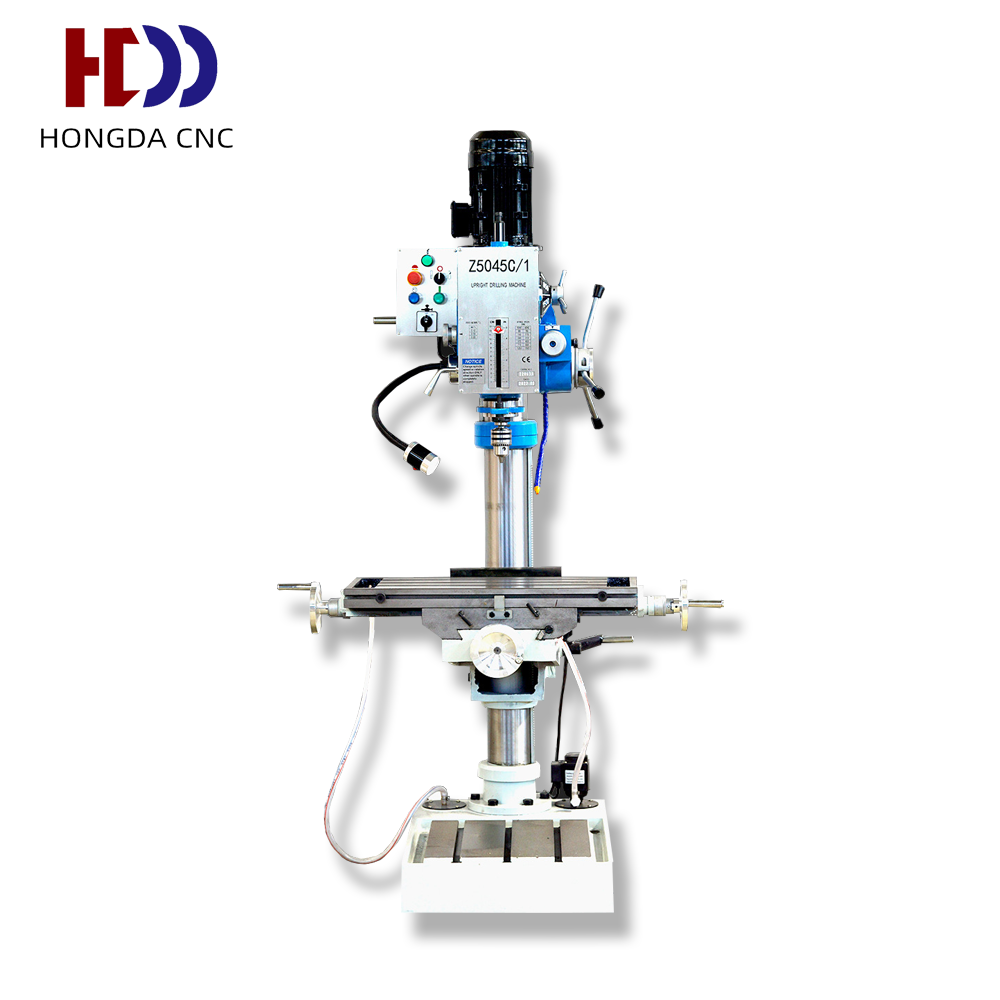

Upright Drilling Machine
-
Keyword:
-
Vertical Drilling Machine
-
Machine type:
-
Upright Vertical Drilling Machine
-
Provide after-sales service:
-
Available overseas third-party support
-
Post guarantee services:
-
Video technical support, online support
-
Core components:
-
motor
-
Video inspection:
-
Provided
-
colour:
-
Based on customer needs
-
Maximum drilling capacity:
-
45mm
-
Rotating Table Corner:
-
360°
Quick Details
-
type:
-
Column Drilling Machine
-
Max. Drilling Dia. (mm):
-
45mm
-
Range of Spindle Speed(r.p.m):
-
80 - 1250 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HONGDA
-
Model Number:
-
Z5045C
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1850x750x1000mm
-
Power (kW):
-
1.5KW
-
Weight (KG):
-
500 KG
-
Marketing Type:
-
Hot sales
-
Name:
-
Upright Drilling Machine
-
Keyword:
-
Vertical Drilling Machine
-
Machine type:
-
Upright Vertical Drilling Machine
-
Provide after-sales service:
-
Available overseas third-party support
-
Post guarantee services:
-
Video technical support, online support
-
Core components:
-
motor
-
Video inspection:
-
Provided
-
colour:
-
Based on customer needs
-
Maximum drilling capacity:
-
45mm
-
Rotating Table Corner:
-
360°
Video Description
Product Description
Main technical parameters of the product:
|
specifications
|
|
|
|
|||
|
project
|
Z5032C
|
Z5040C
|
Z5045C
|
|||
|
Maximum drilling capacity
|
32mm
|
40mm
|
45mm
|
|||
|
spiral bevel
|
M.T.3 or R8
|
M.T.4
|
M.T.4
|
|||
|
Rotary travel
|
130mm
|
130mm
|
130mm
|
|||
|
Spindle speed
|
6
|
6
|
6
|
|||
|
Range of spindle speed 50Hz
|
80-1250 r.p.m
|
80-1250 r.p.m
|
80-1250 r.p.m
|
|||
|
60Hz
|
95-1500 r.p.m
|
95-1500 r.p.m
|
95-1500 r.p.m
|
|||
|
Min.distance from spindle axis to column
|
283mm
|
283mm
|
283mm
|
|||
|
Max.distance from spindle nose to worktable
|
700mm
|
700mm
|
700mm
|
|||
|
Max.distance from spindle nose to stand table
|
1125mm
|
1125mm
|
1125mm
|
|||
|
Max.travel of headstock
|
250mm
|
250mm
|
250mm
|
|||
|
Swivel angle of headstock(horizontal/perpendicular)
|
360°/±90°
|
360°/±90°
|
360°/±90°
|
|||
|
Max.travel of worktable bracket
|
600mm
|
600mm
|
600mm
|
|||
|
Table size
|
730×210mm
|
730×210mm
|
730×210mm
|
|||
|
Size of stand worktable of avaliability
|
417×416mm
|
417×416mm
|
417×416mm
|
|||
|
Forward and afterward travel of worktable
|
205mm
|
205mm
|
205mm
|
|||
|
Left anf right travle of worktable
|
500mm
|
500mm
|
500mm
|
|||
|
Vertical travel of worktable
|
570mm
|
570mm
|
570mm
|
|||
|
Motor Power
|
0.75KW(1HP)
|
1.1KW(1.5HP)
|
1.5KW(2HP)
|
|||
|
Voltage/Frequency
|
As customer's requirement
|
|
|
|||
|
speed of motor
|
1400 r.p.m
|
1400 r.p.m
|
1400 r.p.m
|
|||
