Quick Details
-
Power Source:
-
Electric
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TM
-
Model Number:
-
TM22
-
Voltage:
-
250V
-
Current:
-
10-15A
-
Life Time:
-
100000 Cycle Life Times
-
Switch Type:
-
normal close/normal open
-
Life Cycle:
-
100000 Cycles
-
Temperature range:
-
-30-230C
-
Product name:
-
bimetal thermostat
-
Terminal's size:
-
6.3X0.8/ 4.8*0.8
-
MOQ:
-
500pcs
Quick Details
-
After-sales Service Provided:
-
Free spare parts, Onsite Installation, Return and Replacement, Field maintenance and repair service, Overseas Call Centers
-
Warranty:
-
3 years
-
Application:
-
Car, Household
-
Power Source:
-
Electric
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TM
-
Model Number:
-
TM22
-
Voltage:
-
250V
-
Current:
-
10-15A
-
Life Time:
-
100000 Cycle Life Times
-
Switch Type:
-
normal close/normal open
-
Life Cycle:
-
100000 Cycles
-
Temperature range:
-
-30-230C
-
Product name:
-
bimetal thermostat
-
Terminal's size:
-
6.3X0.8/ 4.8*0.8
-
MOQ:
-
500pcs

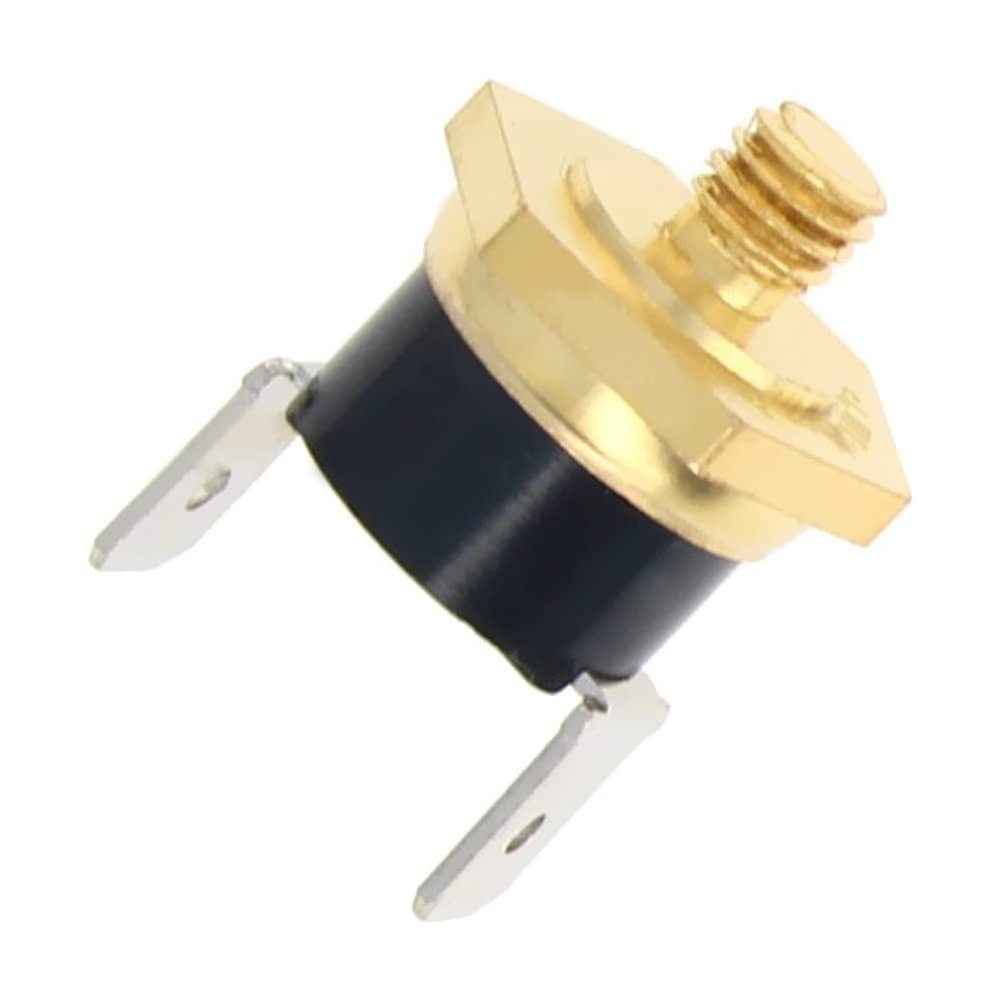

Limit Switch Manual Reset Thermostat Replace Universal Furnace and Boilers Thermal Switch
Snap-Action Temperature Control
The TM22(KSD301) series of 1/2 ’’ Bimetal temperature controls base on proven reliability in a compact,versatile,cost-effective design.The snap action of the bimetal disc provides high-speed contact separations resulting in excellent life cycle characteristics at electrical loads up to 15amps at 120VAC and 10 amps at 250VAC(100.000 cycles) and 16 amps at 250VAC(30.000 cycles).
A variety of terminal and mounting configurations are available for maximum design flexibility.the quality,reliability,affordability,versatility and word-wide agency approvals of the TM22(KSD301) series make it the thermostat of choice for a wide variety to temperature control applications.
Switch Actions
The TM22(KSD301) is available in single throw(SPST) switch actions:
Automatic Reset -Can be built to either open or close its contacts on temperature rise.
Manual Reset -Available with contacts that open on temperature rise.the contacts can be reset by depressing the button after the control has cooled down.
Action Temperature Range
Bakelite Body: -20 ℃ ---120 ℃ Ceramic Body:-20 ℃ ---260 ℃
Typical Applications
The TM22(KSD301) is applied to a wide variety of application as either a regulating control or a safety limit,examples of applications include:
|
Coffeemakers |
Water heaters |
|
Sandwich toasters |
Furnaces |
|
Dishwashers |
Boilers |
|
Dryers |
Electric heaters |
|
Washing Machines |
Office equipment |
|
Refrigerators |
Automotive seat heaters |
|
Microwave ovens |
Water dispenser |
Supervalu service:
1. We have rich experience of OEM&ODM, factory can manufacture according to your request.
2. custom-made label is accept.
3. Warranty: 12 months from shipping date
4. Free samples is accept.
FAQs
1. Why I choose you?
A: 11 year's manufacture experience and automation production line,all quality certification passed
2. What are your main products?
A: KSD301;KSD302;BW/KSD9700;BH;TB02;17AM;17AMC;fuse;ect.
3. Warranty:
A: 12 months
4. How do you ensure good product quality?(quality control)
A: All products are thoroughly tested in-house with our vast array of calibration and special testing equipment (like Fluke PPC4 (Pneumatic Pressure controller/Calibrators)). Our testing process is conducted in accordance with a strict quality control system.
6. How fast can you deliver goods (Delivery time)?
A: Standard products are in stock. 3-10days short delivery time.
7.What's your MOQ?
A: free samples is accept.500PCS for mass order
8. What express ways can you offer, can we use our own courier?
A: DHL,FedEx;UPS;TNT.Customer account is accept.
