Quick Details
-
Brand Name:
-
AMIS
-
Model Number:
-
AM-3345
-
Type:
-
Pathological Analysis Equipments
-
Application:
-
Hospital , School , Lab
-
Product:
-
hand microtome
-
Slice thickness range:
-
0~100μm
-
Trimming thickness:
-
1~600μm
-
Specimen retraction:
-
0~95μm,in 5μm increments
-
Specimen vertical stroke:
-
70mm
-
Specimen horizontally stroke:
-
25mm
-
Certification:
-
CE, ISO
Quick Details
-
Warranty:
-
2 years
-
After-sale Service:
-
Online technical support
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
AMIS
-
Model Number:
-
AM-3345
-
Type:
-
Pathological Analysis Equipments
-
Application:
-
Hospital , School , Lab
-
Product:
-
hand microtome
-
Slice thickness range:
-
0~100μm
-
Trimming thickness:
-
1~600μm
-
Specimen retraction:
-
0~95μm,in 5μm increments
-
Specimen vertical stroke:
-
70mm
-
Specimen horizontally stroke:
-
25mm
-
Certification:
-
CE, ISO

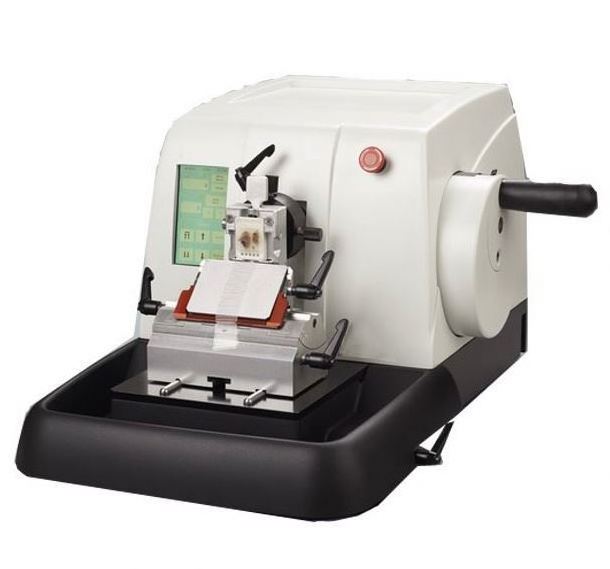

General Features
2.Full-automatic sectioning with adjustable speed and three sectioning modes: continuous, step and single.
LED display
3.Electronic trim function makes it easy to switch from trim and section mode
4.Specimen retraction mechanism protects specimen from unintended blade damage
5.Section counting function counts total section pieces and total thickness.
6.Unit contains a precise micro motion specimen feeding system which uses a micro computer, optical signal and stepper motor to control specimen feeding resulting in more precise specimen feeding.
7.Internationally accepted slide mechanism and groove ensures the precision of specimen movement while making the unit free from lubrication and maintenance requirements.
8.Unit contains a handwheel force balancing system for adjusting the balancing force during sectioning, making rotation even and smooth;
9.Two safety locking mechanisms on the handwheel; one locks on the top; the other locks at any position
10.The disposable blade can move horizontally to avoid the dangers of unintended contact with the blade. Every blade cuts specimen into three equal parts, which ensures the entire use of blade edge
11.The waste tray collects sectioning debris are easily removed for cleaning
12.Cassette clamp and C clamp are optional
13.Specimen orientation on X/Y axes 8°
14.Alarm to warn of forward or backwards limitation.
15.Self-diagnostic prompt.
16. mergency stop and foot switch (optional)
Main technical parameters
1. Section thickness range:1~100μm
2. Section thickness setting:1~20μm,in 1μm increment
20~60μm,in 5μm increments
60~100μm,in 10μm increments
3. Trimming thickness: 1~600μm
4. Trimming thickness setting:1~20μm,in 1μm increment ; 10~20μm,in 2μm increments
20~50μm,in 5μm increments; 50~100μm,in 10μm increments;
5. 100~600μm,in 50μm increments;
6. Specimen retraction: 0~95μm,in 5μm increments ;
7. Specimen vertical stroke:70mm
8. Specimen horizontally stroke:25mm
9. Max specimen size with cassette clamp (H×W):40mm×28mm
10. Max specimen size with C clamp (H×W):55mm×40mm
11. Dimensions (W×D×H):560×470×300mm
12. Weight:35kg
|
Package:
|
|
|
|
|
Dimensions (W×D×H)
|
560×470×300mm
|
|
|
|
Weight
|
35kgs
|
|
|
Packing Details
Accessories are packed separately. The product is packed in wooden box, also we can pack as customers' requests.
