Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hengwang
-
Weight:
-
6000 kg
-
Dimension(L*W*H):
-
4650*2150*2700mm
-
Name:
-
solar drop hammer piling pressing ramming pile driver machine
-
Effective press pile stroke:
-
0-6000mm
-
Rod Diameter:
-
0-400mm
-
diesel engine power:
-
85kw
-
rotation angle:
-
360°
-
track shoe:
-
350mm
-
Walking motor total emissions:
-
1575ml/h
-
Walking motor rated pressure:
-
18Mpa
-
overall machine weight:
-
6t
-
Application:
-
solar pile driver
Quick Details
-
Marketing Type:
-
New Product 2022
-
Efficiency:
-
High
-
Piling Speed(m/min):
-
2.7
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hengwang
-
Weight:
-
6000 kg
-
Dimension(L*W*H):
-
4650*2150*2700mm
-
Name:
-
solar drop hammer piling pressing ramming pile driver machine
-
Effective press pile stroke:
-
0-6000mm
-
Rod Diameter:
-
0-400mm
-
diesel engine power:
-
85kw
-
rotation angle:
-
360°
-
track shoe:
-
350mm
-
Walking motor total emissions:
-
1575ml/h
-
Walking motor rated pressure:
-
18Mpa
-
overall machine weight:
-
6t
-
Application:
-
solar pile driver

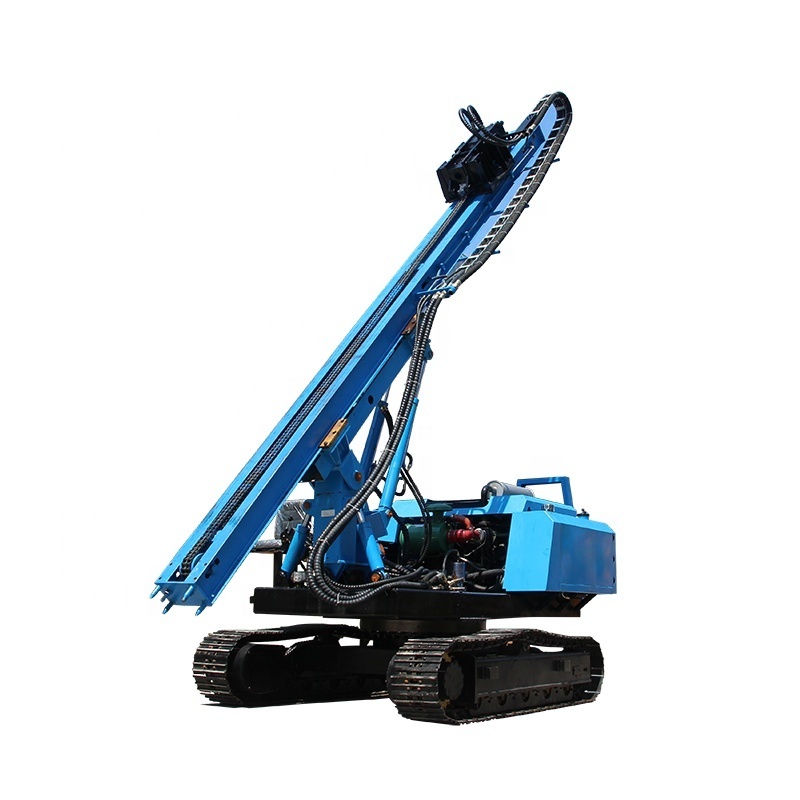

solar drop hammer piling pressing ramming pile driver machine
Our pile driver LH600 with 4108 turbocharged engine, the power can reach 85kw, 360°rotating track-type traveling, using high-quality 60 excavator site, to ensure maximum stability and mechanical durability of the pile driver. The design of this pile driver is reasonable, the operation is simple, the whole machine can be moved back and forth at any position, and the big arm can be swung from side to side. It has the characteristics of fast positioning, quick pile driving and high efficiency. It can also be customized according to customer requirements.
This pile driver applicable to various types of building foundation construction, high-speed road foundation reinforcement, high-speed railway power facilities, wind power plants, solar photovoltaic power generation projects, soft soil treatment and reinforcement piling works.
Main Features of solar drop hammer piling pressing ramming pile driver machine
1)Photovoltaic Pile Driver is composed of the chassis, guide rail, hydraulic arm, hydraulic system, hydraulic hammer, diesel engine, electrical, cooling and control systems, pile extracting equipment and pile drilling equipment. Its characteristics include quick and exact positioning, compact size, lightweight, self-propelled, agile, ergonomic design, easy operation, high efficiency .
2).This photovoltaic pile driver fuel-efficient,is a common driver uses around half of a year ,then will save one driver money for you.
3).Bit using manganese steel manufacturing,through processing,are suitable for all kinds of geological environment.
4).This photovoltaic pile driver with crawler walking,own high walking and climbing ability.
5).The frame can be moved back and forth,bit can be adjusted,high piling position accuracy.
|
Specification for solar drop hammer piling pressing ramming pile driver machine
|
|
|
|
Model
|
LH600
|
|
|
Hammer Model
|
390
|
|
|
Rod Diameter /mm
|
0-600
|
|
|
Duplex gear pump pressure(mpa)
|
20
|
|
|
Duplex gear pump displacement(ml/r)
|
40
|
|
|
hydraulic system pressure(mpa)
|
20
|
|
|
Overall Machine weight /T
|
6
|
|
|
diesel engine (kw)
|
85
|
|
|
rotation angle /°
|
360
|
|
|
rotation semi diameter/mm
|
1925
|
|
|
Effective press pile stroke/mm
|
0-6000
|
|
|
dimension(L*W*H)/mm
|
4650*215082700
|
|
|
track shoe(mm)
|
350
|
|
|
Walking motor total emissions (ml/n)
|
1575
|
|
|
Walking motor rated pressure (mpa)
|
18
|
|
|
walking motor output torque(n.m)
|
4300
|
|
|
walking motor rotation(r/min)
|
50
|
|
One set pile driver need load into one 20f container,2 sets of pile driver can be load into one 40HQ container.
Jining Luheng Machinery Equipment Co.,Ltd.
Jining Luheng Machinery Equipment Co.,Ltd. is the professional manufacturer of pile driver. With more than 300 workers and 25 Senior engineers,high quality produts and best after sales service can both be guaranteed. main clients are around Southeast Asia,Mid East and South America. Welcome visit our factory and sent inquiry to us.
We manufacture all kinds of pile driver,and we still develop new products continuously,if you have any requirement,please send inquiry.
FAQ
Ans.: It has different models used for all kinds of working site.
Q2. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages before you pay the balance.
Q3. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q5. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories
broken can be changed for a new one.And we provide videos for machine install and operation.
Q6. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
Q7. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
Q8.Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have recor d s for your clients, and will prefer provid ing accessories to clients.
Q9: How do you make our business long-term and good relationship?
Ans.: 1. We keep good quality and competitive price to ensure our customers benefits; 2. We respect every customer as our friend
and we sincerely do business and make friends with them,
no matter where they come from.
Q10.Do you have any certificates for your machine?
Ans.: All of our produ c ts coming with the certificates of CE, ISO9001.
