● 304 Stainless steel roasting drum with the mixing blades to ensure the
best blending and even roast.
● Roasting and cooling can work at same time, separated chaff cyclone
for effective chaff separation.
● High quality stainless steel cooling tray.
● Factory made high quality burner for effective heating, fuel saving.
● Self ignition with adjustable heat controls
● High grade insulation layer for keeping heat inside the drum
● Sight glass, burner window glass, sampler spoon and the
real-time temperature displays for accurate monitoring during roasting.
● USB Data logging
- Product Details
- {{item.text}}
Quick Details
-
Function:
-
Heat Adjustment
-
Power (W):
-
4180
-
Voltage (V):
-
220
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Wintop
-
Model Number:
-
WK-T1
-
Product name:
-
Wintop 1-2kg coffee roasting machine with Siemens LCD Touchscreen
-
Capacity:
-
1.5kg/batch Maximum
-
Heating Source:
-
LPG - LNG - Naturel Gas or electric
-
Roasting Time:
-
10-15min/batch
-
Capacity per hour:
-
4-7.5kg
-
Heating Mode:
-
Half Hot Air Heating
-
Motors:
-
4
-
Cooling time:
-
1-2 mins
-
Temperature control accuracy:
-
±0.2 ℃
-
Data logger:
-
PC-USB DATA logger
Quick Details
-
Warranty:
-
1 Year
-
Application:
-
Commercial, Household
-
Type:
-
Commercial, Household, Drum Coffee Roaster, home coffee roaster, sample roaster, stainless steel drum coffee roaster, thick drum coffee roaster, 1-2kg coffee roaster, cafe coffee roaster, coffee roaster machine, coffee roasting machine, touchscreen control system coffee roaster
-
Function:
-
Heat Adjustment
-
Power (W):
-
4180
-
Voltage (V):
-
220
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Wintop
-
Model Number:
-
WK-T1
-
Product name:
-
Wintop 1-2kg coffee roasting machine with Siemens LCD Touchscreen
-
Capacity:
-
1.5kg/batch Maximum
-
Heating Source:
-
LPG - LNG - Naturel Gas or electric
-
Roasting Time:
-
10-15min/batch
-
Capacity per hour:
-
4-7.5kg
-
Heating Mode:
-
Half Hot Air Heating
-
Motors:
-
4
-
Cooling time:
-
1-2 mins
-
Temperature control accuracy:
-
±0.2 ℃
-
Data logger:
-
PC-USB DATA logger
Product Description

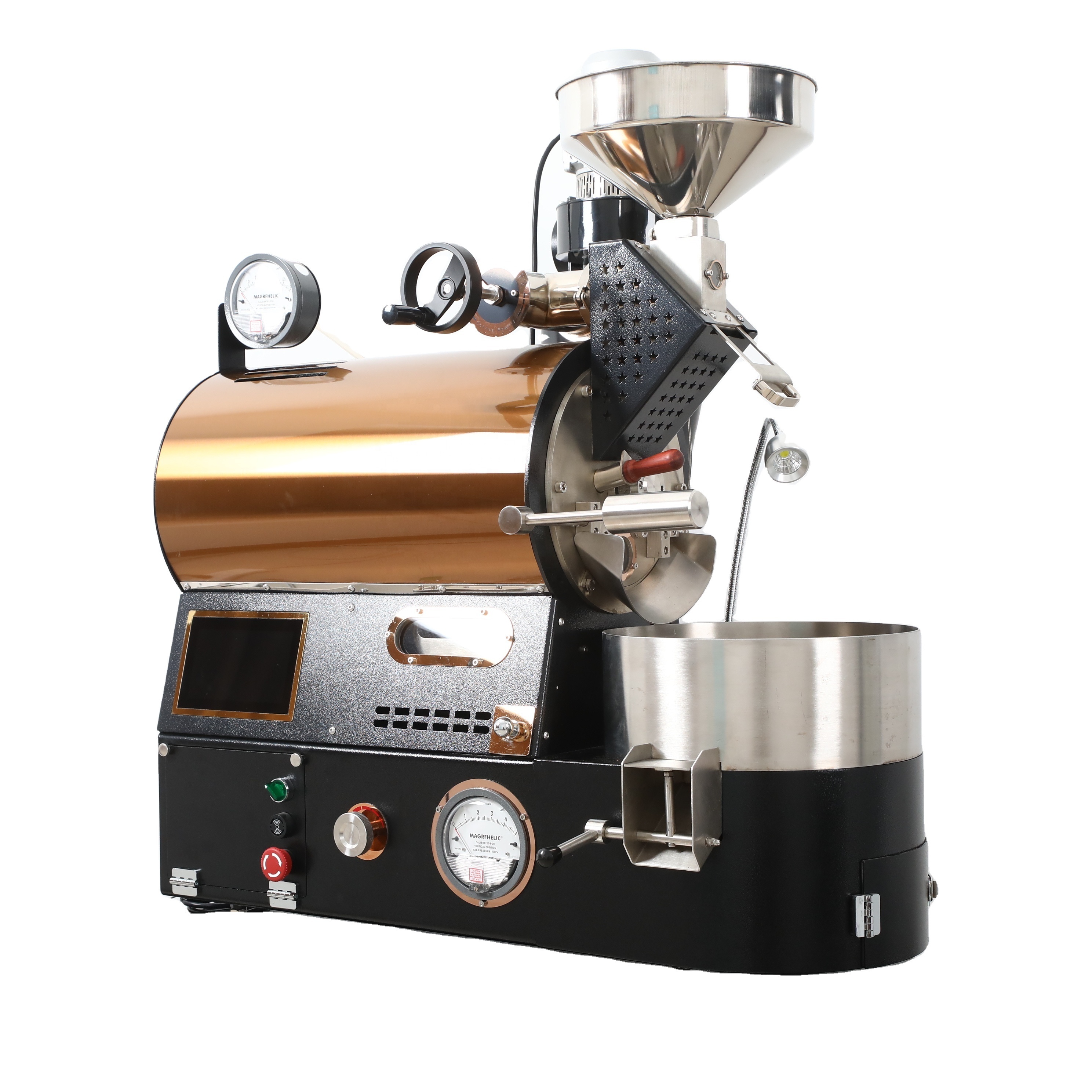

Wintop roaster coffee machine 1kg with Siemens LCD Touchscreen control system gas and electric heating roaster machine coffee
Heating type or Electric heating type for option
No matter you are a coffee loving person, or coffee roasting new learner, This mini coffee roaster machine must be your best choice. 1kg coffee roaster is suitable for home use or small coffee shop,whose capacity up to 1500g/batch.The whole machine adopts laser cutting technology to to weld the whole frame,it is more durable than screws.Besides,it can achieve the output of baking curve by Artisan after connecting with PC with roaster though USB.
No matter you are a coffee loving person, or coffee roasting new learner, This mini coffee roaster machine must be your best choice. 1kg coffee roaster is suitable for home use or small coffee shop,whose capacity up to 1500g/batch.The whole machine adopts laser cutting technology to to weld the whole frame,it is more durable than screws.Besides,it can achieve the output of baking curve by Artisan after connecting with PC with roaster though USB.
WK-1 has been updated recently, the new model is with LCD touchscreen control panel. The whole control system have been combined into the controller, including air volume, fire power, drum speed control and alarm, make a record of roasting profile.
|
Wintop 1-2kg coffee roasting machine with Siemens LCD Touchscreen control system
|
|
|
||
|
Model
|
WK-1 (gas heating or electric heating type for option)
|
|
||
|
Controller Type
|
LCD touchscreen controller
|
|||
|
Heating Mode
|
Direct Fire & Semi hot air heating
|
|
||
|
Batch capacity
|
500-1500g
|
|
||
|
Capacity per hour
|
4kg-6kg
|
|
||
|
Voltage
|
Single Phase 220 V, 50/60 Hz
|
|
||
|
Heating type
|
Gas heating type
|
Electric heating type
|
||
|
Roasting Time/ batch
|
10-15 mins
|
10-15 mins
|
||
|
Cooling Time / batch
|
1-2 mins
|
1-2 mins
|
||
|
Gas consumption
|
1.2 KW.h/roast
|
0.4 Kg/Hr
|
||
|
Roaster Mimensions
|
96x63x92cm
|
|
||
|
Temperature Range
|
0-300°C
|
|
||
|
Weight
|
160 Kgs
|
|
||
|
Data Logger
|
USB
|
|
||
|
Certificate
|
CE/RoHS/EPR/ISO9001
|
|
||
Detailed Images
LCD Touchscreen controller
WK-1 has been updated recently, the new model is with LCD touchscreen control panel.
The whole control system have been combined into the controller, including air volume, fire power, drum speed control, timer and alarm.
It can also make a record of roasting profile.
Hot Air Pressure gauge
Controlling airflow is very important during the roast, Normally, we control airflow is only by manual damper. But once you forget
to clean up the exhaust pipe and exhaust fan motor in time, the dust and chaff may block the pipe or motor, or if you meet the bad
weather (like strong wind, heavy rain, etc.), you may not get exact pressure value by the manual damper.
Then the hot air pressure gauge can help you get the real airflow pressure value in any condition, that makes your roast more
precise.
to clean up the exhaust pipe and exhaust fan motor in time, the dust and chaff may block the pipe or motor, or if you meet the bad
weather (like strong wind, heavy rain, etc.), you may not get exact pressure value by the manual damper.
Then the hot air pressure gauge can help you get the real airflow pressure value in any condition, that makes your roast more
precise.
Gas pressure control
Gas pressure controls the fire flame strong or weak, we use the high quality gas meter and knob switch for controlling the gas volume to roaster.
Roaster drun
It is made of 304 food level stainless steel and mixing blades attaches inside the drum by TIG welding, clean and
low noise.
low noise.
Updated High Performance Burner
WK gas burner made in high quality and produces strong fire flame to fit different roasting requirements, fire flame can be
adjusted to weak or strong by adjusting the gas gauge knob. It is can be converted from LPG ( NG) to NG (LPG) by replacing
nozzles. wherever you want to use LPG or move to a place for NG,WK gas roasters follow up you in roasting anywhere.
adjusted to weak or strong by adjusting the gas gauge knob. It is can be converted from LPG ( NG) to NG (LPG) by replacing
nozzles. wherever you want to use LPG or move to a place for NG,WK gas roasters follow up you in roasting anywhere.
Drum Speed Control and Data Logger
WK-2 is designed with the drum speed control and data logger. We use the Japan brand variation speed motor for drum speed adjustment which is more durable, the adjust range is 0-100 RPM, it helps you develop more of your roasting skills.
The USB port is next to the drum speed control switch on back of the machine, the computer USB works with Artisan software for data logger function.
The USB port is next to the drum speed control switch on back of the machine, the computer USB works with Artisan software for data logger function.
Data logger
Available in data logger
Via USB port
or wireless bluetooth connection
it can be used in multi-languages
Can be connect with Artisan or Cropster
Packing & Delivery
Good Quality Durm Stainless Steel Coffee Roaster Gas LPG Coffe Roasting Machine For Sale
Packing Size: 110*70*85 cm
Packing weight:
160kg/180kg
